P0105

DTC P0105 - PRESSURE SENSOR CIRCUIT MALFUNCTION (P - S)

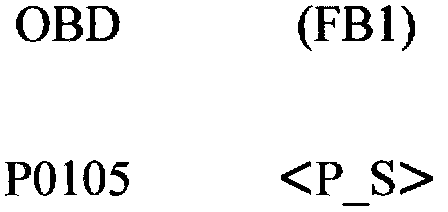

SUBARU SELECT MONITOR DISPLAY

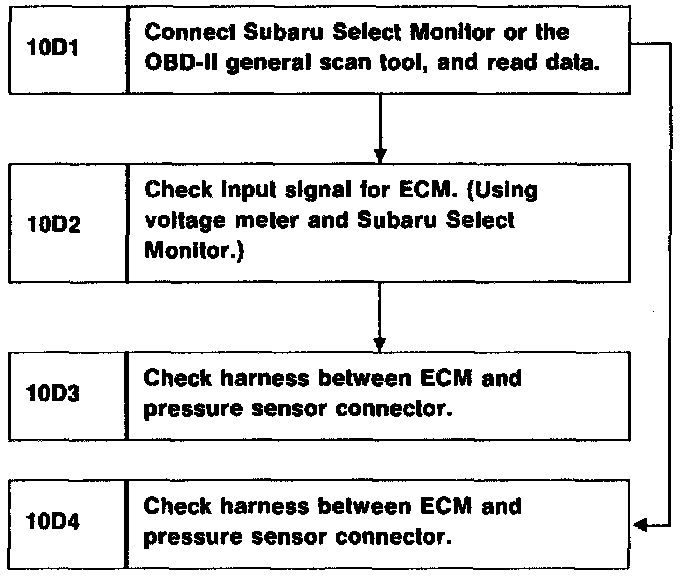

FLOW CHART

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

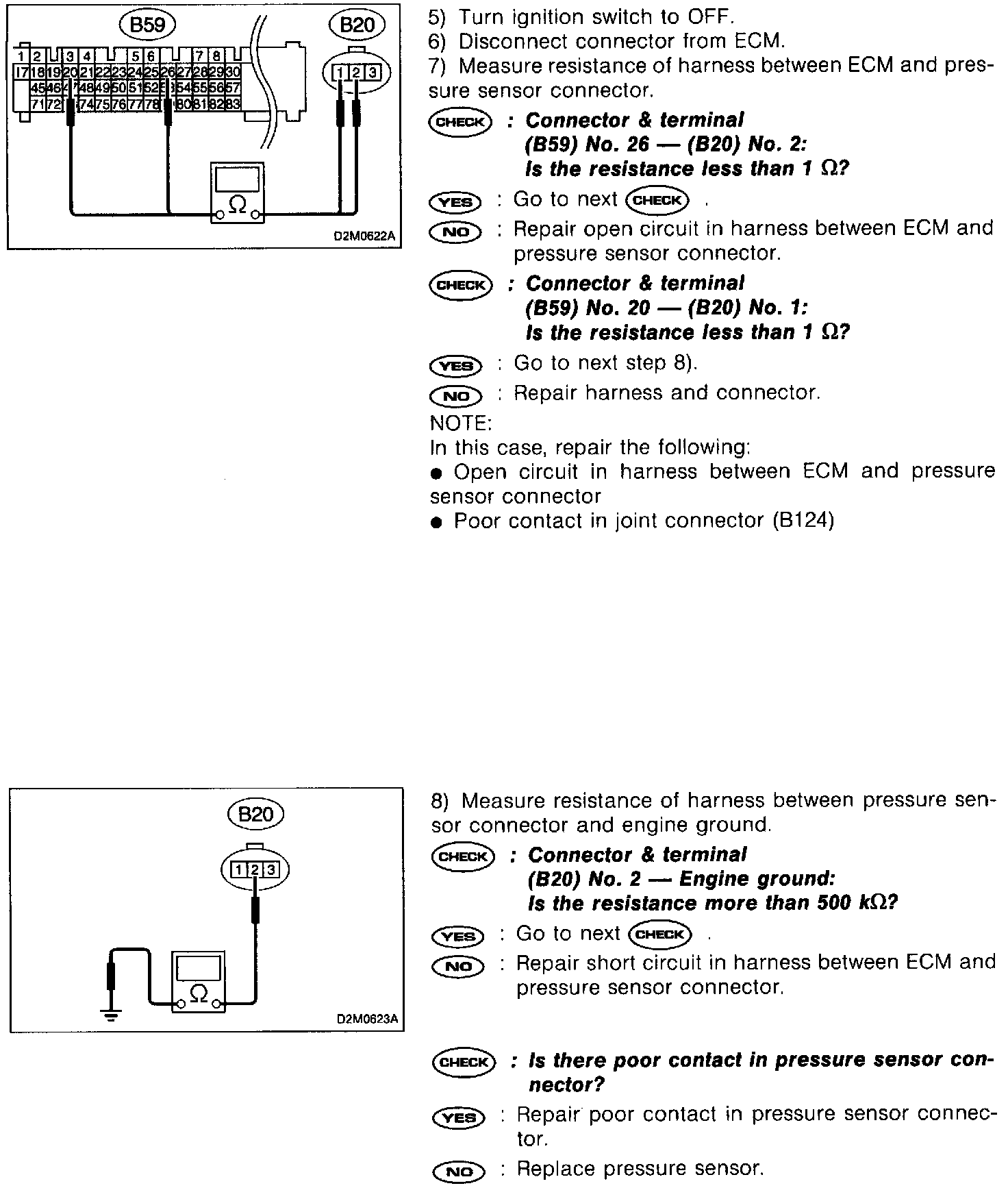

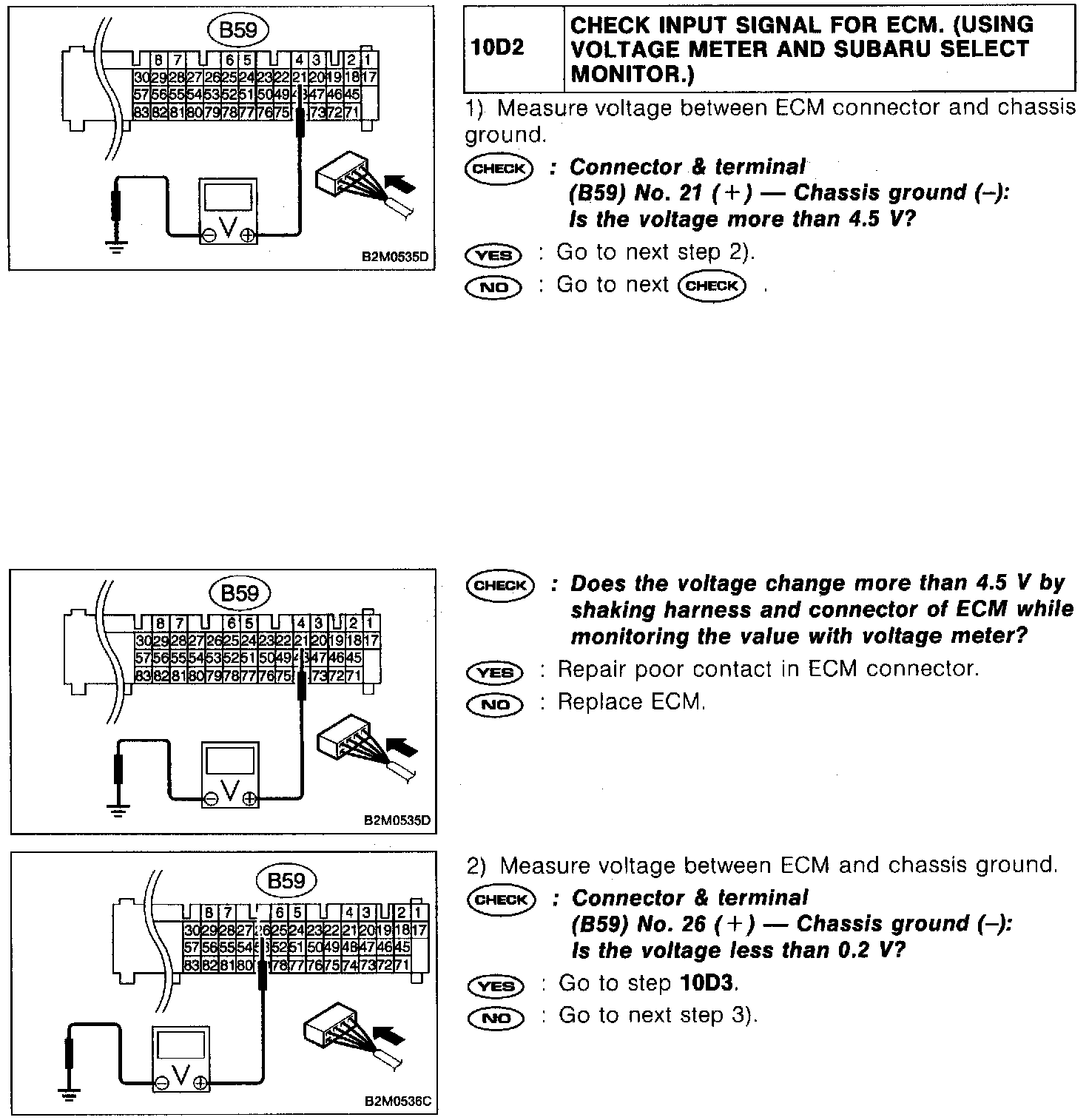

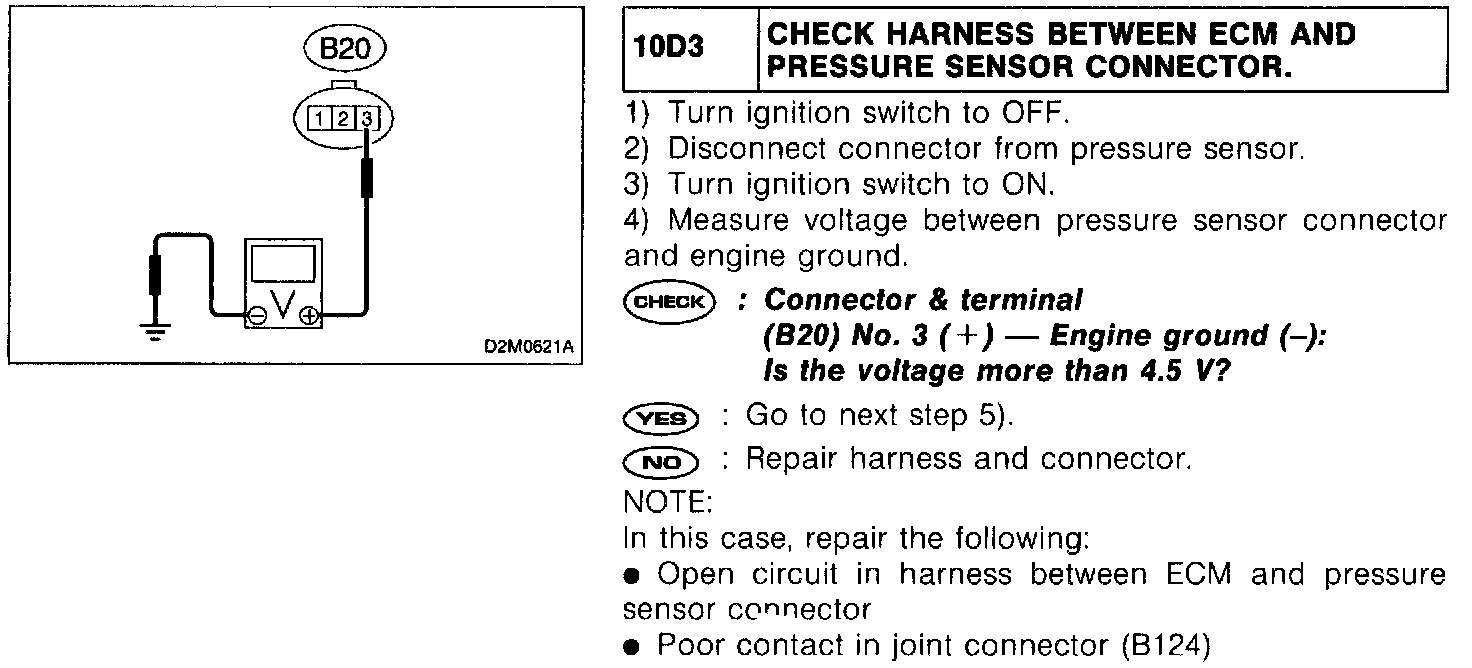

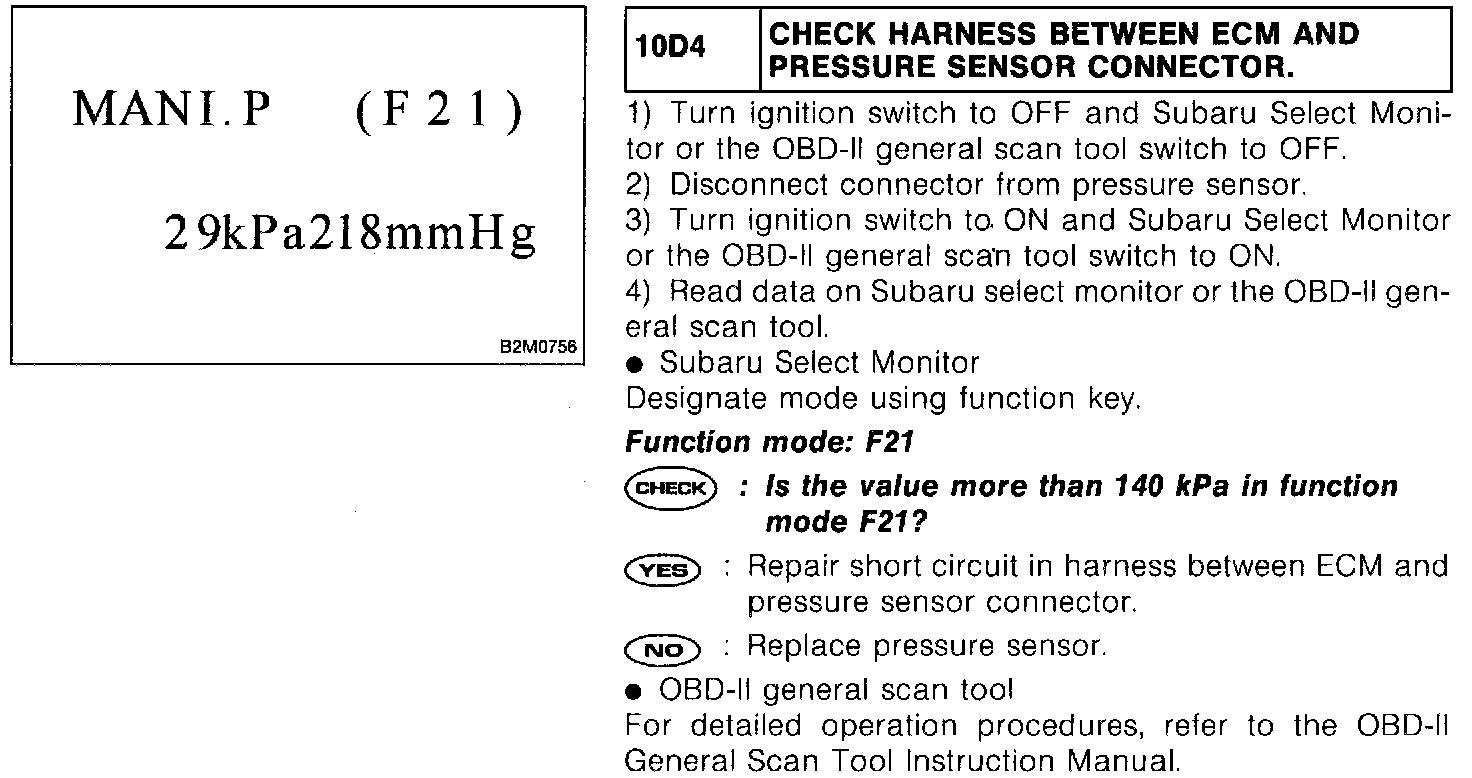

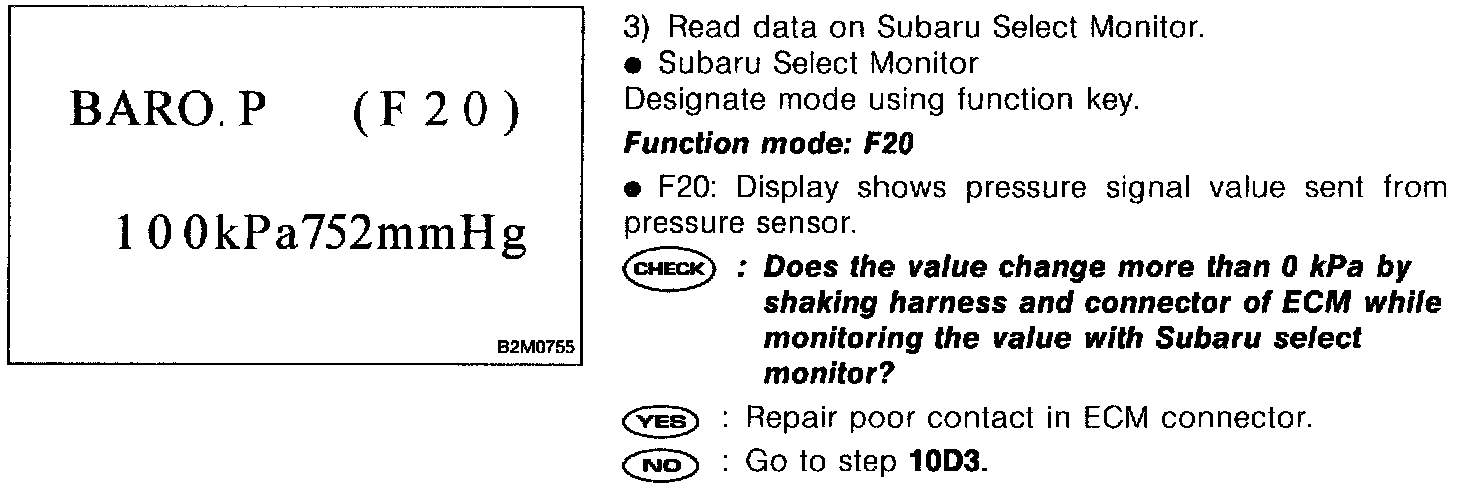

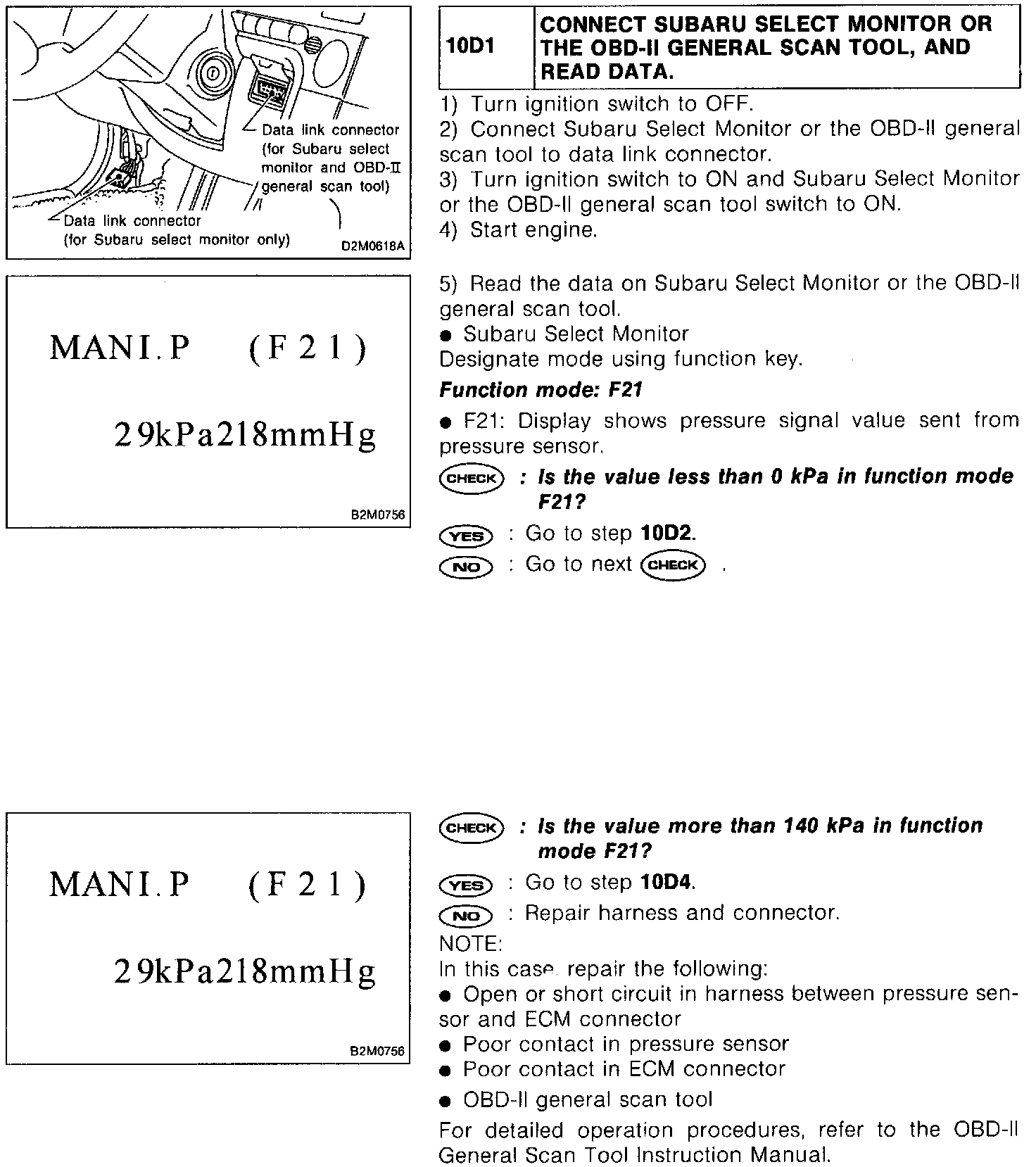

PROCEDURES
