P0100

DTC P0100 - MASS AIR FLOW SENSOR CIRCUIT MALFUNCTION (QA)

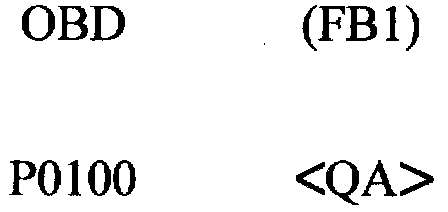

SUBARU SELECT MONITOR DISPLAY

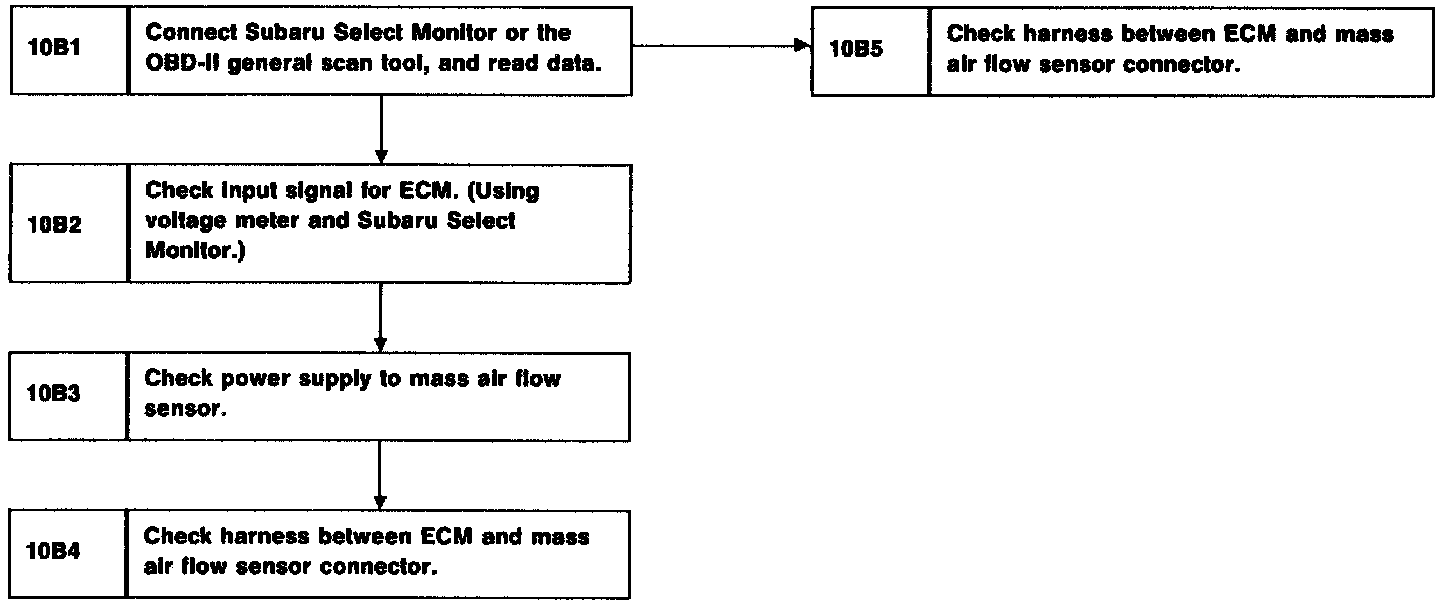

FLOW CHART

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

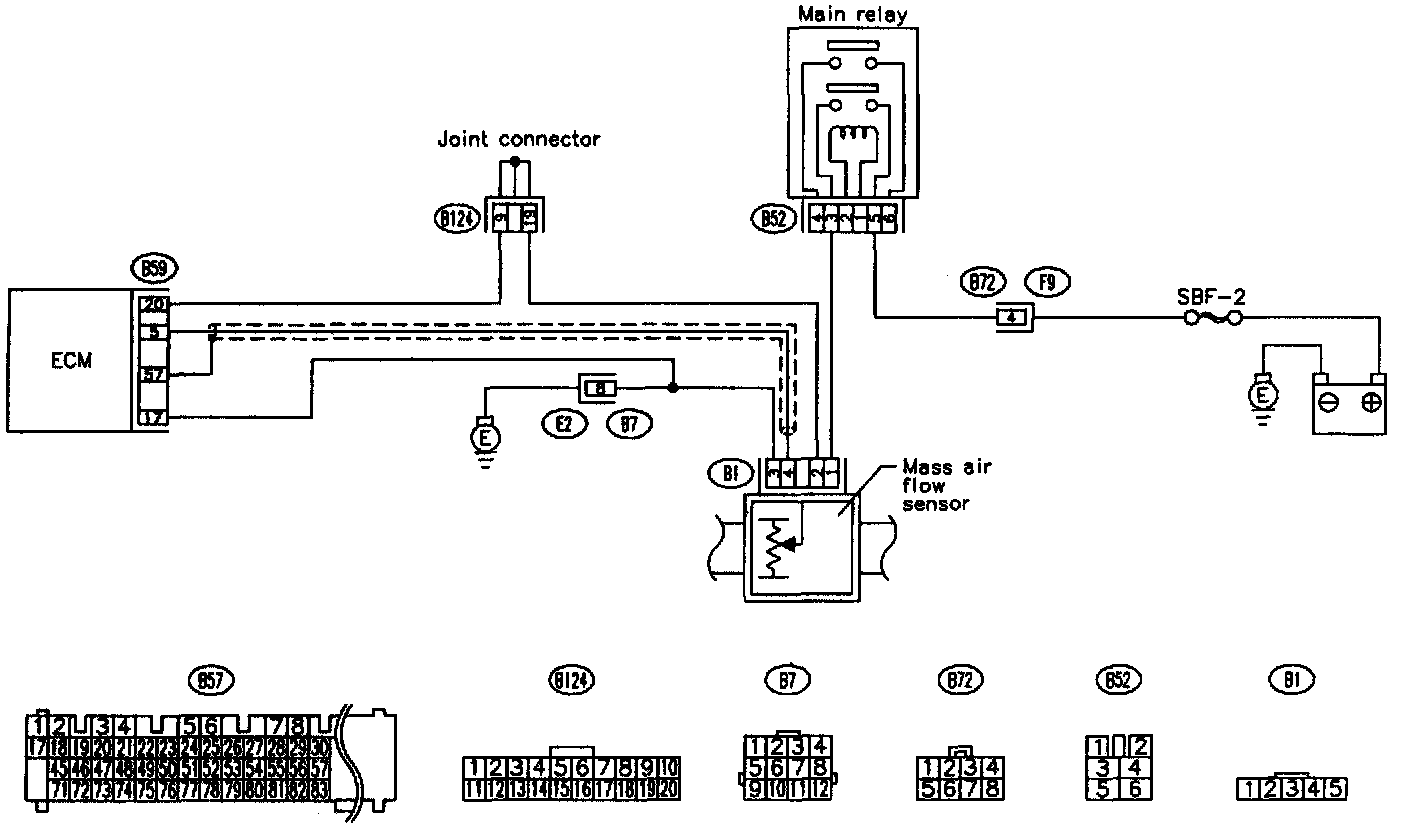

WIRING DIAGRAM

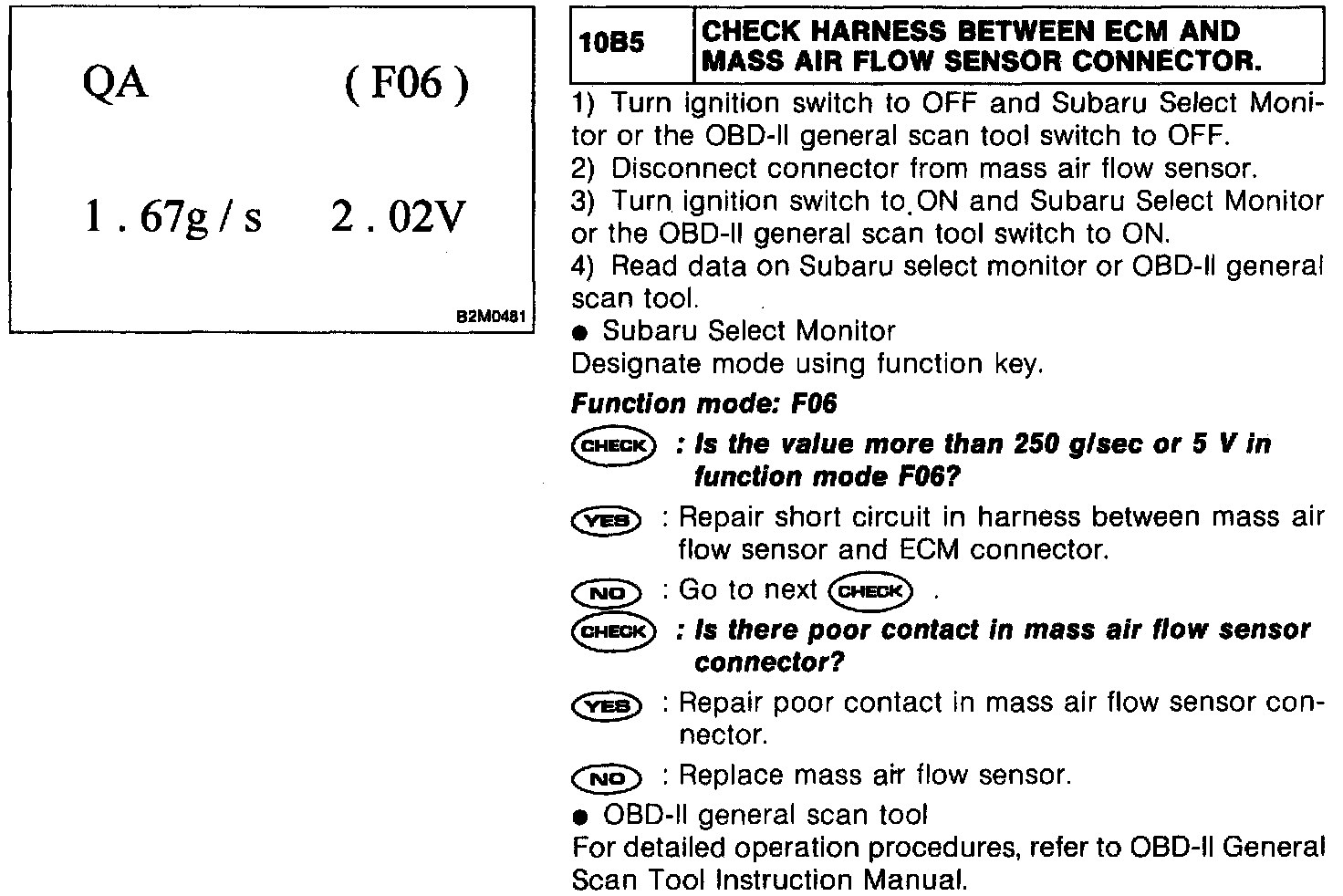

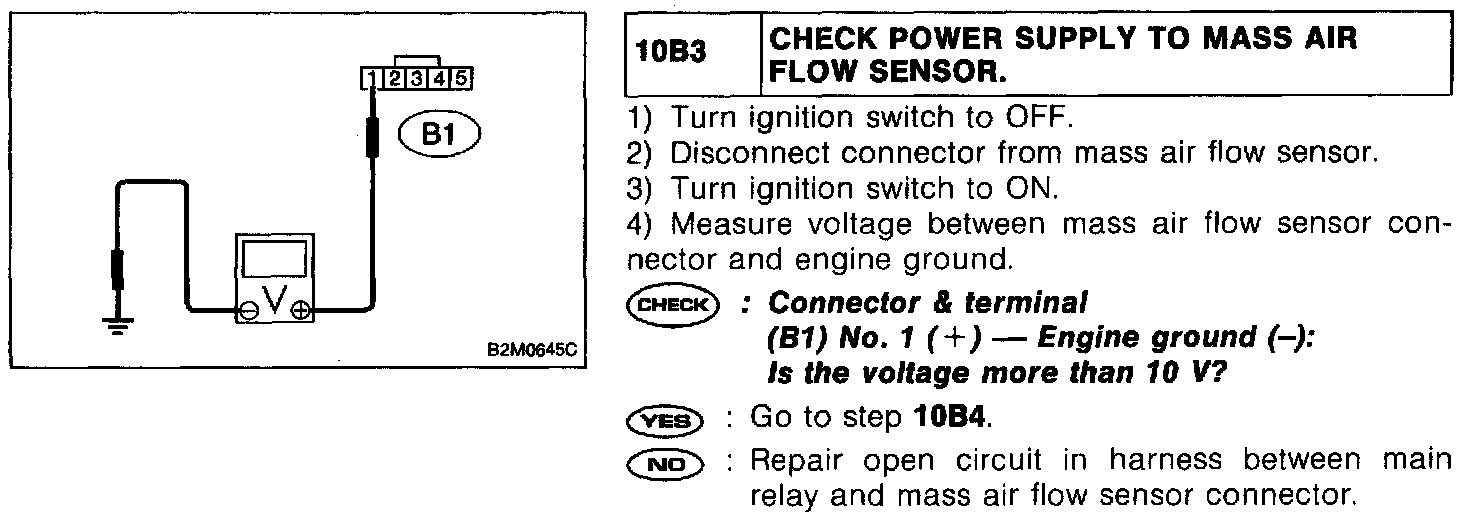

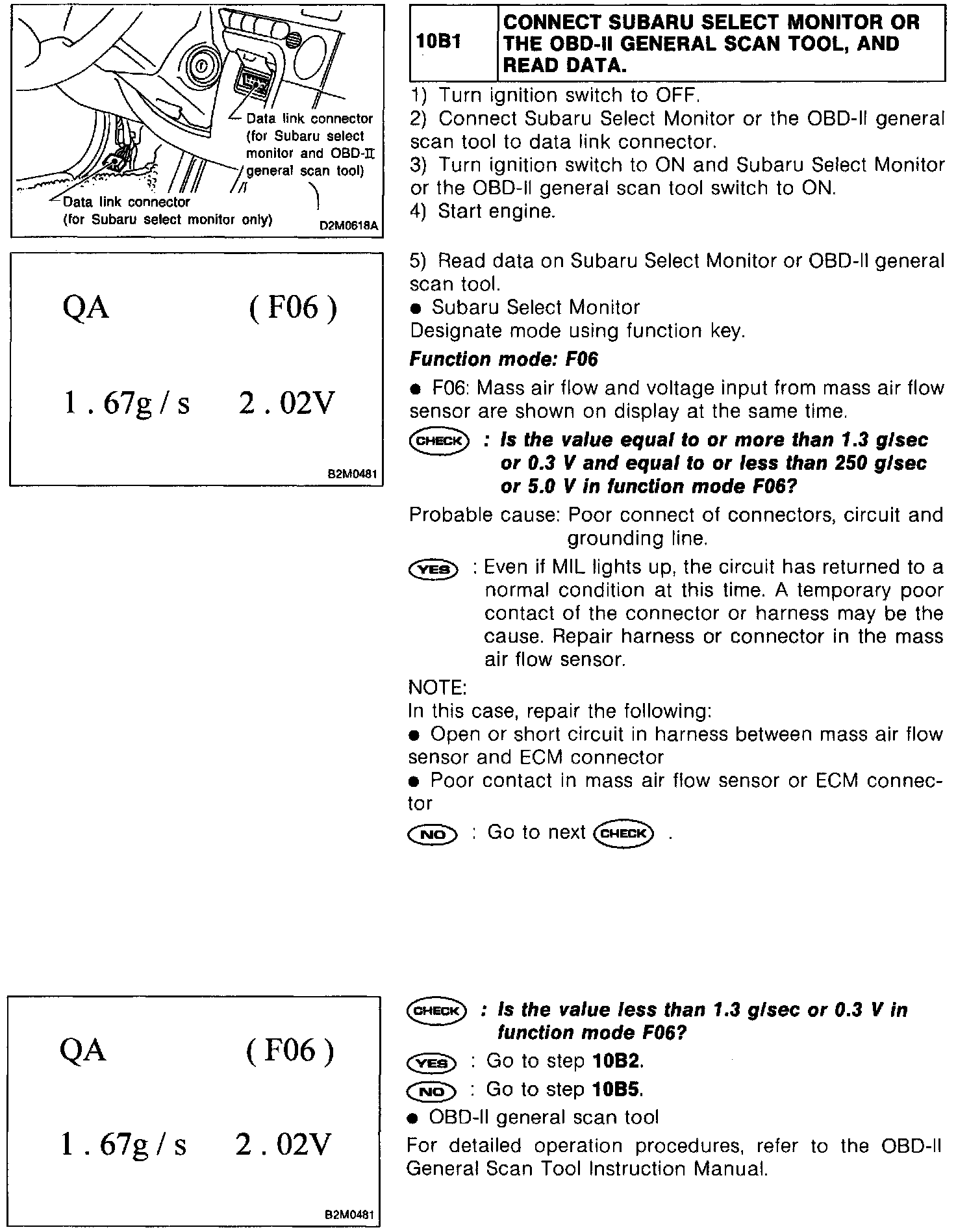

PROCEDURES
