DTC 00

1. Turn ignition switch to off position, then disconnect connector from ABS control unit.
2. Disassemble connector as follows:

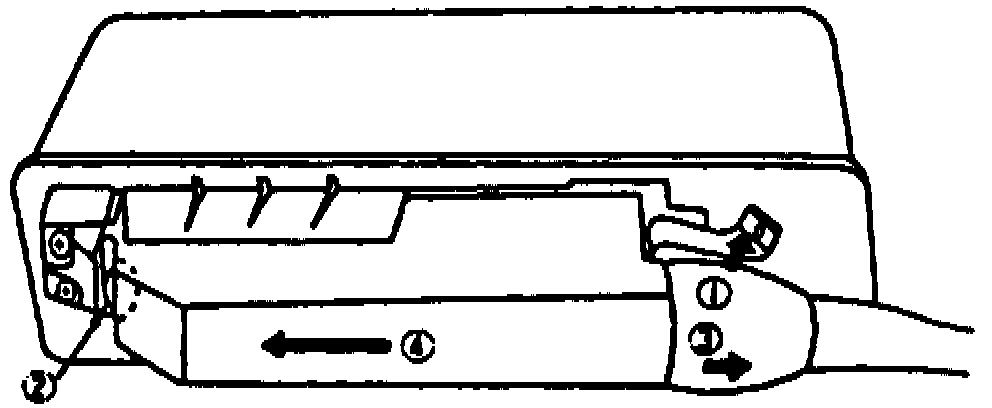

Fig. 16 ABS Control Unit Connector Disassembly:

a. While pushing 1, disconnect connector, Fig. 16.
b. Remove screw from portion 2, the move rubber boot 3 toward harness.
c. Slide cover 4 in direction shown by arrow and remove.
3. Turn ignition switch to on position, then measure voltage between control unit connector terminal 1 and ground. Voltage should be 10-12 volts.
4. Start engine, then measure voltage between control unit connector terminal 15 and ground. Voltage should be 13.5 volts.
5. Turn ignition switch to off position, then connect connector to ABS control unit.
6. Turn ignition switch to on position, then measure voltage between control unit connector terminal 15 and ground. Voltage should be 0 volt.
7. Measure resistance between control unit connector terminal 29 and ground. Resistance should be 1 Mohm.
