Subaru
>>
1996
>>
Outback [Legacy] AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Sensors and Switches - Wiper and Washer Systems
>>
Wiper Switch
>>
Testing and Inspection
>>
Rear Wipers
Rear Wipers
Fig. 8 Wiper Switch Connector Pin Identification:

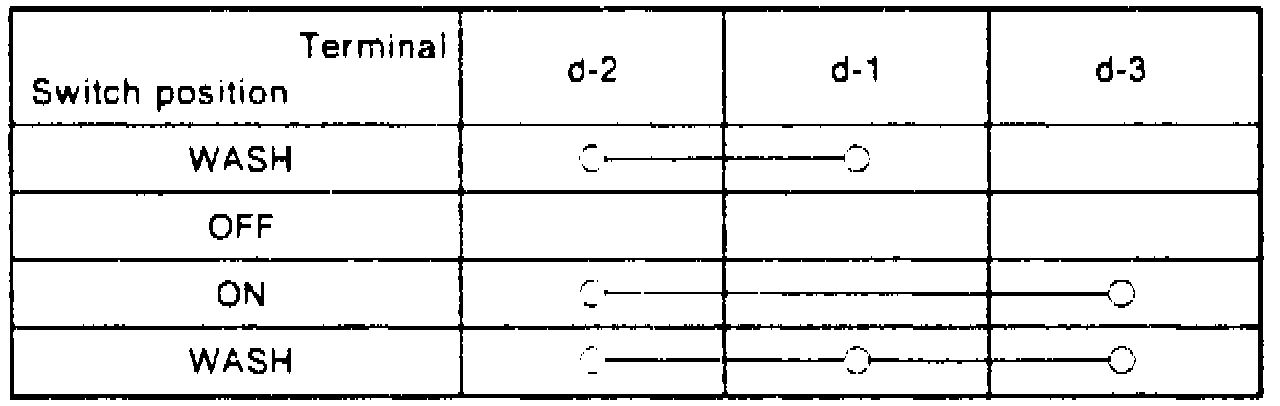

Fig. 13 Rear Wiper Switch Continuity Test:
Refer to
Fig. 8
, for connector pin identification and
Fig. 13
, for continuity test.
