D: Assembly

D: ASSEMBLY





1) Clean all parts before assembly.
2) Mount the following parts on the stay.





3) Mount the following parts on the gearshift lever.

CAUTION:
- Always use new 0-rings.
- Apply grease [NIGLUBE-R or equivalent] to the Inner surface of the bush.





4) Mount gearshift lever on the stay.
5) Install snap ring to the case of the stay.





6) Tighten with locking wire to the extent that the boot will not come off.

CAUTION: Always use new locking wire.





7) Insert the rod into the boot hole.
8) Connect rod to gearshift lever.

Tightening torque:
12 ± 3 Nm (1.2 ± 0.3 kg-m, 8.7 ± 2.2 ft-lb)

Rocking torque:
0.74 ± 0.25 Nm (0.075 ± 0.025 kg-m, 0.54 ± 0.18 ft-lb) or less





9) Mount the following parts on the rod.

CAUTION:

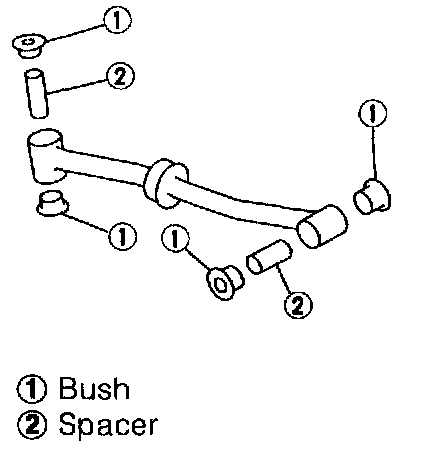

- Apply grease [NIGLUBE-R or equivalent] to inner and side surfaces of the bush when installing spacers.
- The rod should be installed in the direction shown in the figure.

10) Check that there is no excessive play and that parts move smoothly.
