B: Disassembly

B: DISASSEMBLY





1) Disconnect locking wires.





2) Remove rod from gearshift lever.





3) Disconnect snap ring.





4) Remove gearshift lever from stay.





5) Disconnect spring pin and bush from gearshift lever.
6) Remove boot from gearshift lever.

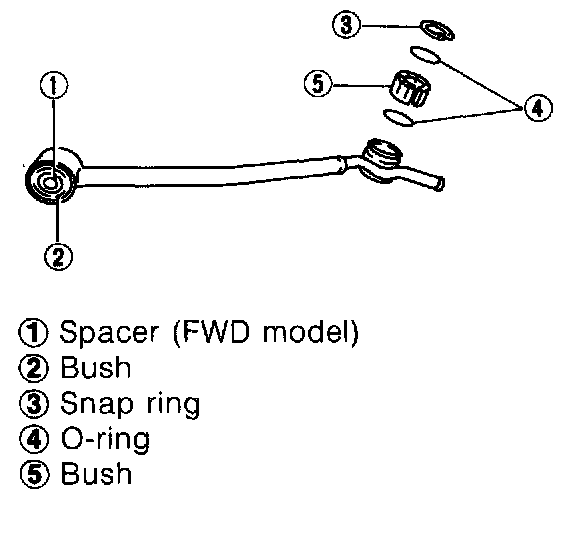

7) Remove the following parts from the stay.
