Drive Pinion Shaft

3. DRIVE PINION SHAFT





1) Install roller bearing onto drive pinion. Install washer (1) (33 x 50 x 5) using ST1, 5T2 and press.

ST1 499277100 BUSH 1-2 INSTALLER
ST2 499277200 INSTALLER





NOTE: When installing roller bearing (2), note its directions (front and rear) because knock pin hole (3) in outer race is offset.





2) Install thrust bearing (33 x 50 x 3) and needle bearing (30 x 37 x 23). Install driven shaft assembly (4).

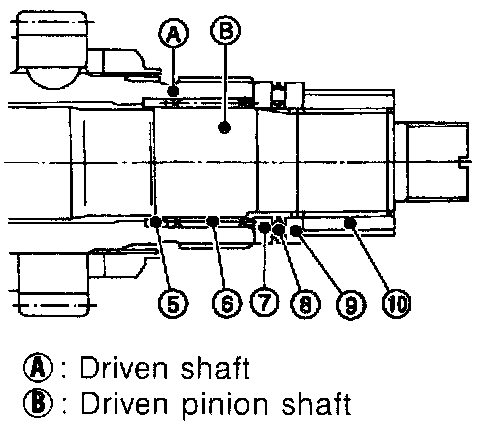

3) Install drive pinion collar (5), needle bearing (6) (25 x 30 x 20), adjusting washer No.2 (7) (25 x 36 x 4), thrust bearing (8) (25 x 37.5 x 3), adjusting washer No.1 (9) (25 x 36 x t) and differential bevel gear sleeve (10) in that order.

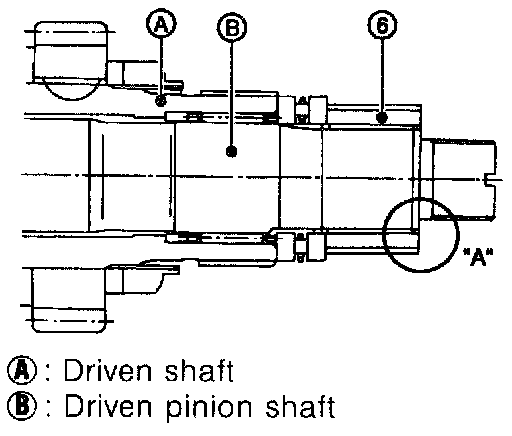

NOTE; Be careful because spacer must be installed in proper direction.
