E: Assembly

E: ASSEMBLY

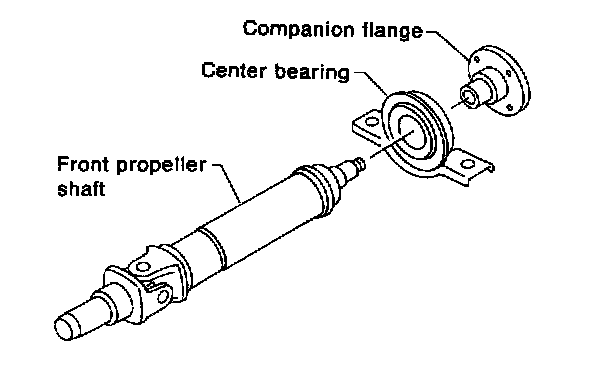

1) Install center bearing onto front propeller shaft.
2) Align marks and install companion flange.

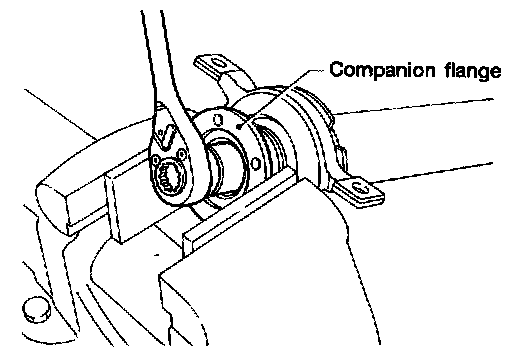

3) Tighten stake nut until center bearing is set in position.

CAUTION: Be sure to install new stake nut.

Tightening torque:
270 ± 25 Nm (27.5 ± 2.5 kg-m, 199 ± 18 ft-lb)

NOTE: Stake the nut after tightening.

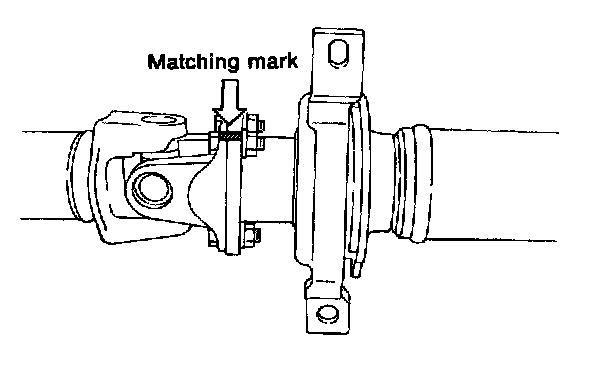

4) Align matching marks and connect front and rear propeller shafts.

Tightening torque:
27.9 ± 4.4 N.m (2.85 ± 0.45 kg-m, 20.6 ± 3.3 ft-lb)
