Drive/Propeller Shaft: Description and Operation

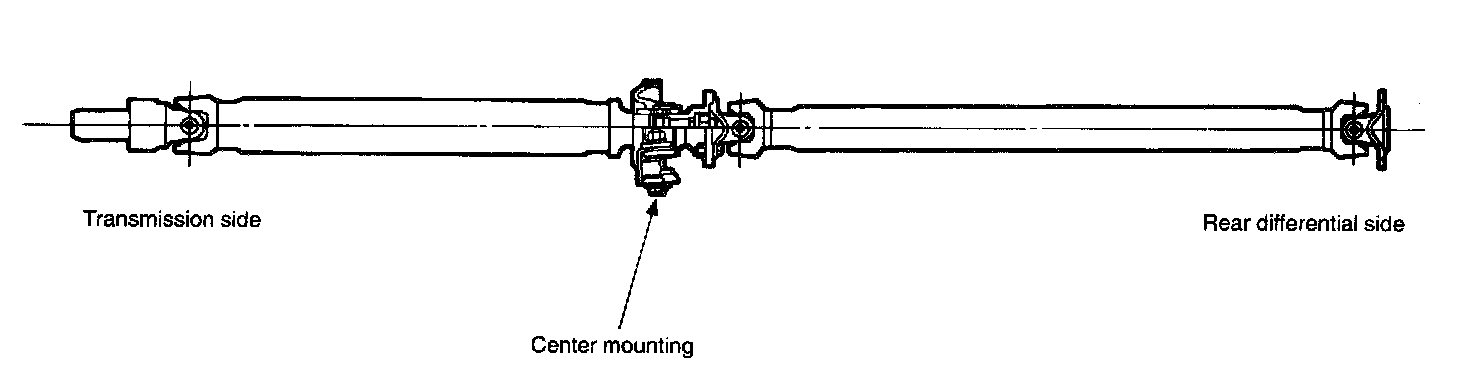

Propeller Shaft (AWD models)




The propeller shaft model utilizes a 2-piece design that is provided with three joints.
