E: Installation

E: INSTALLATION





1) Installation is in the reverse order of removal procedures.

CAUTION:
- Be careful not to bend clutch cable too much.
- Never fail to cover outer cable end with boot.
- Be careful not to kink accelerator cable.

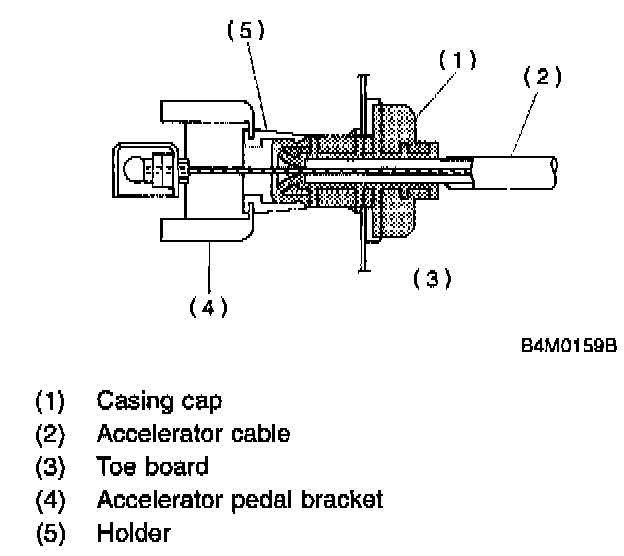

- Make sure that holder and casing cap are securely connected.

2) Adjustment after pedal installation.
