B: Removal

2. BRAKE AND CLUTCH PEDAL
1) Disconnect ground cable from battery.
2) Disconnect clutch cable from release lever.
3) Remove instrument panel lower cover from instrument panel.
4) Disconnect the following parts from pedal bracket.
(1) Operating rod of brake booster
(2) Electrical connectors (for stop light switch, etc.)
5) Remove clevis pin which secures pedal to push rod.

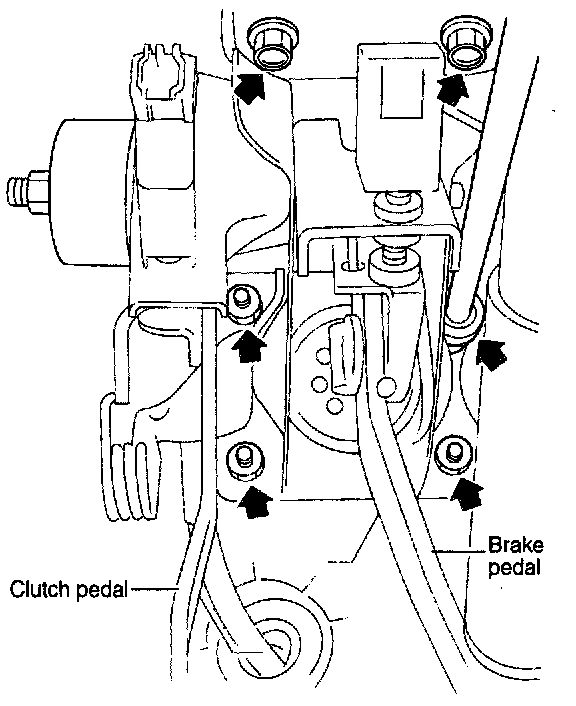

6) Remove bolts and nuts which secure brake and clutch pedals, and remove pedal bracket and clutch cable as a unit.

CAUTION: Before removing clutch cable from toe board, remove grommet. Slowly remove clutch cable, being careful not to scratch it.

7) Depress clutch pedal, disconnect clutch cable from clutch pedal.
