A: On-Car Service

2. CLUTCH PEDAL

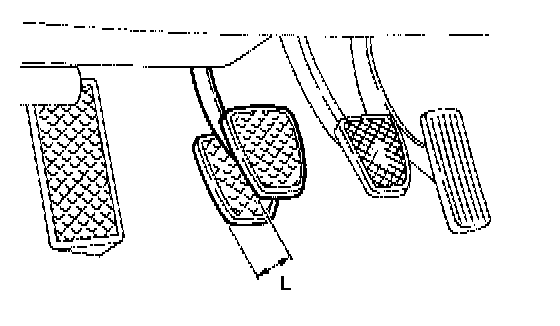

1) Check clutch pedal free play by operating pedal by hand.

Free play: L (At clutch pedal pad)
10 - 20 mm (0.39-0.79 in)

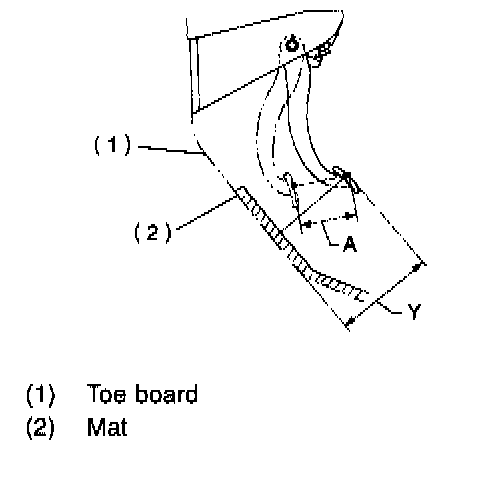

Pedal height: V
158 mm (6.22 in)
Pedal stroke: A
140 - 145 mm (5.51-5.71 in)

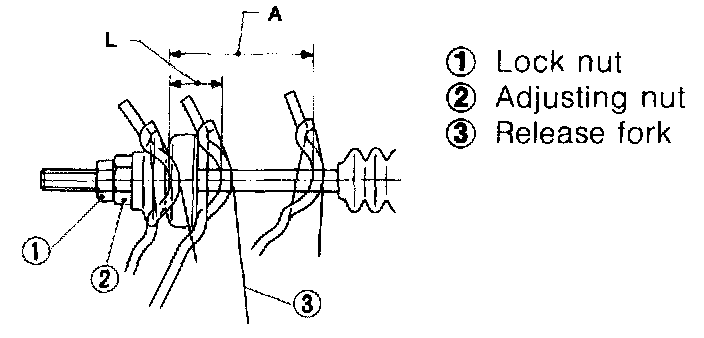

2) If it is not in specified value, adjust it by turning adjusting nut on engine side end of clutch cable.

Free play: L
3 - 4 mm (0.12- 0.16 in)
Full stroke: A
25.5 - 27 mm (1.004 - 1.063 in)

3) Apply grease to connecting portion of clutch pedal and clutch cable.

Lock nut tightening torque:
5.9 ± 1.5 Nm (0.60 ± 0.15 kg-m, 4.3 ± 1.1 ft-lb)
