B: Installation

B: INSTALLATION

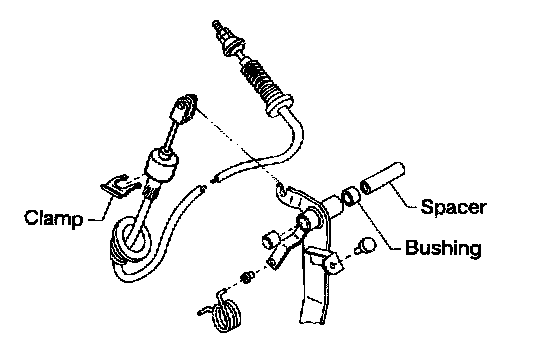

1) Clean clutch pedal fitting hole, and apply grease. Connect clutch cable to clutch pedal.
2) Fit clutch pedal to pedal bolt, and connect clutch cable to bracket with clamp.
3) Connect clutch cable end to pedal end.
4) Connect clutch cable from release lever.
5) Install grommet to toe board.
6) Adjustment after cable installation
