D: Assembly

D: ASSEMBLY





1) Clean all parts before assembly.
Apply grease [NIGLUBE-R or equivalent].

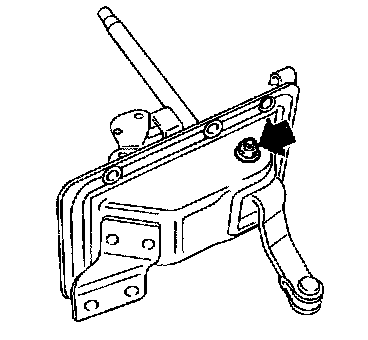

2) Assemble selector lever to the plate.
3) Insert the bolt and tighten the flange nut to the specified torque.

Tightening torque (Flange nut):
12 ± 3 Nm (1.22 ± 0.31 kg-m, 89 ± 2.2 ft-lb)

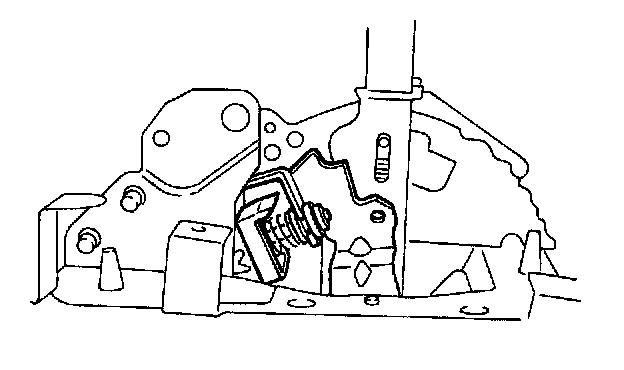

4) Assemble detention spring, shift-lock solenoid and "P" position switch.

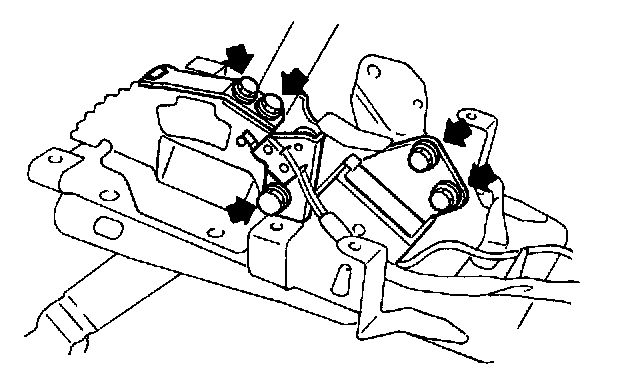

5) Adjust the position of shift-lock plate and solenoid. Then, tighten bolts.

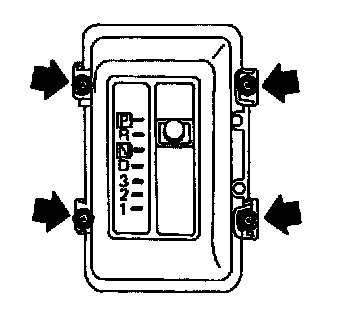

6) Assemble indicator to the plate

Tightening torque:
1.6 ± 0.4 Nm (0.163 ± 0.041 kg-m, 1.18 ± 0.30 ft-lb)

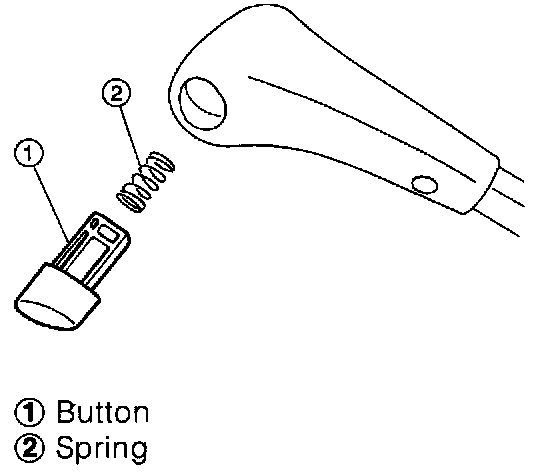

7) Assemble the following parts to the grip.

CAUTION: Apply grease on sliding surfaces of the following parts.

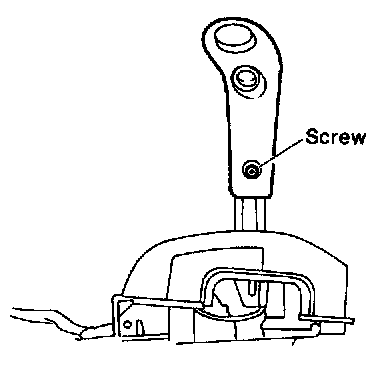

8) Assemble the grip to the selector lever.
9) After completion Of fitting, transfer selector lever to range "P" "1", pressing the button of the grip; then check whether the indicator and select lever agree, whether the pointer and position mark agree and what the operating force is.
