B: Disassembly

B: DISASSEMBLY





1) Remove grip from selector lever.
2) Remove indicator from plate.

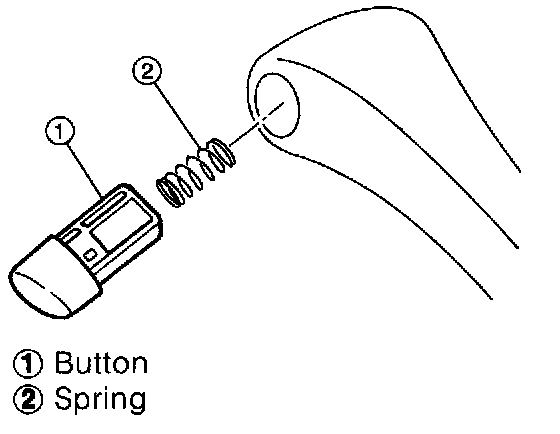

3) Remove the following parts from the grip.

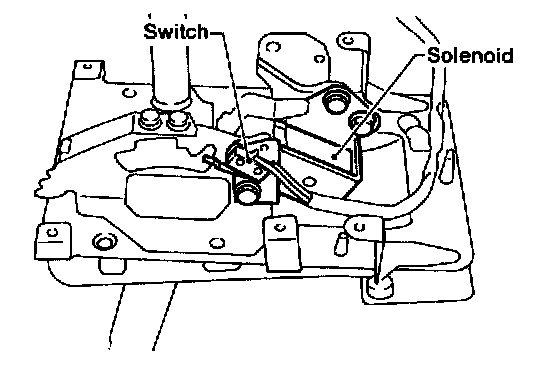

4) Remove shift-lock solenoid and "P" position switch.

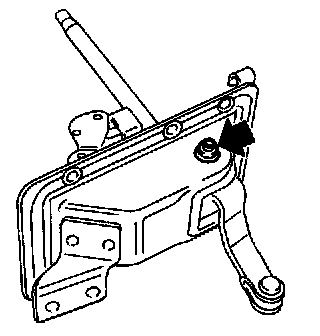

5) Remove the bolt to take off the selector lever from the plate and remove selector lever from the plate.

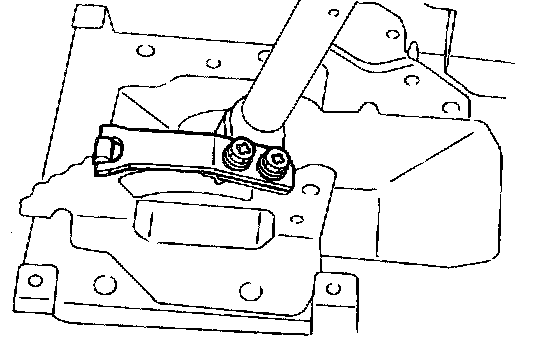

6) Remove lock plate.
7) Remove selector lever from the plate.





8) Remove detention spring.
