A: Removal

A: REMOVAL
1) Remove the cable.





(1) Prior to removal, set lever to "N" position.

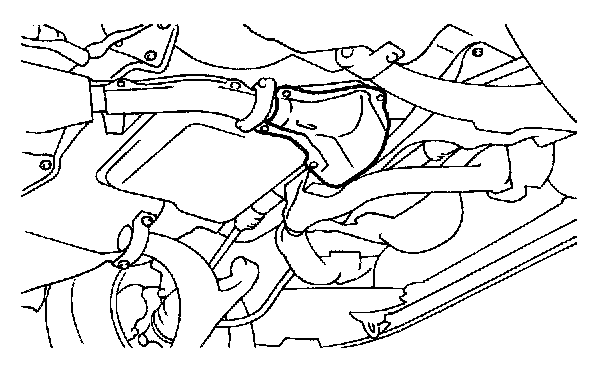

(2) Remove front exhaust pipe.

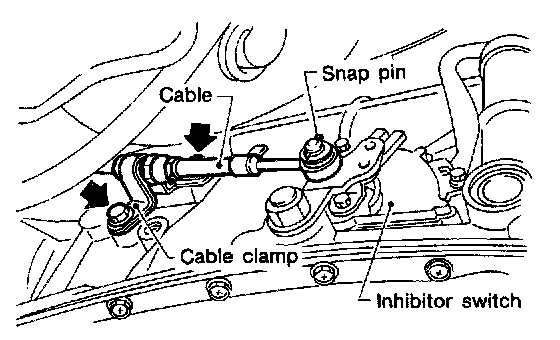

(3) Separate cable from transmission lever.
(4) Remove clamp from transmission case.

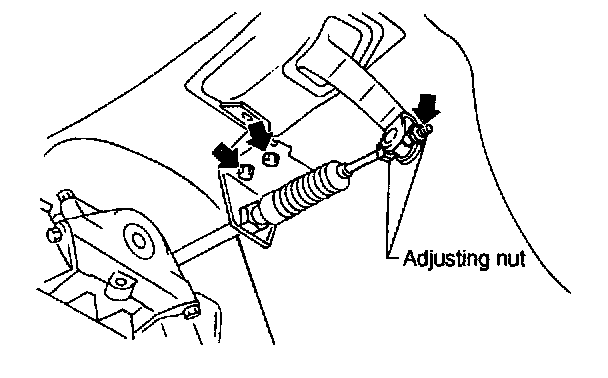

(5) Disconnect cable from selector lever and then remove cable bracket.





2) Remove console box.

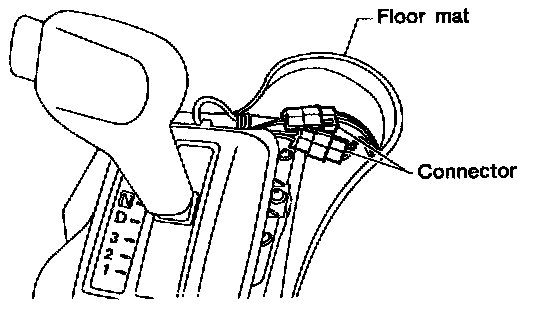

3) Disconnect the connectors.

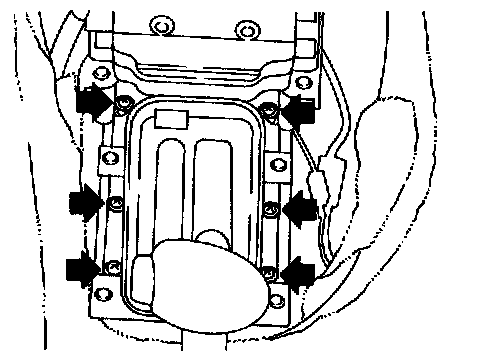

4) Remove the screws to take off the plate from the body.
