A6 - Vehicle Height Sensor

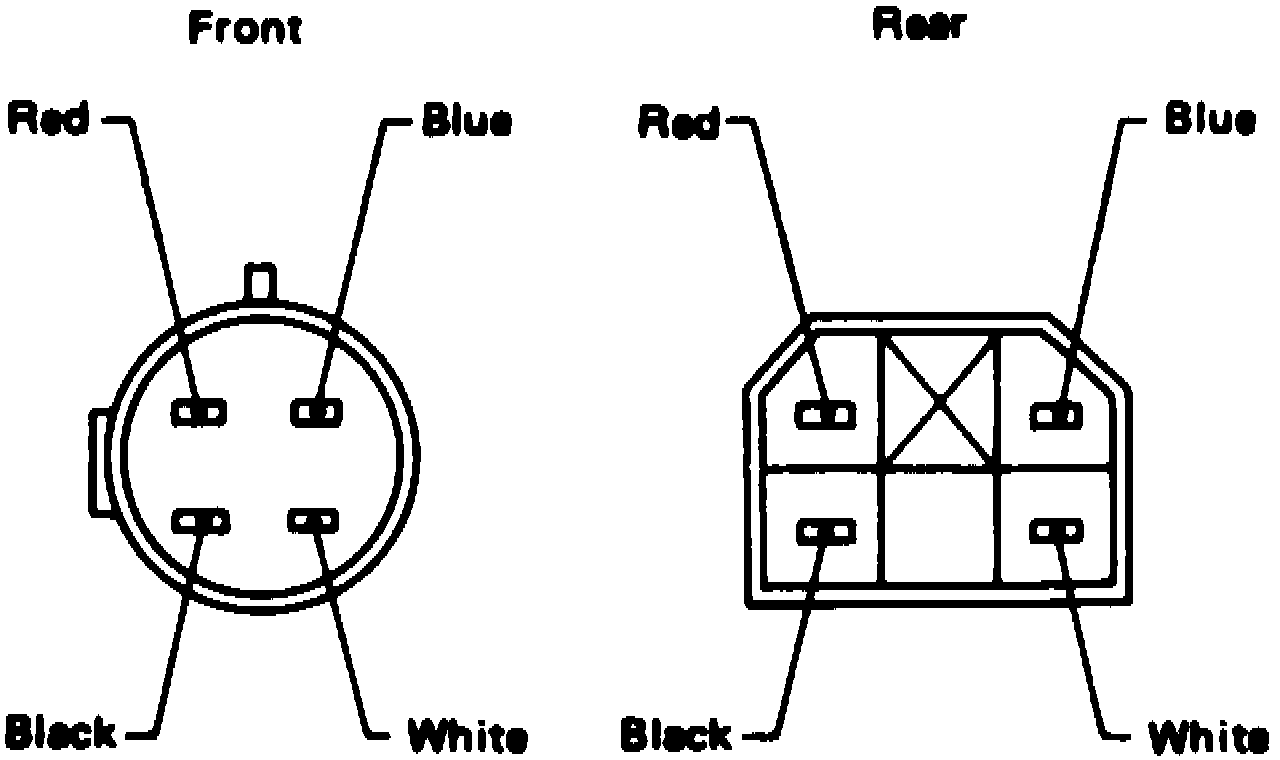

Fig. 2 Vehicle Height Sensor Terminal Identification:

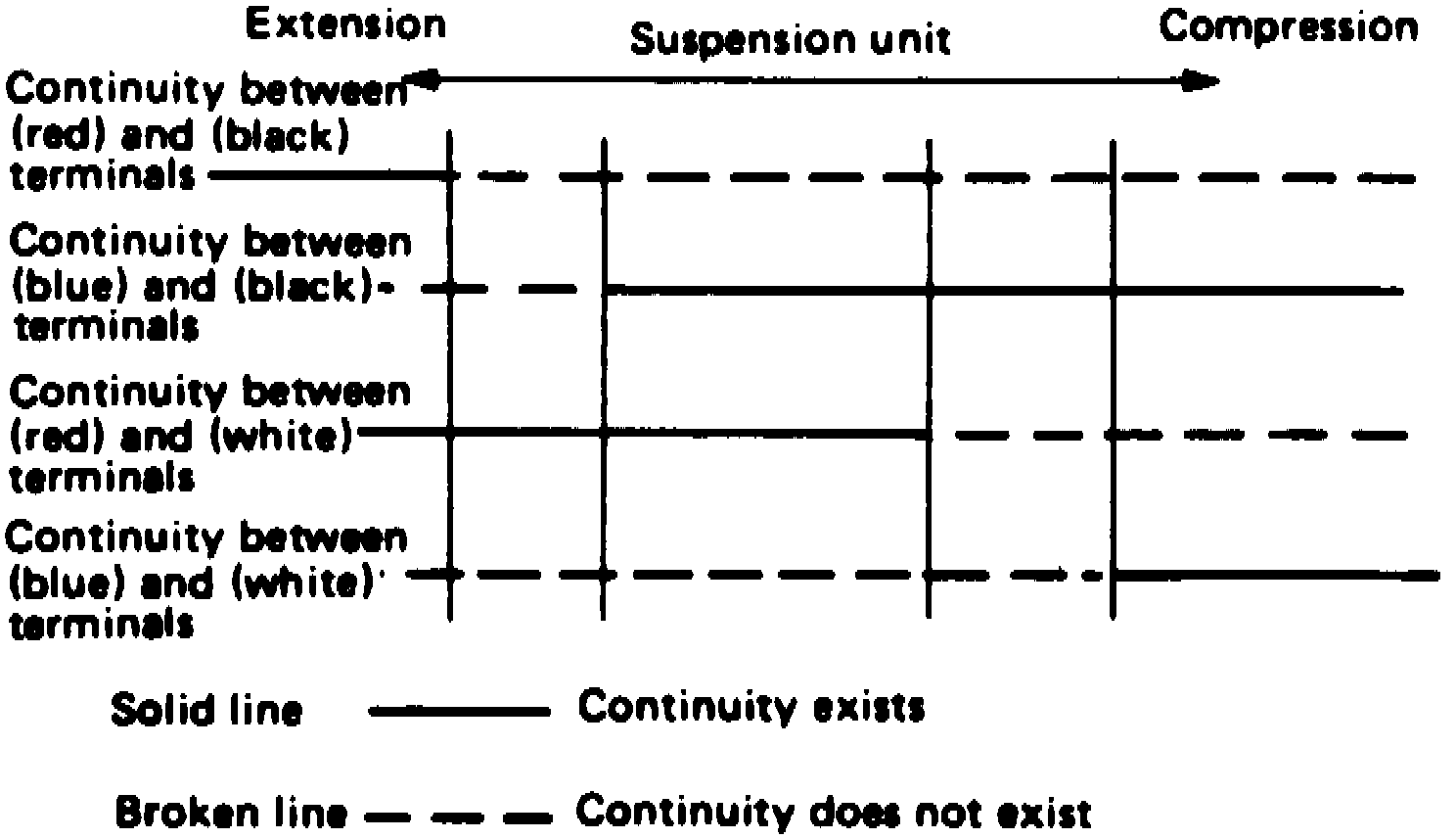

Fig. 3 Vehicle Height Sensor Continuity Chart:

Compress and extend from or rear suspension assembly, then check for continuity between suspension assembly harness terminals, Fig. 2. Continuity should be as described, Fig. 3.
