A12 - Compressor Relay

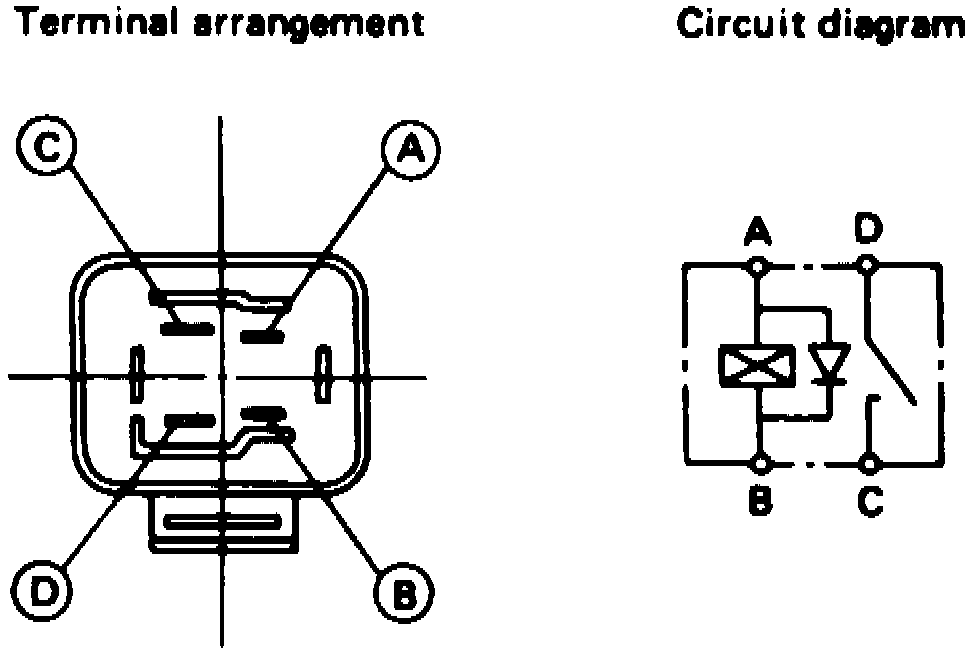

Fig. 4 Compressor Relay Terminal View:

Connect a suitable 12 volt source to terminal A, and ground terminal B, Fig. 4. Check that continuity exists between terminals C and D. Disconnect 12 volt source and check that no continuity exists between terminals C and D. Replace relay if continuity checks are not as specified.
