Removal

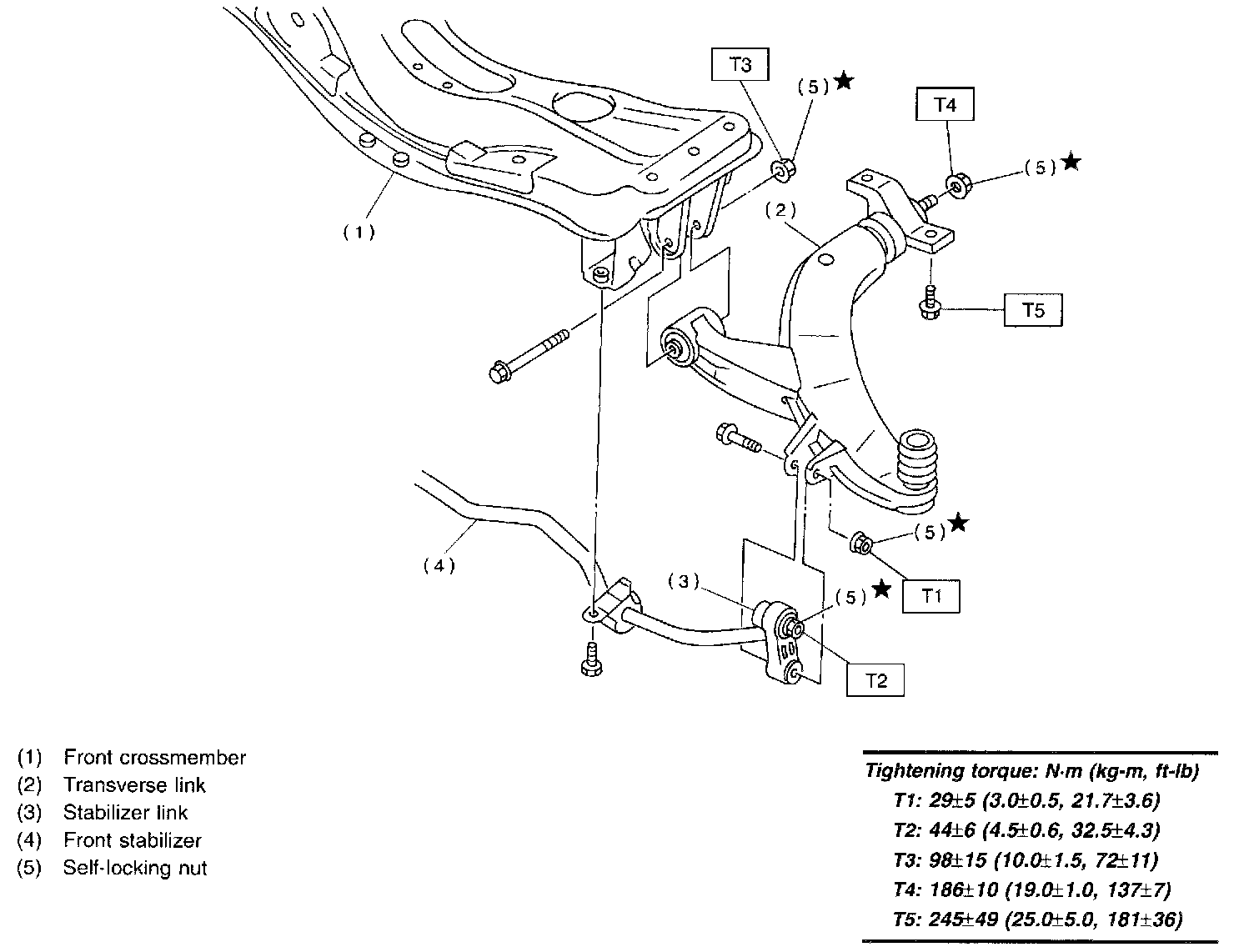

REMOVAL





1) Disconnect stabilizer link from transverse link.
2) Remove bolt securing ball joint of transverse link to housing.





3) Remove nut (do not remove bolt.) securing transverse link to crossmember.
4) Remove two bolts securing bushing bracket of transverse link to vehicle body at rear bushing location.





5) Extract ball joint from housing.
6) Remove bolt securing transverse link to crossmember and extract transverse link from crossmember.
