Harness Locations
Harness Locations

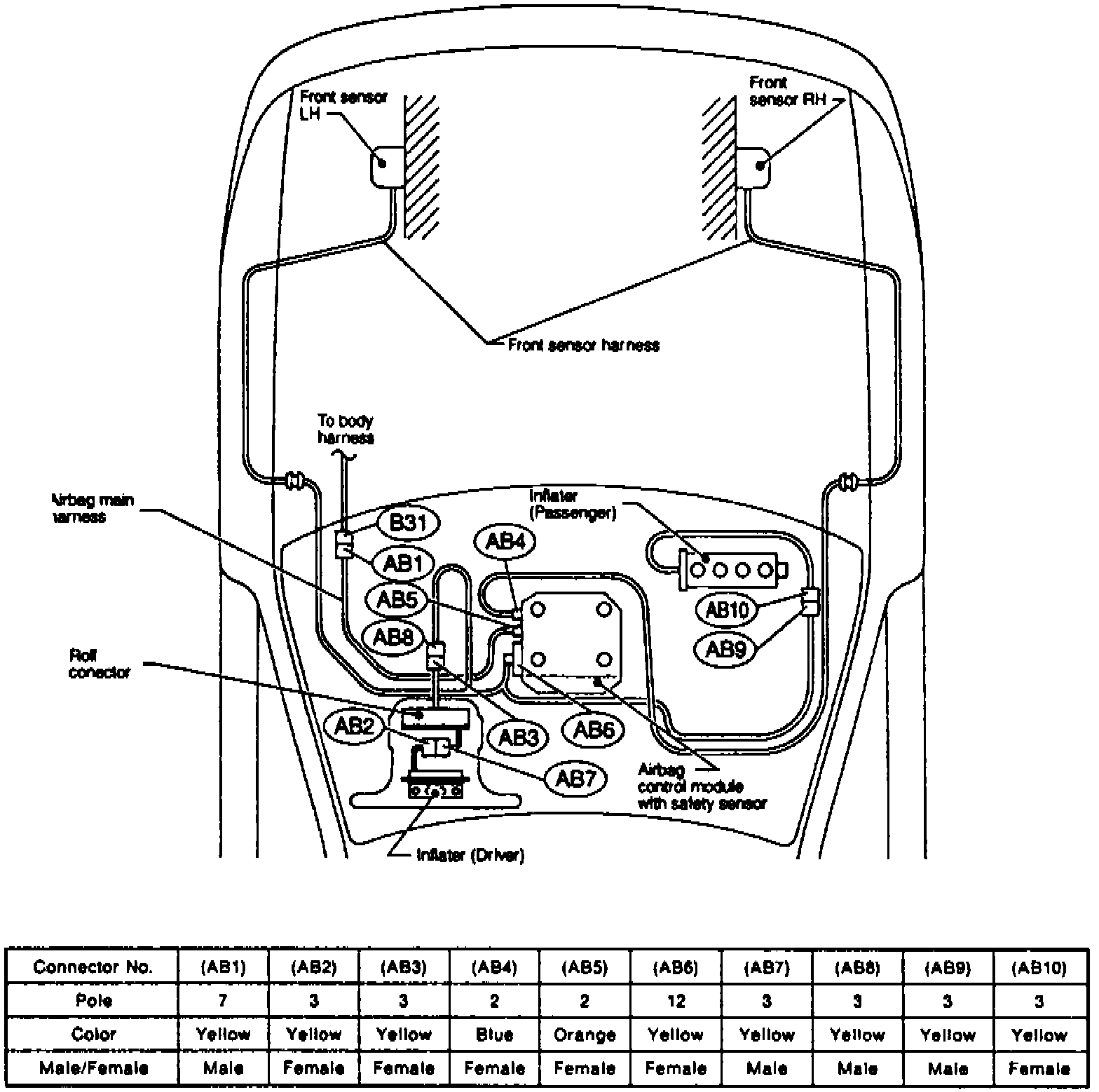

Fig. 21 SRS Wiring Harness Connector Locations:
Refer to
Fig. 21
, for system wiring harness locations.
