Wiper Relay: Testing and Inspection

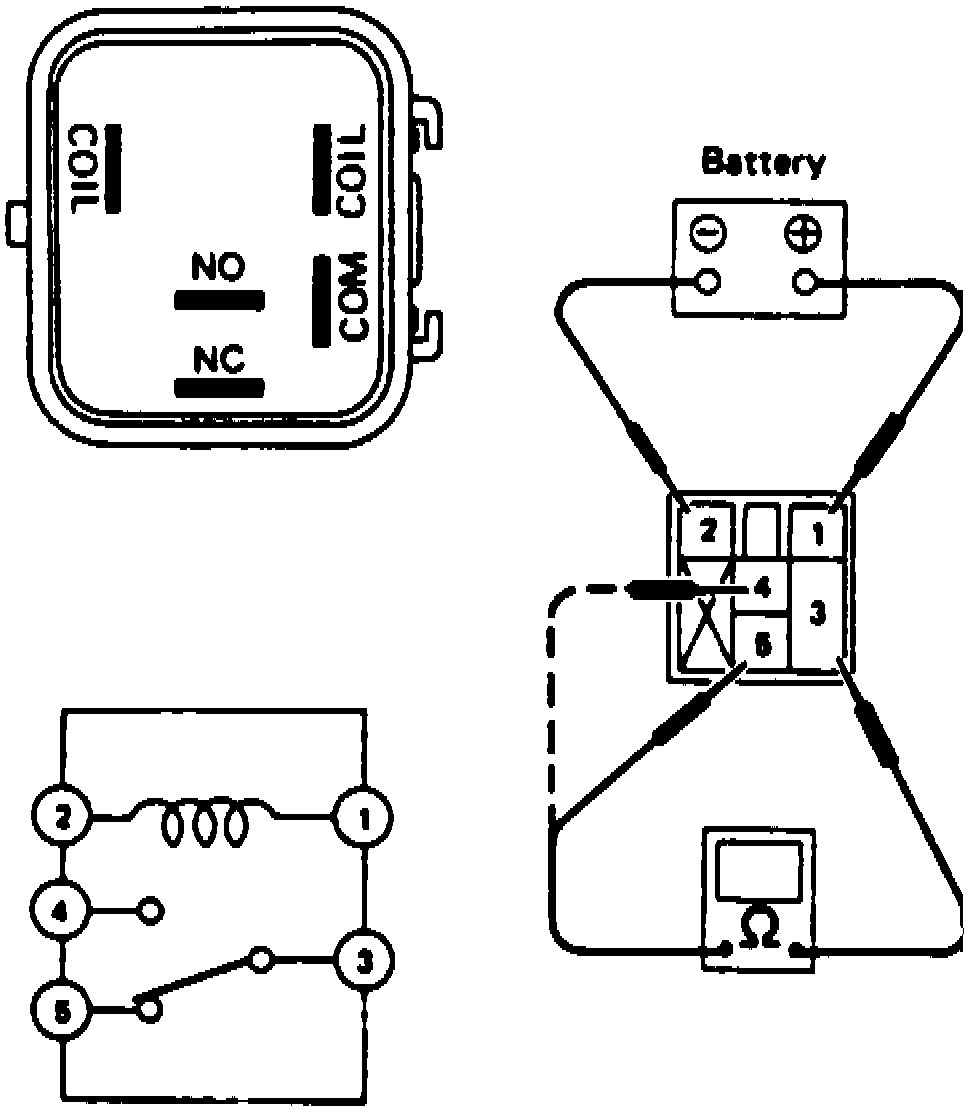

Fig. 15 Rear Wiper Relay Connector Pin Identification:

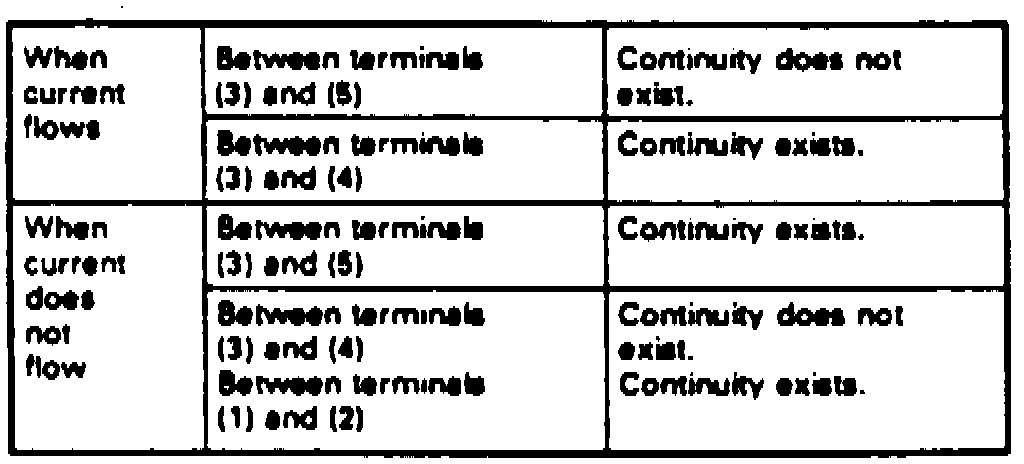

Fig. 16 Rear Wiper Relay Continuity Test:

Refer to Fig. 15, for connector pin identification and Fig. 16, for continuity test.
