Mode F06, Engine Speed

MODE F06 ENGINE SPEED (EREV)





Condition
Measure with Engine operating at constant speed.

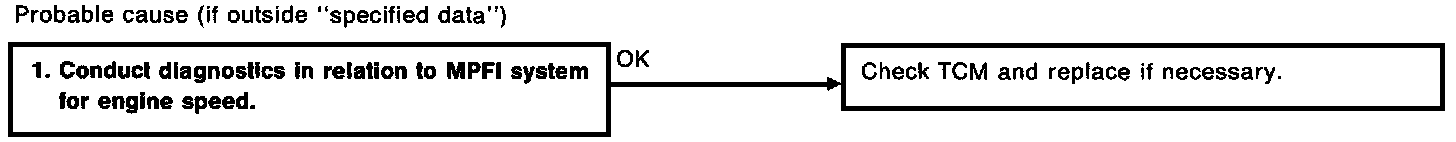

Specified Data
Same as Tachometer reading (in Combination Meter)
