Transmission Control Systems: Locations

ELECTRICAL COMPONENTS LOCATION

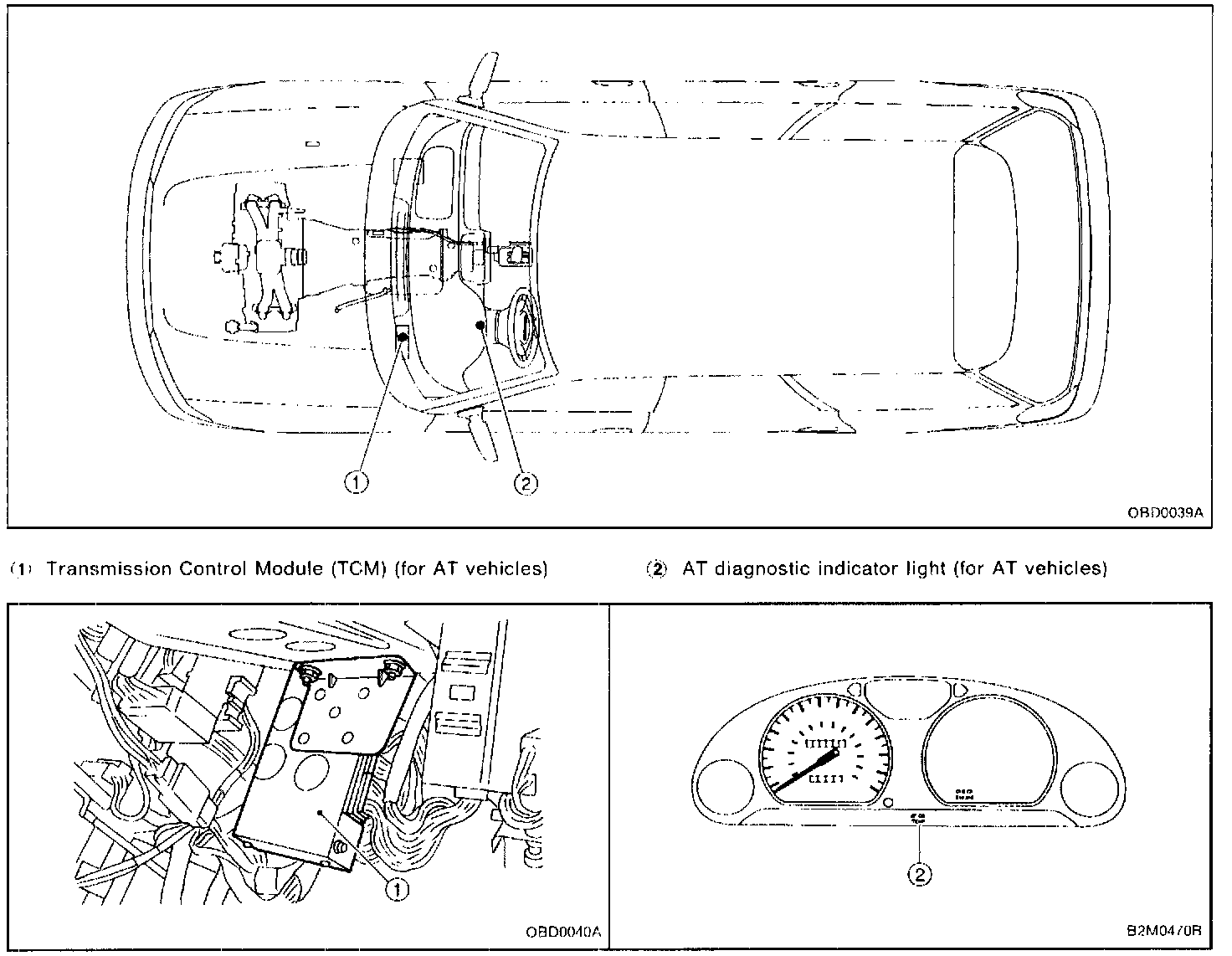

1. Transmission control module

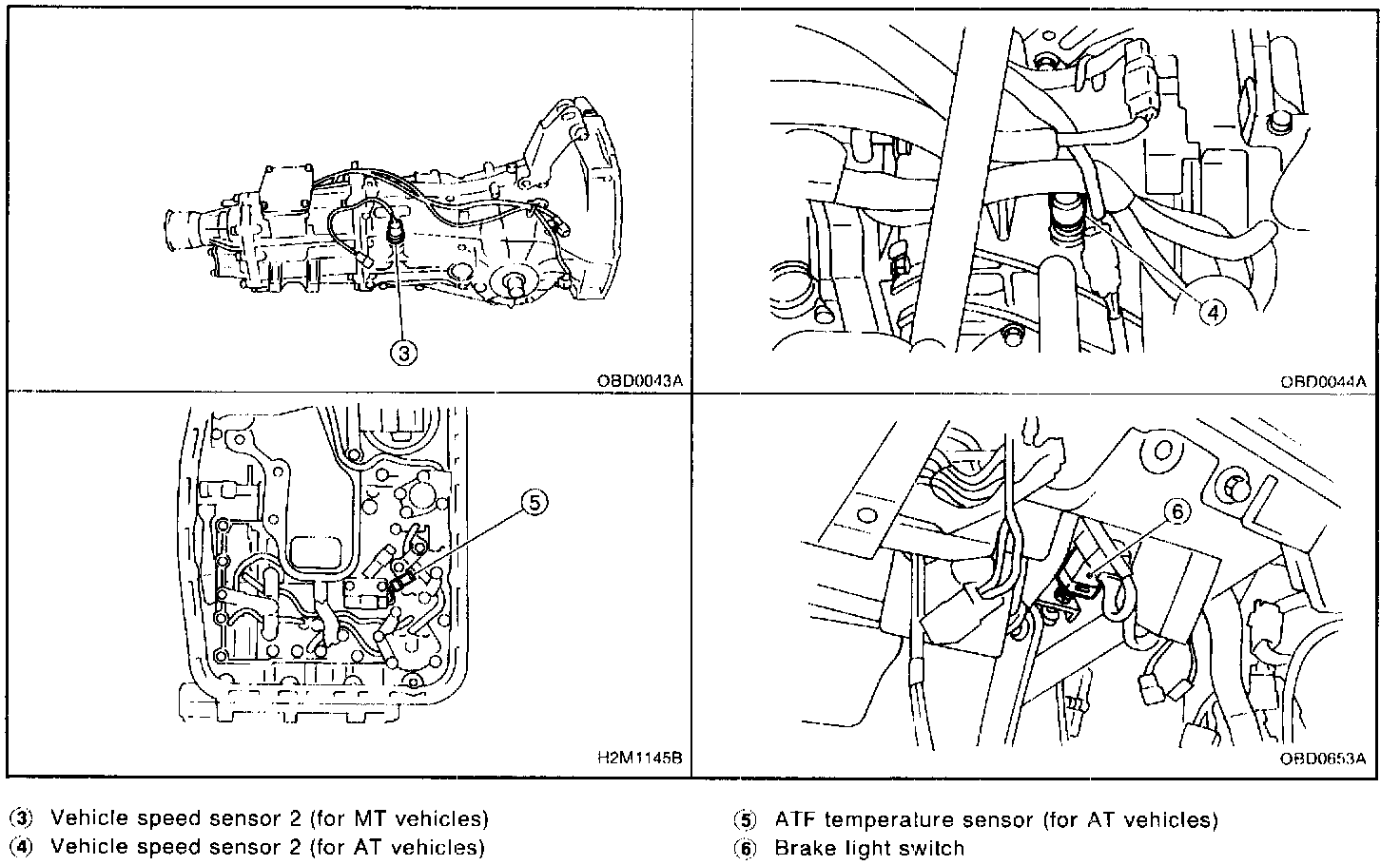

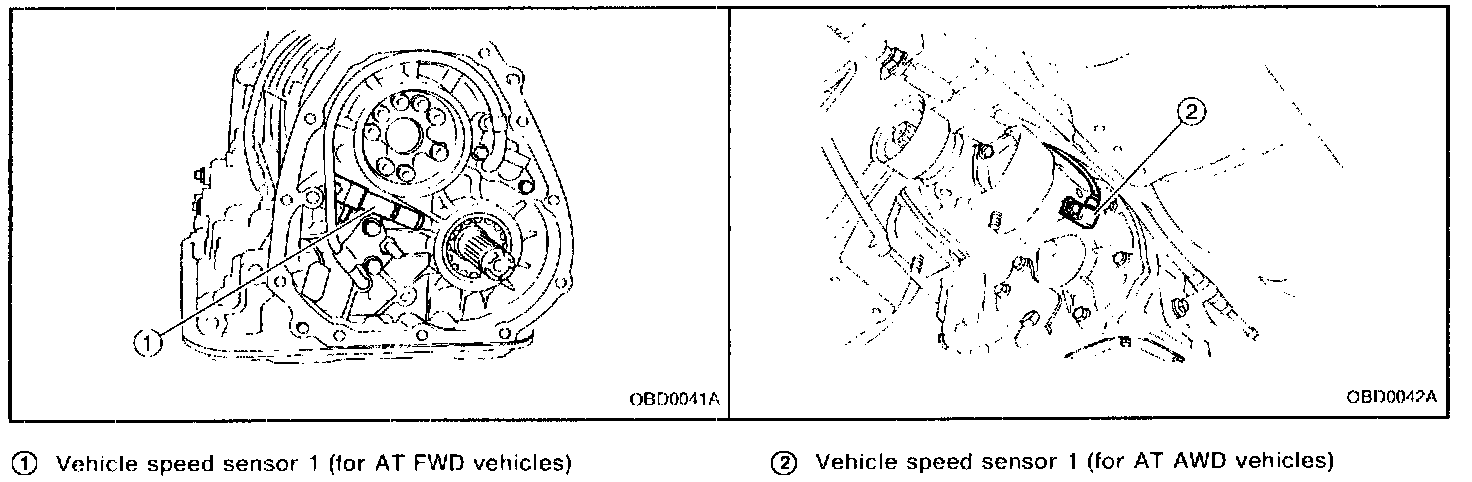

2. Transmission sensors

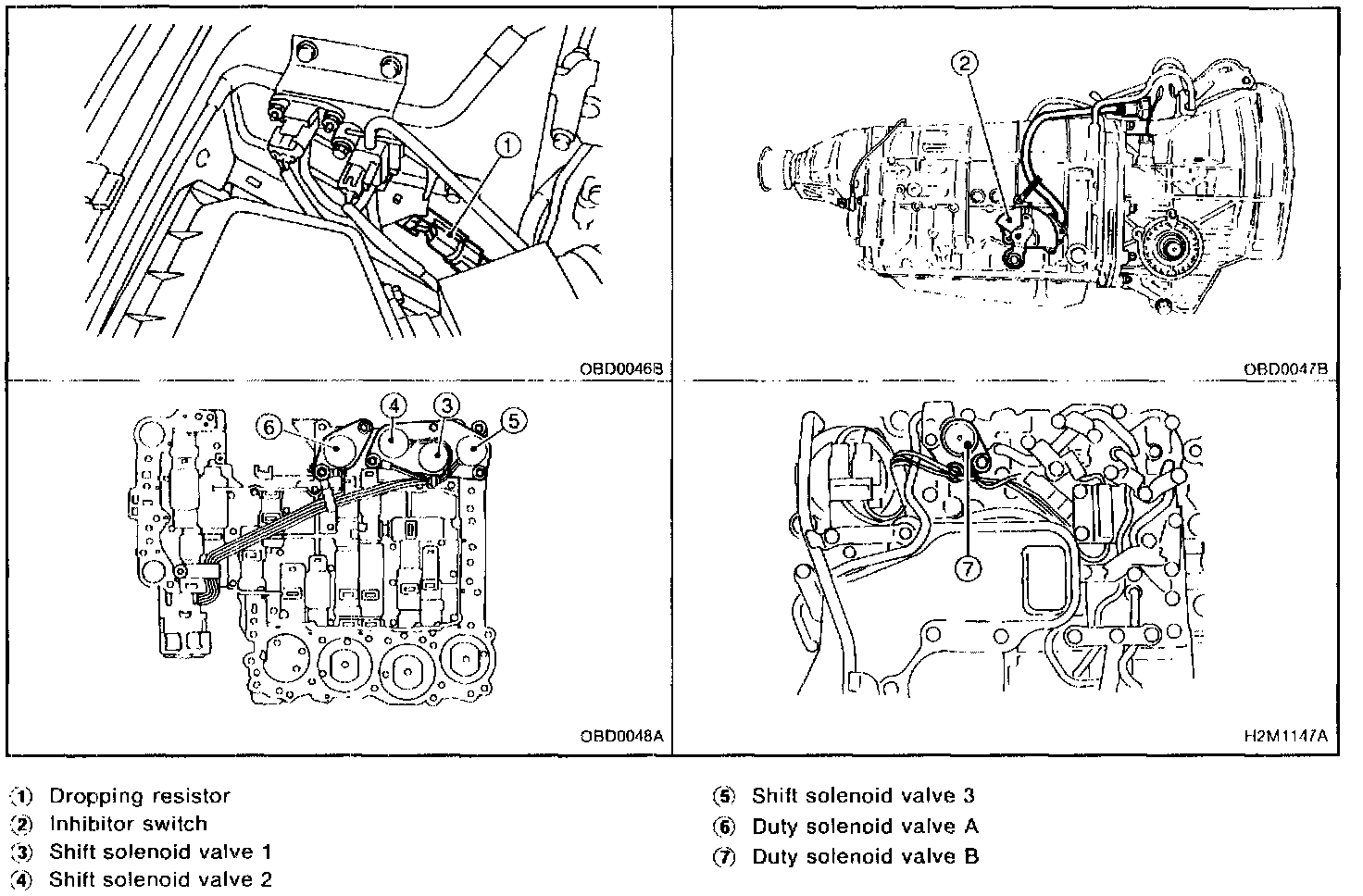

3. Solenoids, switches, relays
