Throttle Body: Service and Repair

THROTTLE BODY
REMOVAL AND INSTALLATION

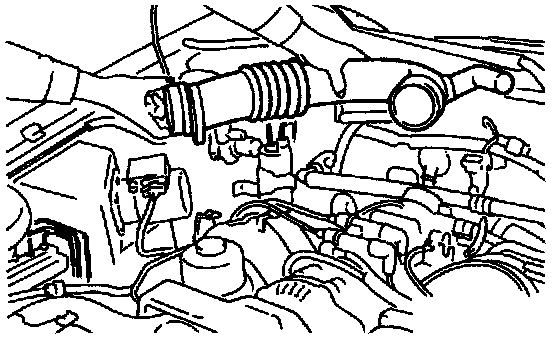

1. Remove Air Intake Duct.

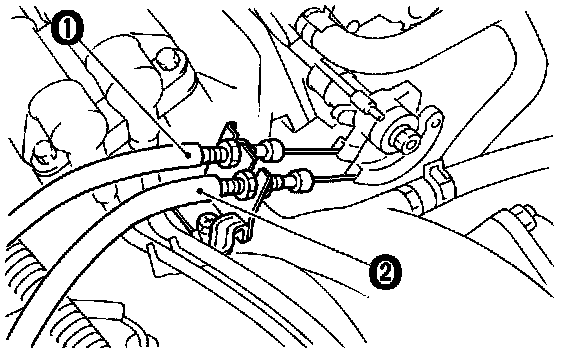

2. Disconnect Accelerator Cable (1).
3. Disconnect Cruise Control Cable (2). (With Cruise Control model)

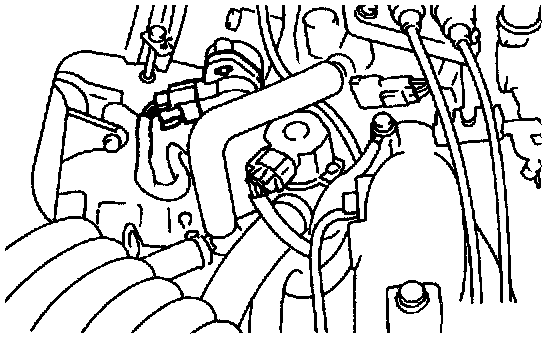

4. Disconnect connector from Throttle Position Sensor.





5. Disconnect Engine Coolant Hoses from Throttle Body.

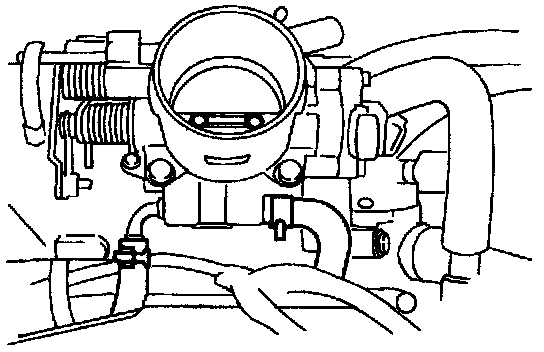

6. Remove bolts which install Throttle Body to Collector Chamber.
7. Installation is in the reverse order of removal.

CAUTION: Always use a new gasket.

Tightening Torque: 22 ± 2 N.m (15.9 ± 1.4 ft-lb).
