Fuel Filler Hose: Service and Repair
FUEL FILLER PIPE REMOVAL1. Release fuel pressure.

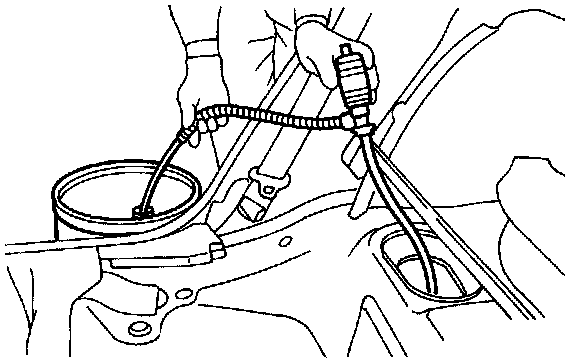

2. Drain fuel from fuel tank.
3. Remove right rear wheel.

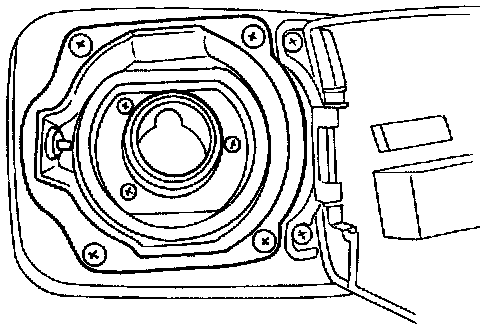

4. Open fuel filler flap and remove filler cap.
5. Remove screws holding packing in place.
6. Lift-up the vehicle.

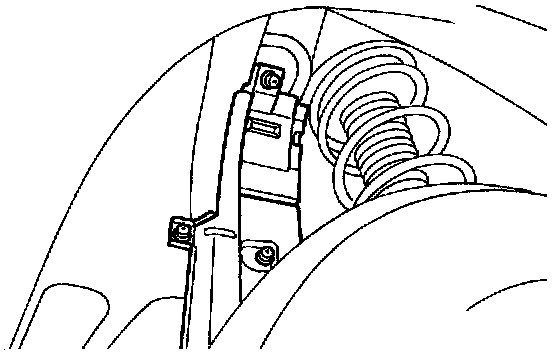

7. Remove fuel filler pipe protector.

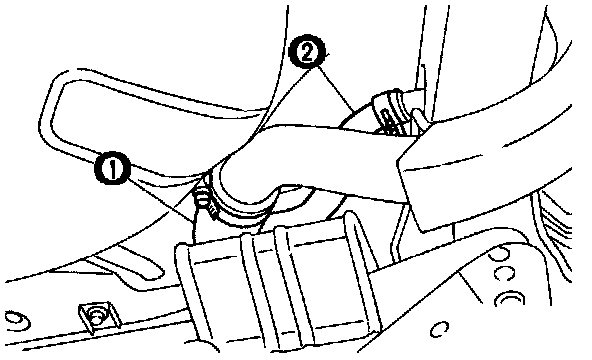

8. Remove clip, and separate air vent hose (2) from pipe.
9. Loosen clamp, and separate fuel filler hose (1) from pipe.
10. Remove fuel filler pipe to under side of the vehicle.
INSTALLATION
1. Hold fuel filler flap open.

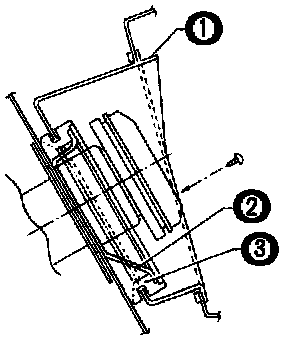

2. Set fuel saucer (1) with rubber packing (3), and insert fuel filler pipe into hole from the inner side of apron.
3. Align holes in fuel filler pipe neck and set cup (2), and tighten screws.
NOTE: If edges of rubber packing are folded toward the inside, straighten it with a screwdriver.

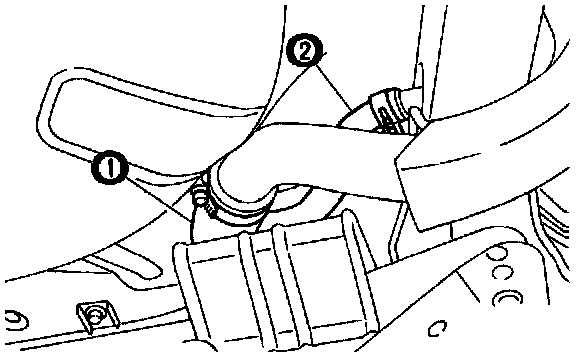

4. Insert fuel filler hose (1) approximately 25 to 30 mm (0.98 to 1.18 in) over the lower end of fuel filler pipe and tighten clamp.
CAUTION: Do not allow clips to touch air vent hose (2) and rear suspension crossmember.

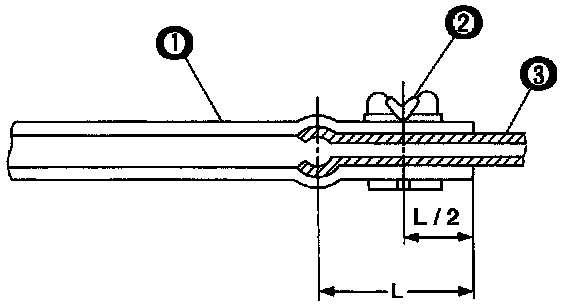

5. Insert air vent hose (1) approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of air vent pipe (3) and hold clip (2).
L = 25 - 30 mm (0.98 - 1.18 in)

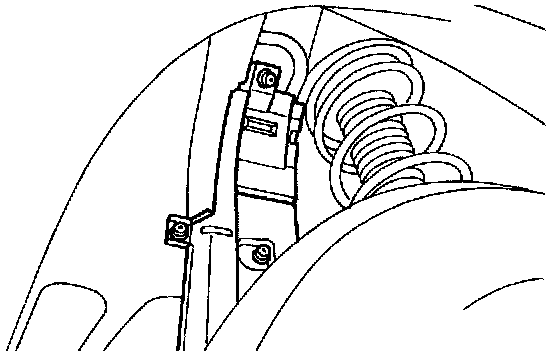

6. Install fuel filler pipe protector.
7. Install right rear wheel.
