Roll Over Valve
Roll Over Valve
Roll Over Valve

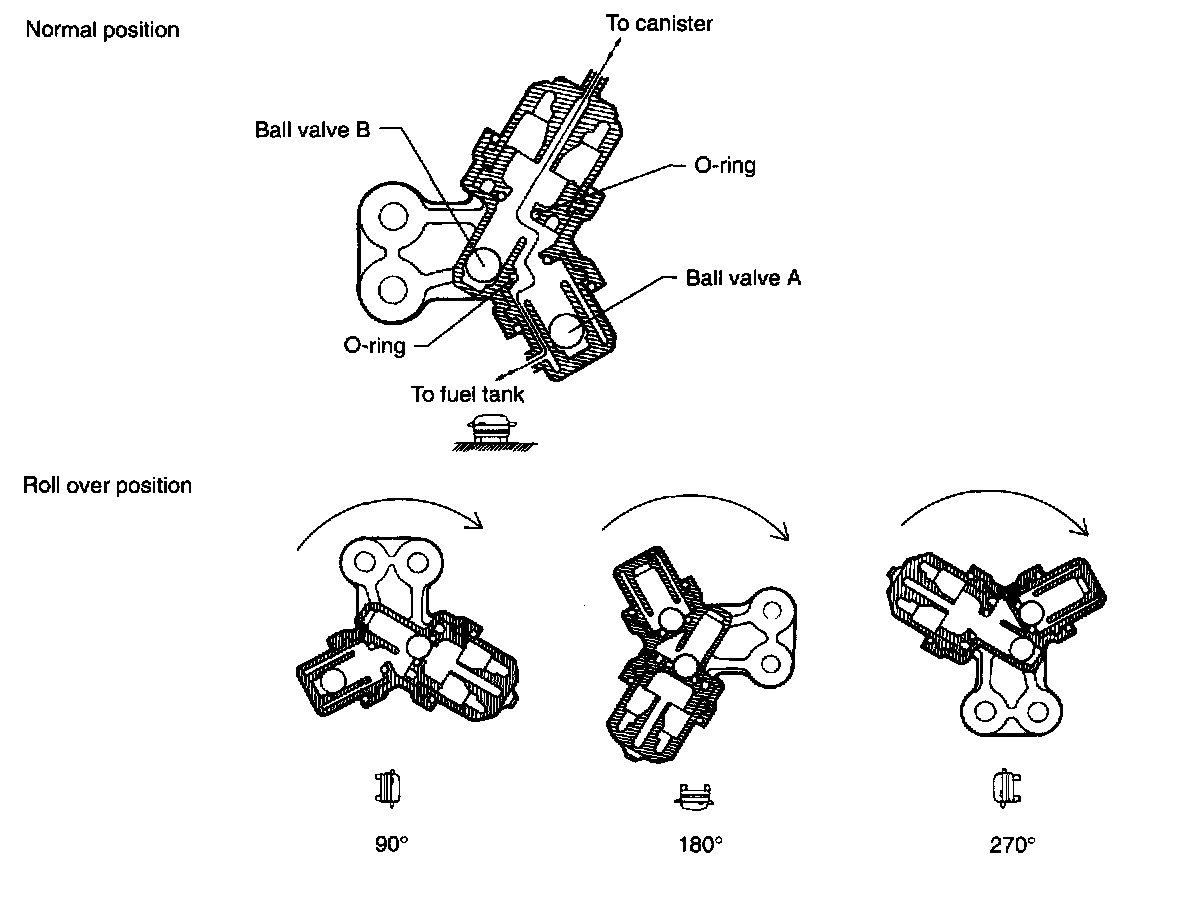

The
roll over valve
is for prevention of fuel leakage in the event of the vehicle rolling over
