Evaporative Emission Control Canister: Service and Repair

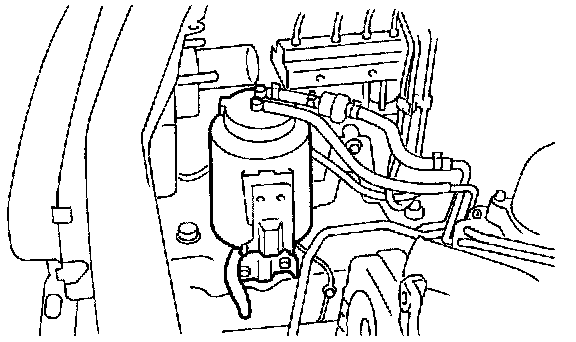

CANISTER REMOVAL AND INSTALLATION
1. Disconnect canister hoses from evaporation pipes.
2. Remove canister with bracket.
3. Installation is in the reverse order of removal.

CAUTION: Insert air vent hose of canister into the hole on body.
