Canister Purge Solenoid: Service and Repair

REMOVAL AND INSTALLATION

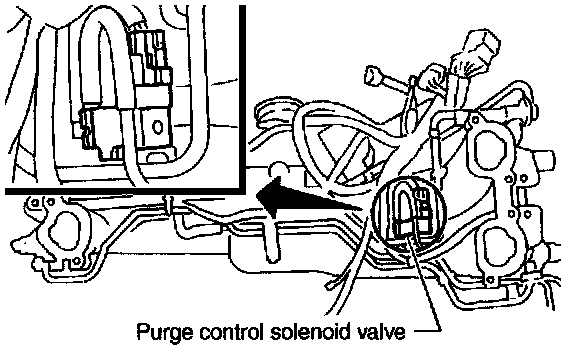

1. Remove bolt which installs purge control solenoid valve on to intake manifold.





NOTE: This figure shows the rear side of intake manifold.

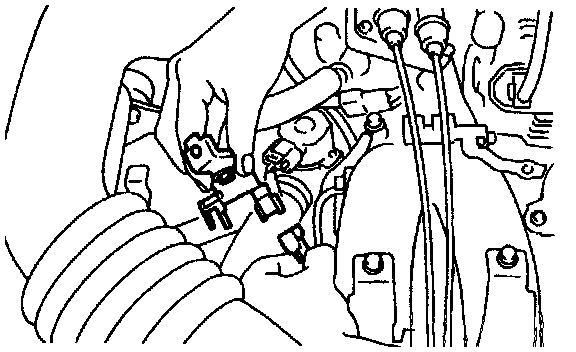

2. Take out purge control solenoid valve through the bottom of the intake manifold.
3. Disconnect connector and hoses from purge control solenoid valve.
4. Installation is in the reverse order of removal.

Tightening Torque: 16 ± 1.5 N.m (11.6 ± 1.1 ft-lb).
