Instrument Panel Bulb: Description and Operation

WARNING AND INDICATOR LIGHT

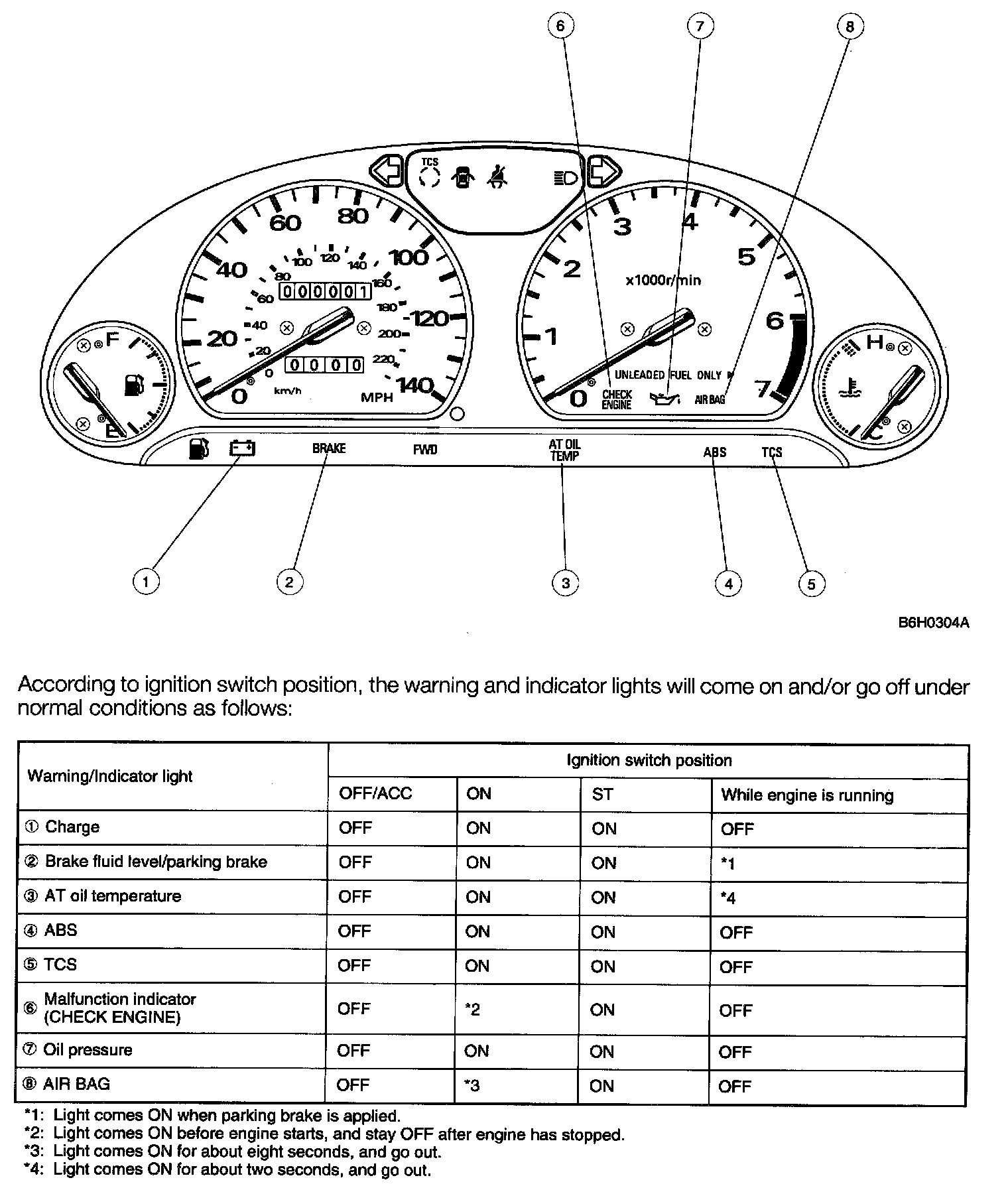

Warning And Indicator Light:

Description
1. Charge indicator light
This light illuminates when trouble occurs in charging system during engine is running.
2. Brake fluid level warning/parking brake indicator light
This light illuminates when the fluid level in the brake reservoir tank lowers under specified level and/ or when parking brake is applied.
3. AT oil temperature warning light
This light illuminates when the ATF temperature exceeds 150 °C (302 °F).
4. ABS warning light
This light illuminates when trouble occurs in electrical components of ABS (Anti-lock Brake System).
5. TCS warning light
This light illuminates when trouble occurs in electrical components of TCS (Traction Control System).
6. CHECK ENGINE warning light
This light illuminates when trouble occurs in MFI (Multiple point Fuel Injection) system.
7. Oil pressure warning light
This light illuminates when the engine oil pressure decreases below 14.7 kPa (0.15 kg/sq.cm, 2.1 psi).
8. AIR BAG system warning light
This light illuminates when trouble occurs in Airbag system.
