Sedan

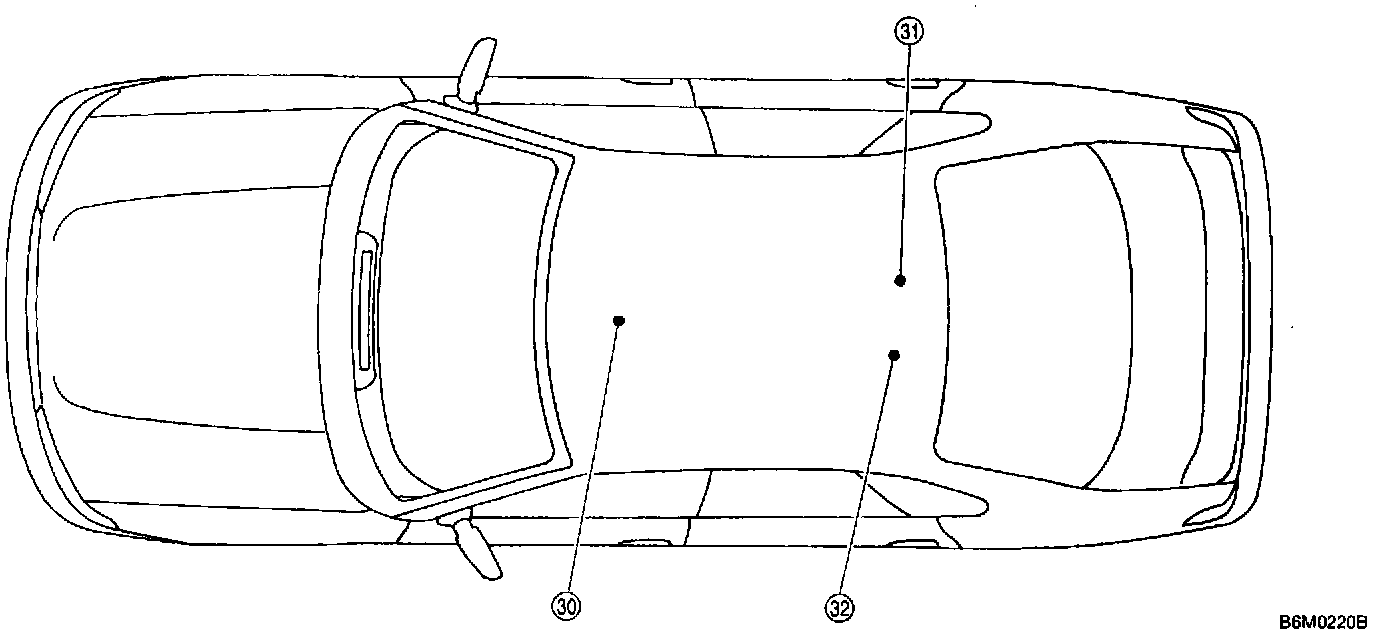

Compartment:





30. Sunroof control module
31. Fuel gauge module
32. Fuel gauge sub module (AWD)
