Heater Core Case: Service and Repair

Heater Unit

REMOVAL AND INSTALLATION

1. Disconnect GND cable from battery.
2. Remove heater hoses (inlet, outlet) in engine compartment.

NOTE: Drain as much coolant from heater unit as possible, and plug disconnected hose with cloth.

3. Remove instrument panel.
4. Remove steering support beam.
5. Remove evaporator. (With A/C model)

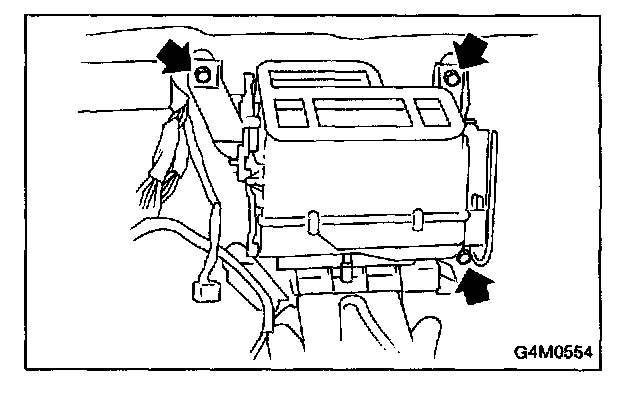

6. Remove heater unit.

7. Installation is in the reverse order of removal.

Fitted length of heater hose over pipe:
25 - 30 mm (0.98- 1.18 in)

8. Pour coolant.
