Condenser Fan: Testing and Inspection

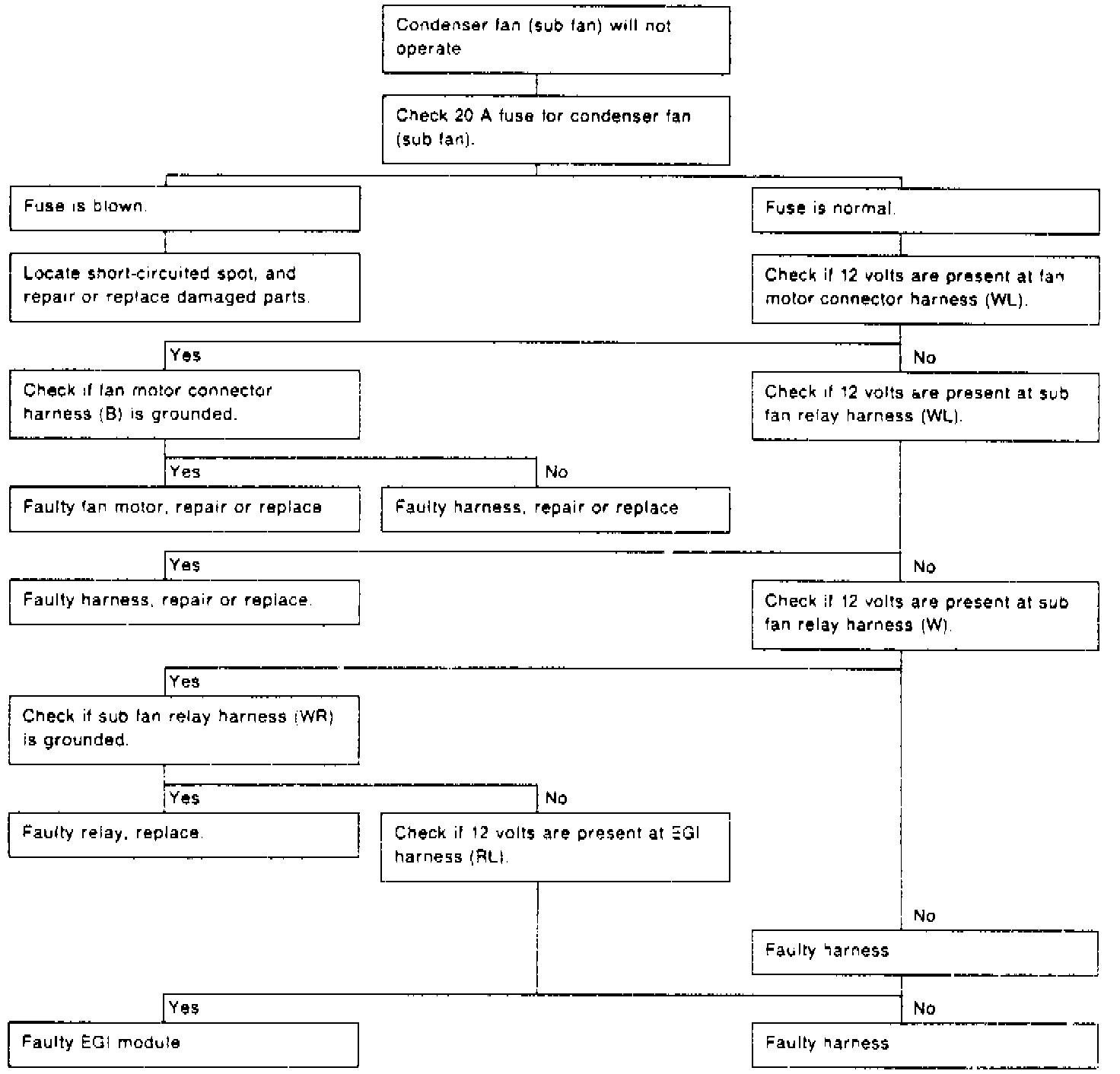

Fig. 8 Condenser Fan Diagnosis (Fan Will Not Operate):

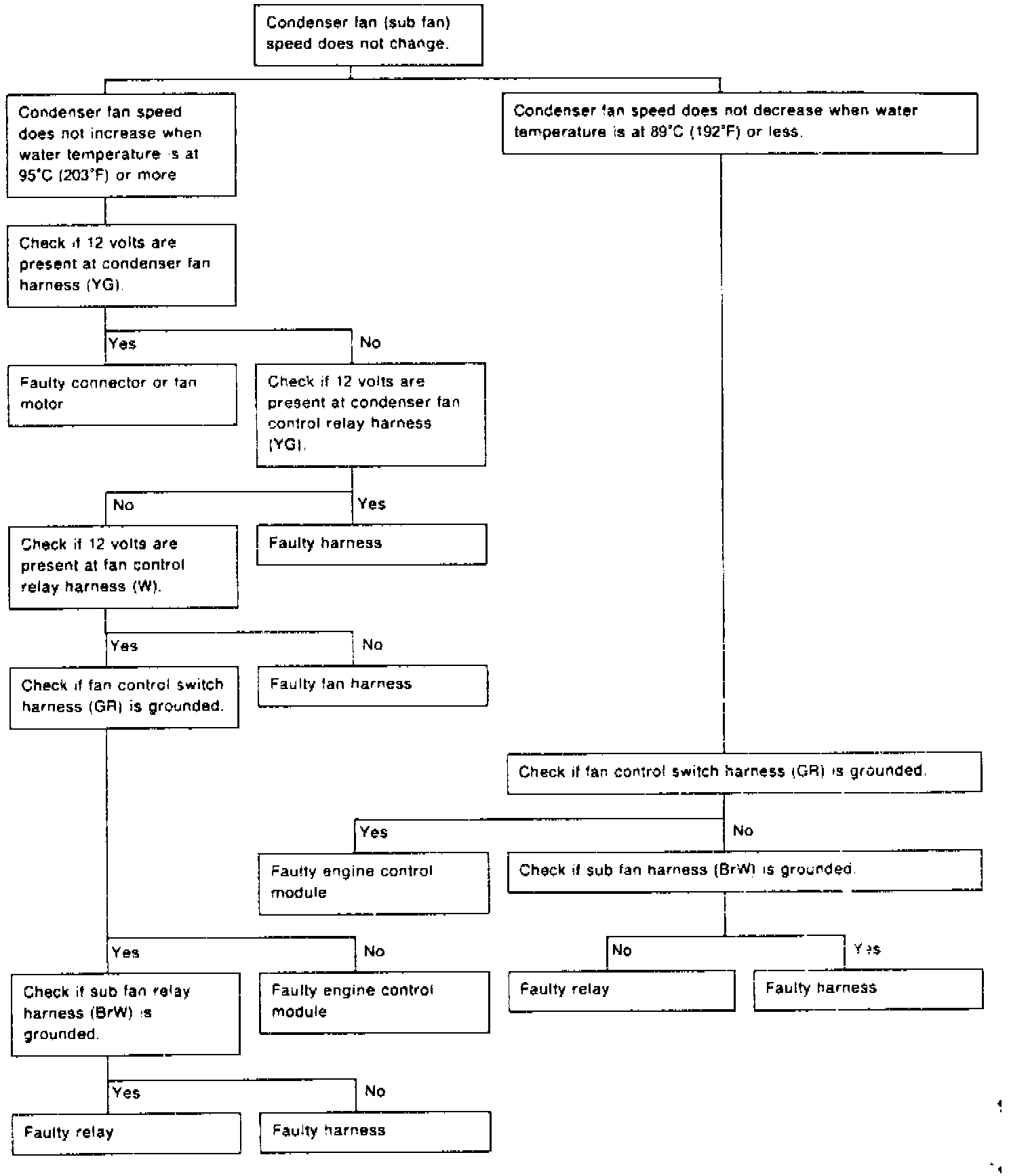

Fig. 10 Condenser Fan Diagnosis (Fan Speed Does Not Change):
Refer to Figs. 8 and 10, for condenser fan diagnosis.
Refer to Figs. 8 and 10, for condenser fan diagnosis.
