3. Piston and Piston Pin (#1 and #2)

3. PISTON AND PISTON PIN (#1 AND #2)





1) Installing piston
(1) Turn cylinder block so that #1 and #2 cylinders face upward.
(2) Using ST1,turn crankshaft so that #1 and #2 connecting rods are set at bottom dead center. ST1 499987500 CRANKSHAFT SOCKET

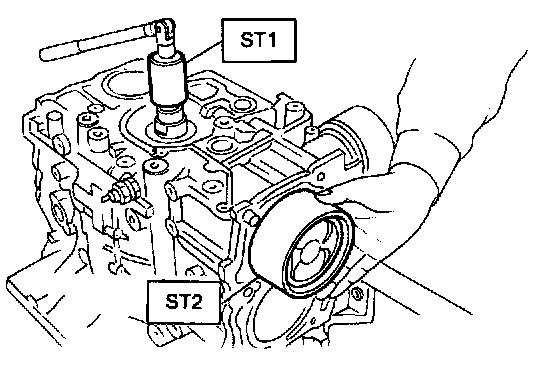

(3) Apply a coat of engine oil to pistons and cylinders and insert pistons in their cylinders by using ST2. ST2 498747300 PISTON GUIDE

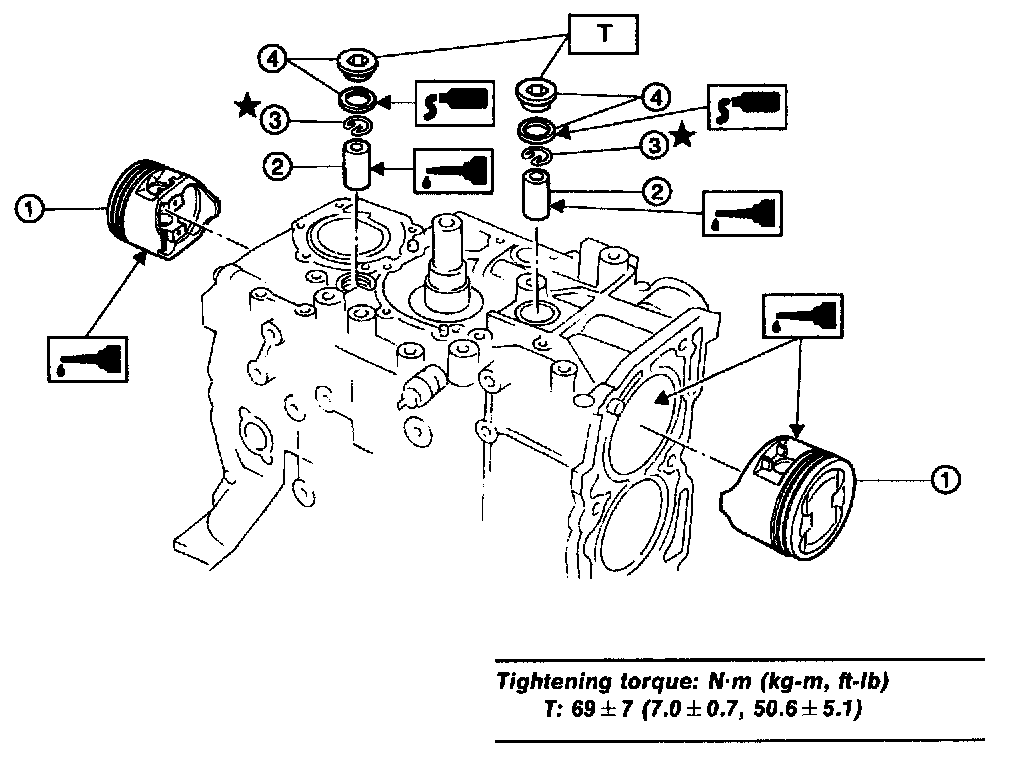

2) Installing piston pin

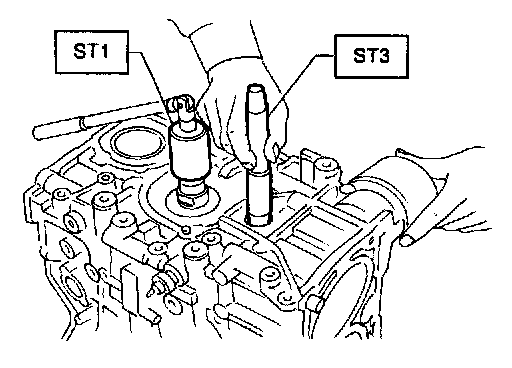

(1) Insert ST3 into service hole to align piston pin hole with connecting rod small end.

CAUTION: Apply a coat of engine oil to ST3 before insertion. ST3 499017100 PISTON PIN GUIDE

(2) Apply a coat of engine oil to piston pin and insert piston pin into piston and connecting rod through service hole.

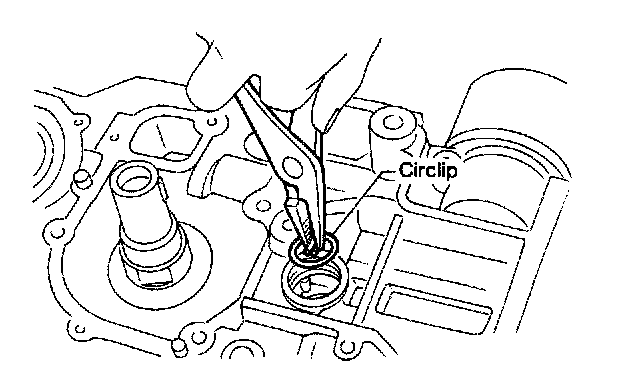

(3) Install circlip.

CAUTION: Use new circlips.

(4) Install service hole plug and gasket.

CAUTION: Use a new gasket and apply a coat of fluid packing to it before installation.

Fluid packing: THREE BOND 1215 or equivalent
