Removal

REMOVAL





1) Disconnect battery cables and remove battery from body.

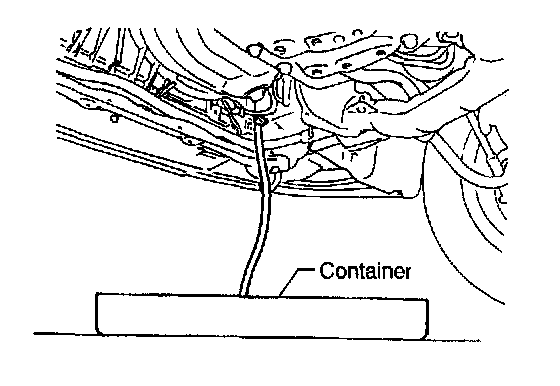

2) Drain engine coolant.
Set container under the vehicle, and remove drain cock from radiator.

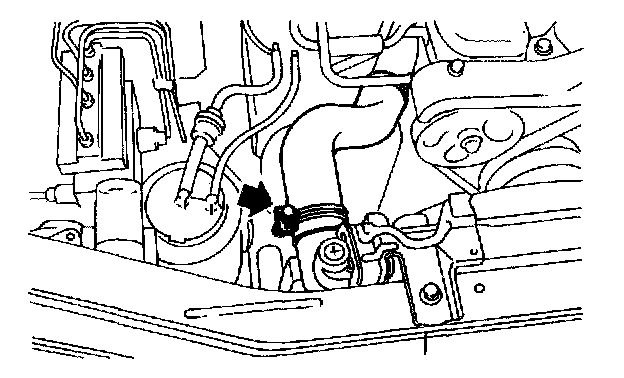

3) Disconnect radiator outlet hose from thermostat cover.

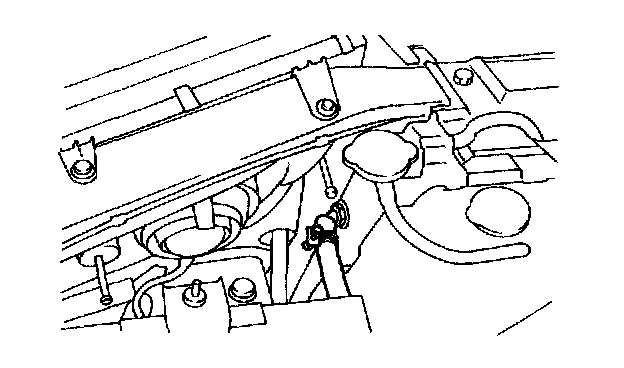

4) Disconnect ATF cooler hoses from radiator. (AT model)

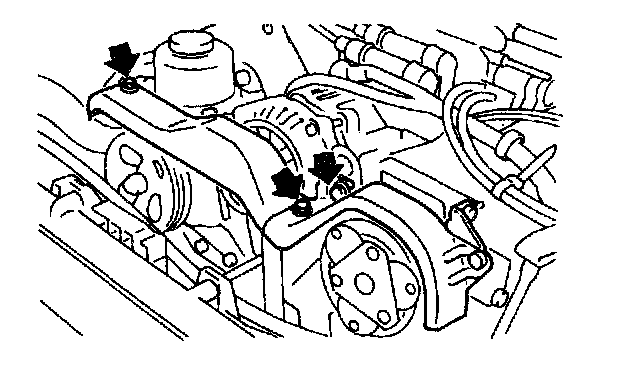

5) Remove V-belt cover.

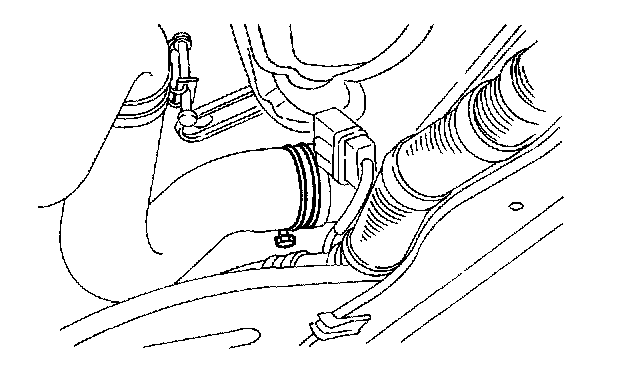

6) Disconnect inlet hose from radiator.





7) Disconnect connectors of radiator main fan and sub fan motor.

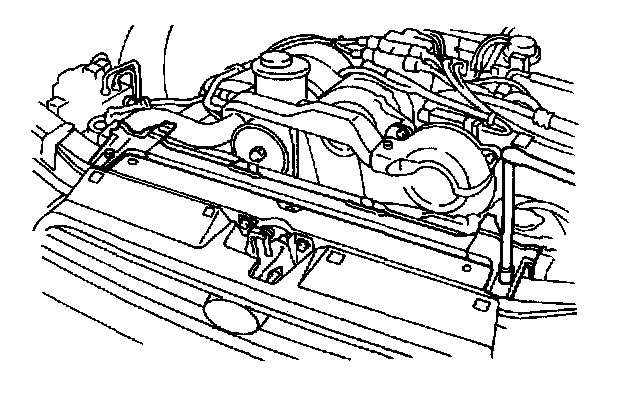

8) Remove radiator upper brackets.

NOTE: Place left upper radiator bracket between grille and body.

9) While slightly lifting radiator, slide it to left.

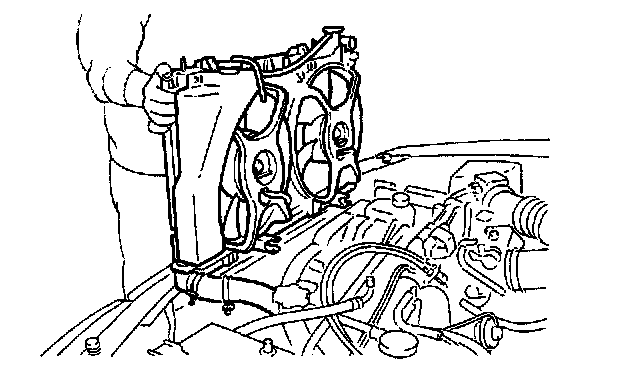

10) Lift radiator up and away from vehicle.
