Installation

INSTALLATION

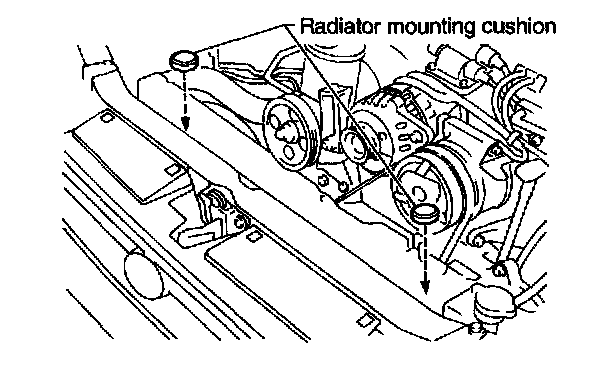

1) Attach radiator mounting cushions to body.

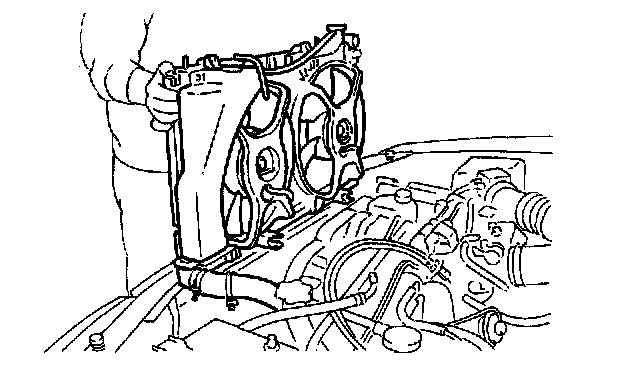

2) Install radiator while fitting radiator pins to cushions.





3) Install radiator brackets and tighten bolts.
4) Connect radiator main fan motor and sub fan motor connectors.

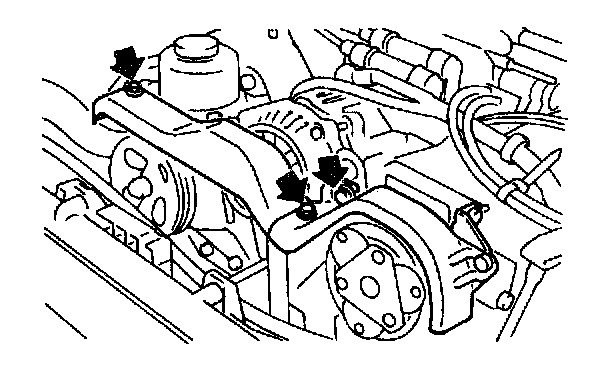

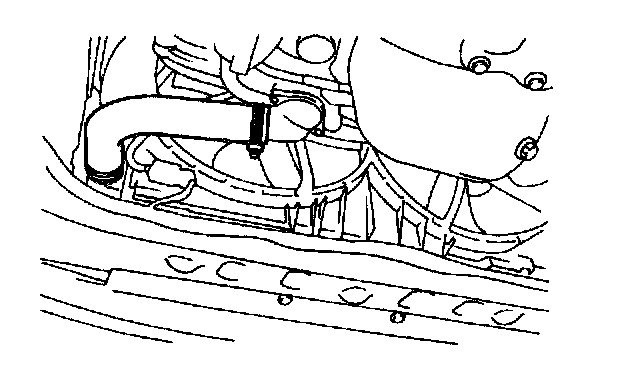

5) Connect radiator inlet and outlet hoses.
6) Connect ATF cooler hoses. (AT model)





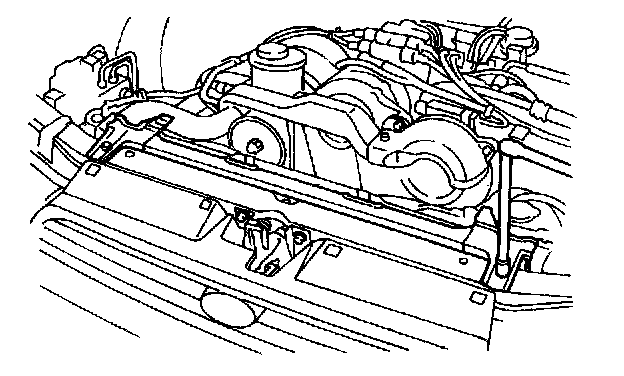

7) Install V-belt cover.

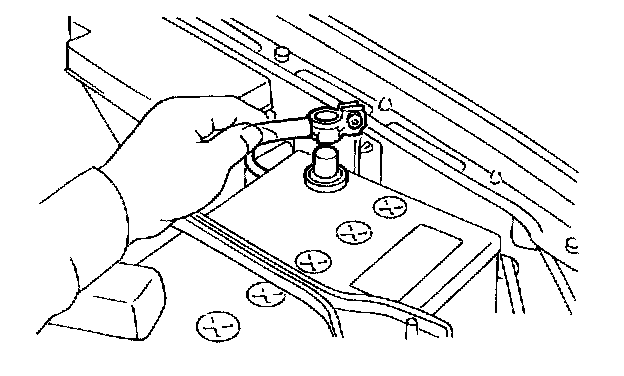

8) Connect ground cable to battery terminal.
