Home >> Subaru >> 1996 >> Outback [Legacy] AWD F4-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Harness >> Bulkhead Wiring Harness And Ground Point (In Engine Room)

Bulkhead Wiring Harness And Ground Point (In Engine Room)

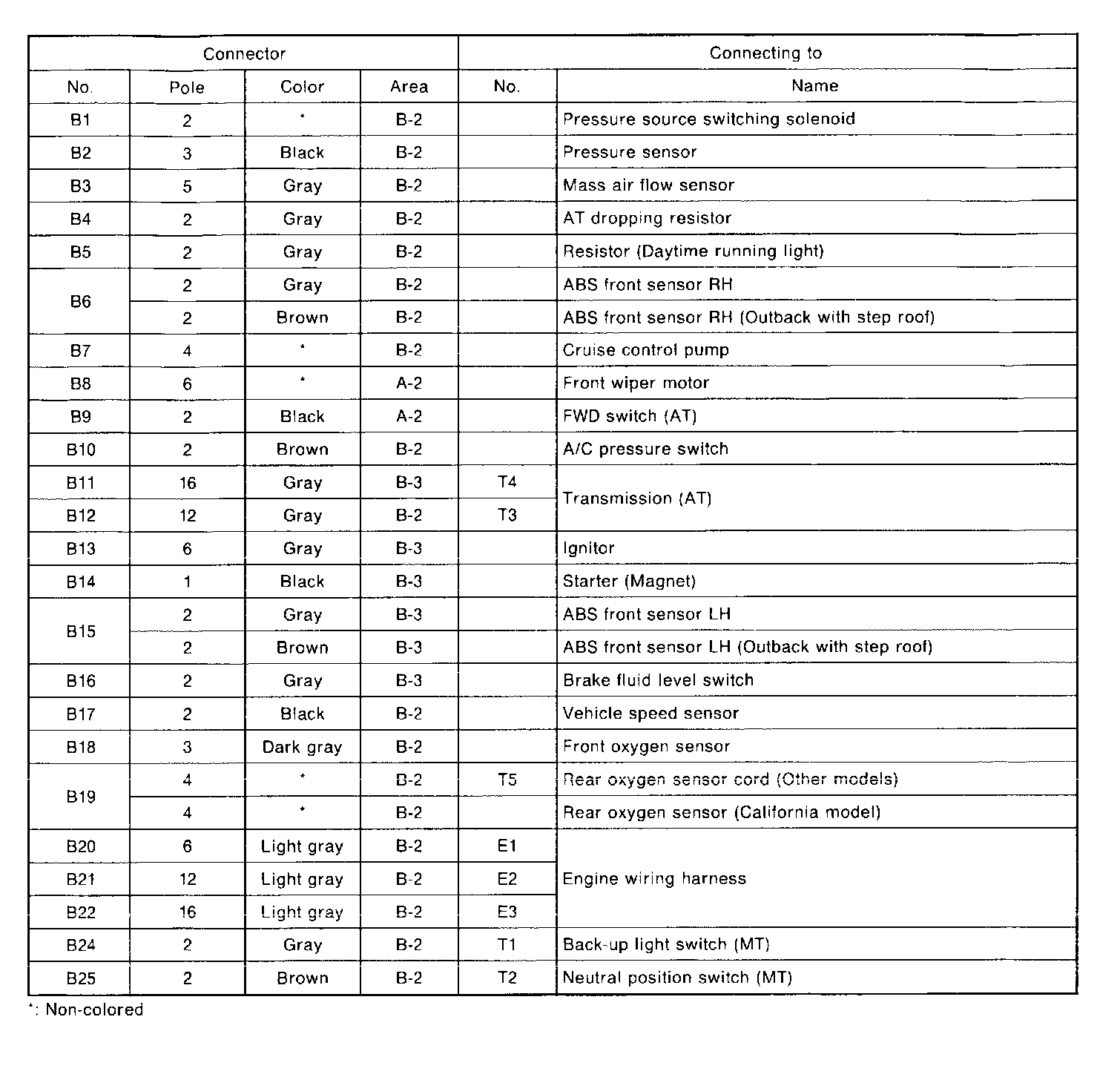

Bulkhead Wiring Harness And Ground Point [In Engine Room] - List Of Items:

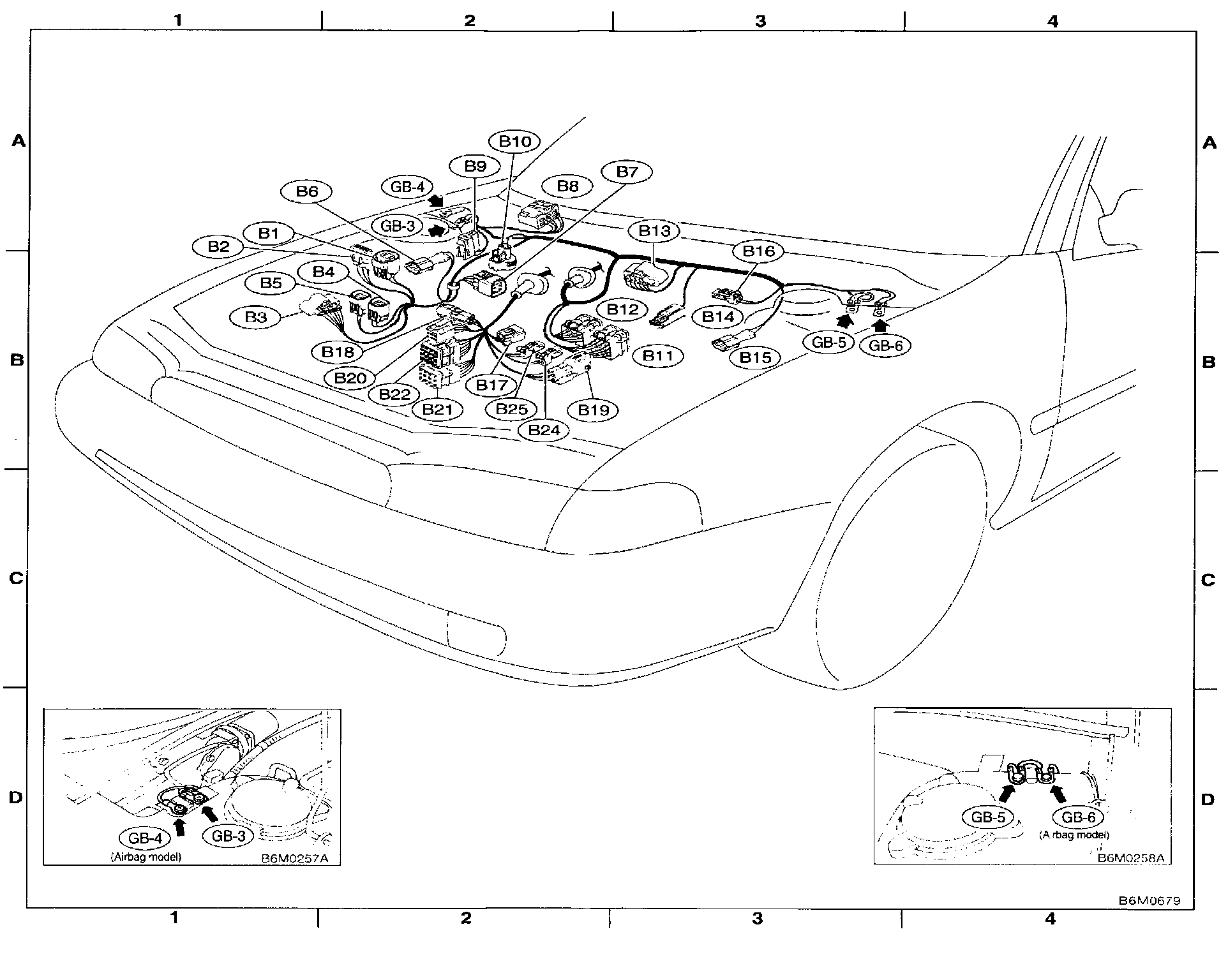

Bulkhead Wiring Harness And Ground Point [In Engine Room] - Locations:
