Home >> Subaru >> 1996 >> Outback [Legacy] AWD F4-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Grounds >> Floor Wiring Harness, Door Cord and Ground Point

Floor Wiring Harness, Door Cord and Ground Point

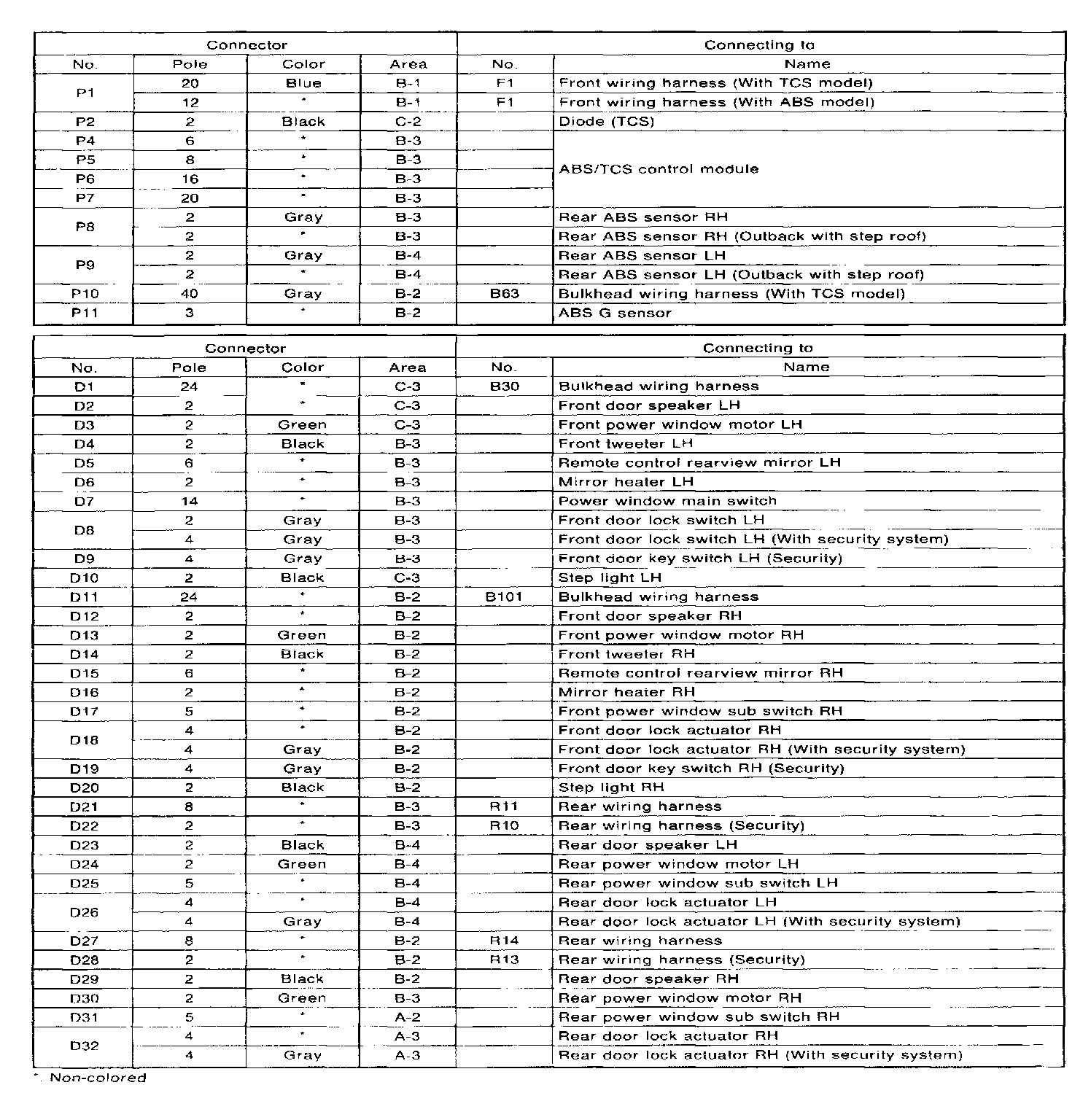

Floor Wiring Harness, Door Cord And Ground Point - List Of Items:

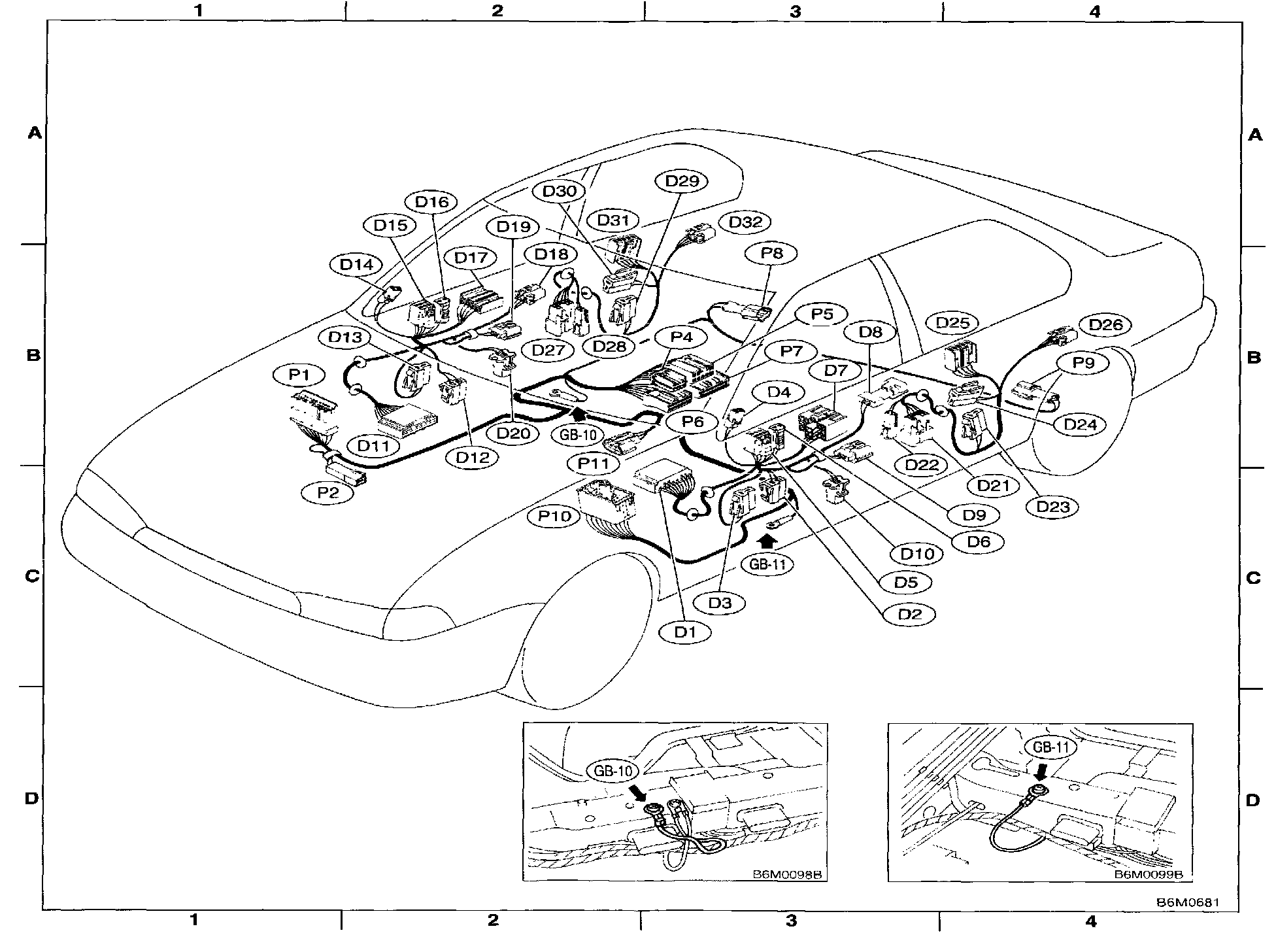

Floor Wiring Harness, Door Cord And Ground Point - Locations:
