Subaru
>>
1996
>>
Outback [Legacy] AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine Mount
>>

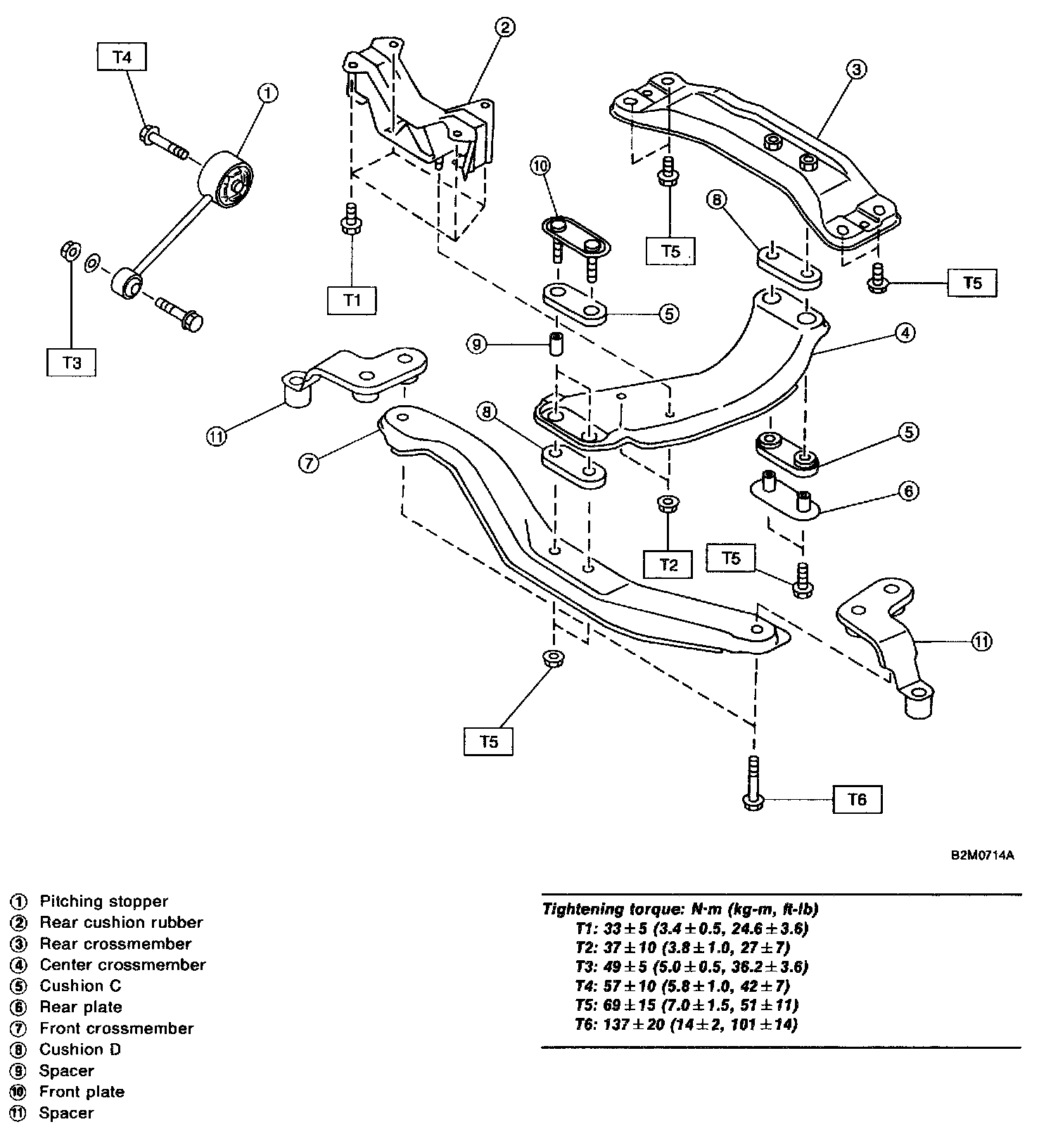

Transmission Mounting
>>
MT Model (Outback With Step Roof)
MT Model (Outback With Step Roof)
MT Models:
