Diagrams
>>
Exploded Views
>>
Brakes and Traction Control
>>
Brake Hose/Line
Brake Hose/Line

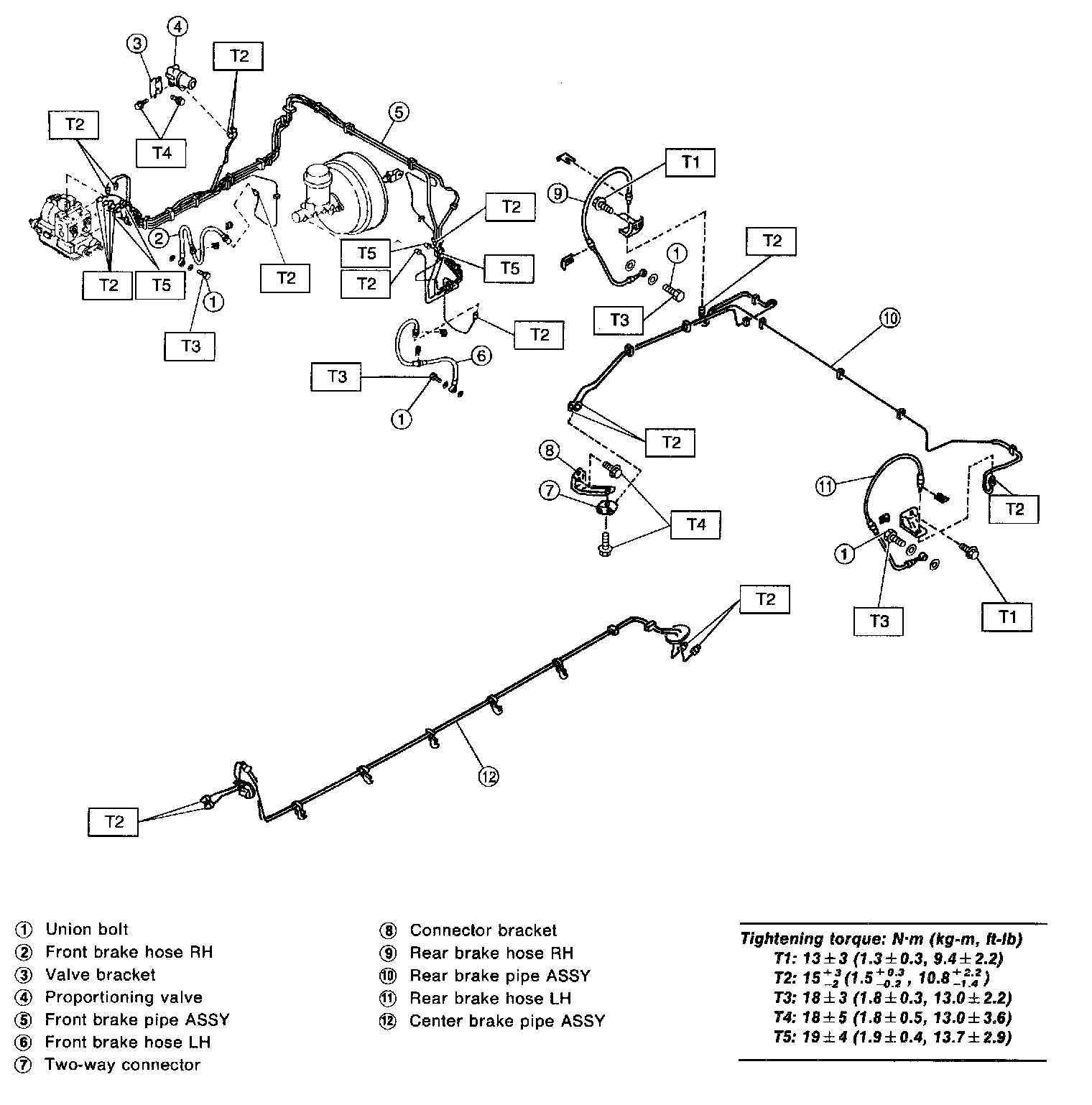

Models Without ABS

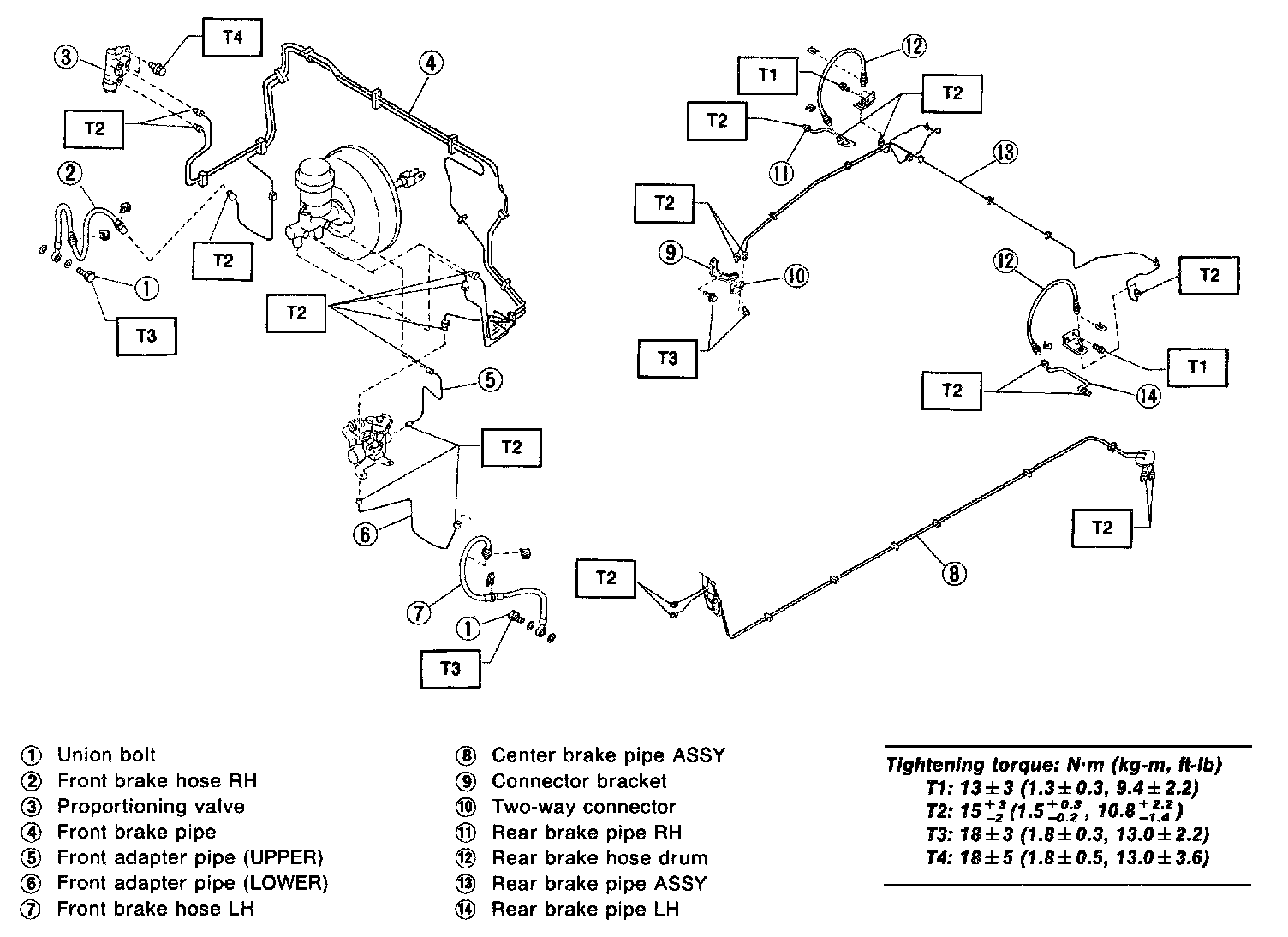

Models With ABS

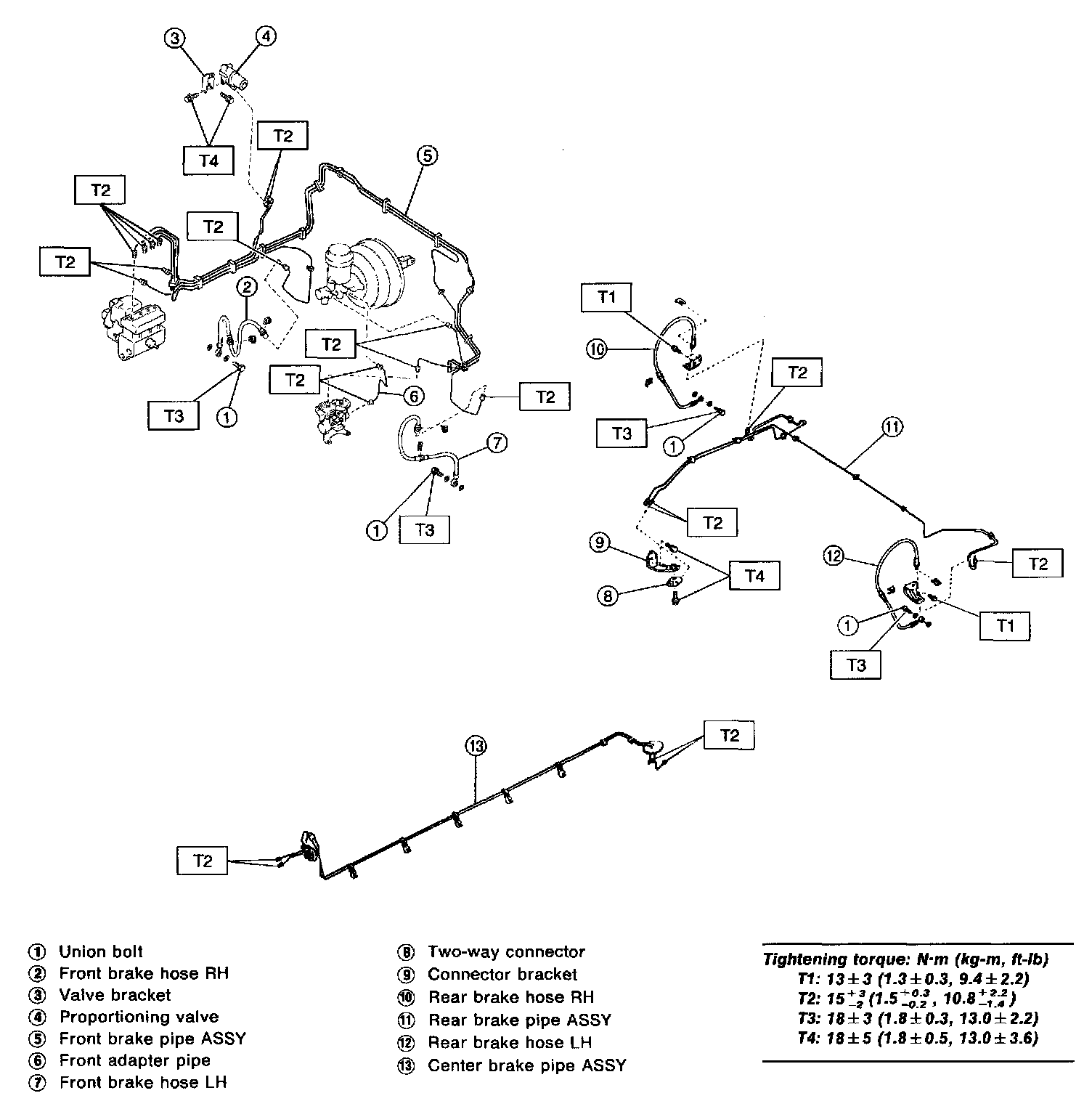

Models With ABS/TCS

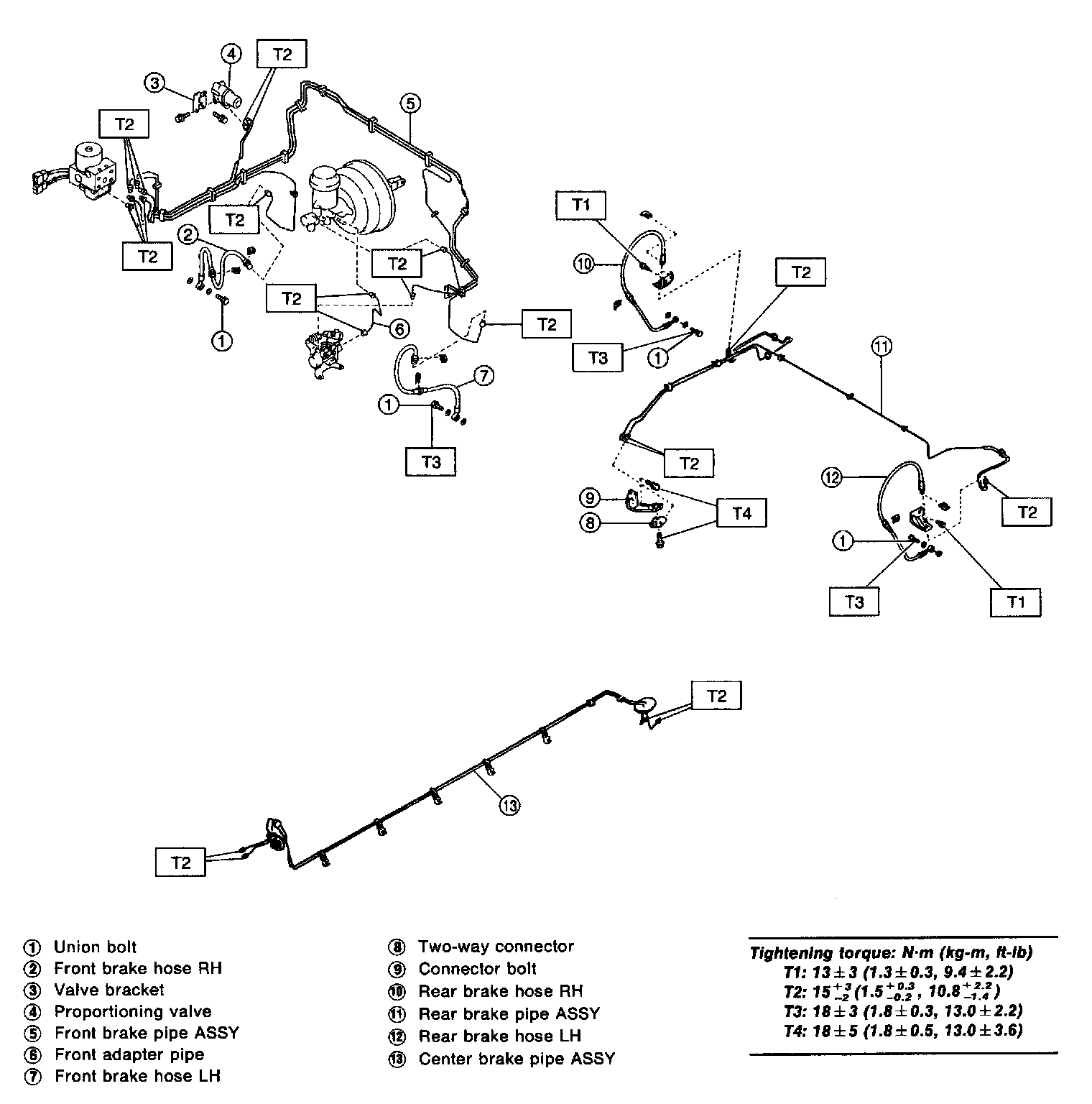

Models With ABS (5.3 Type)
Models With ABS (ABS 5.3 Type):
