Rear Wiring Harness and Ground Points

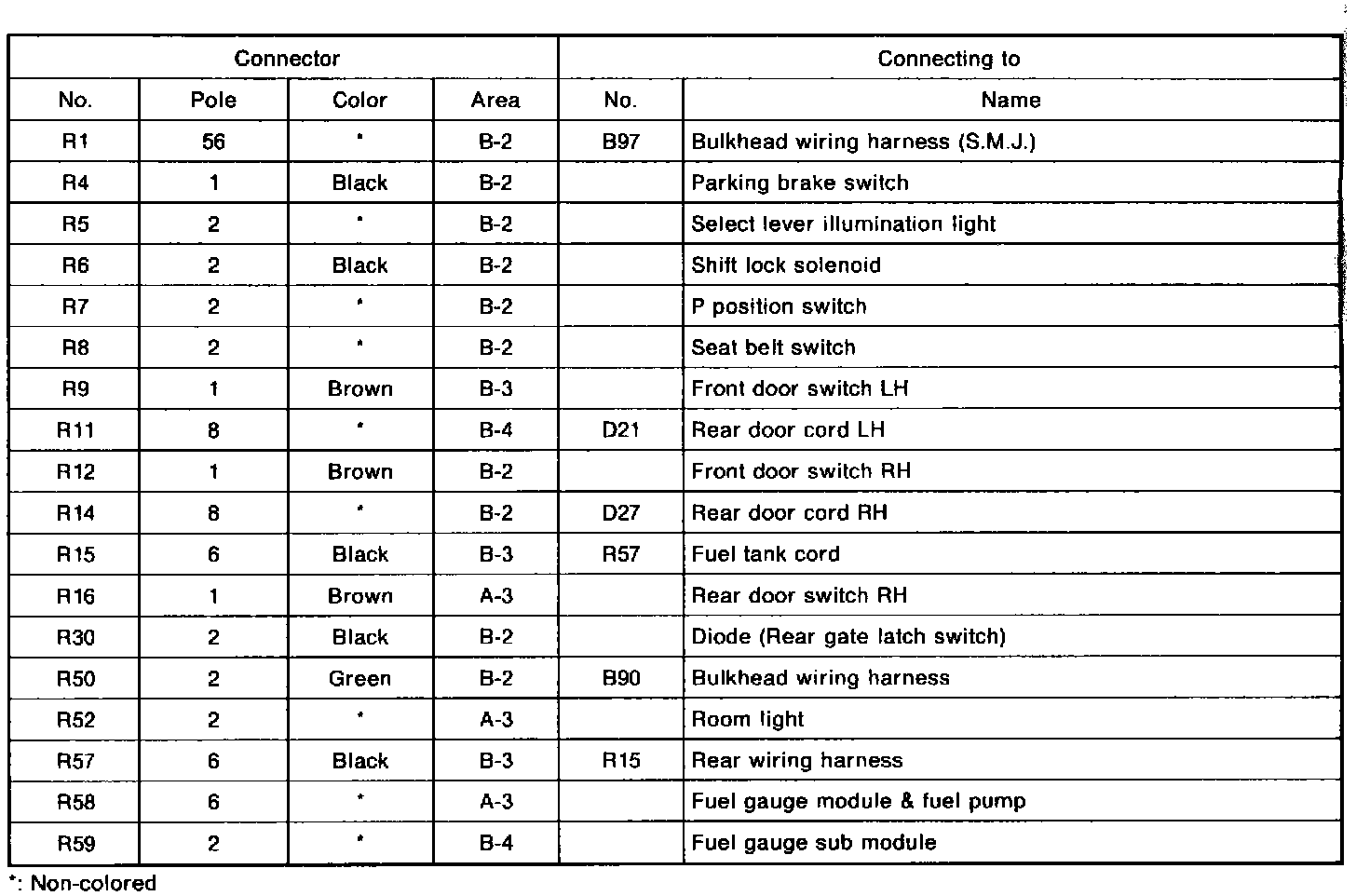

Rear Wiring Harness And Ground Point-Connector Location Table:
