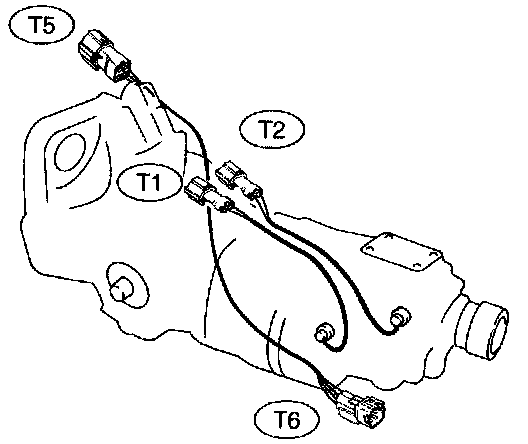

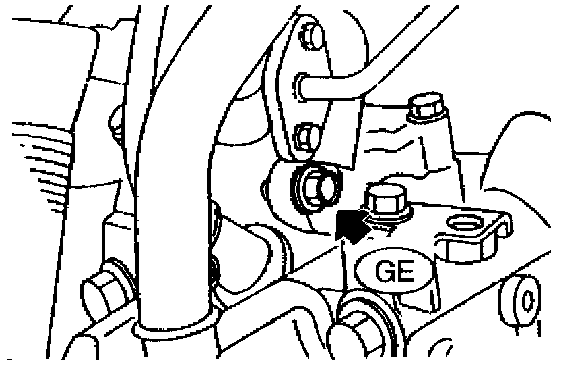

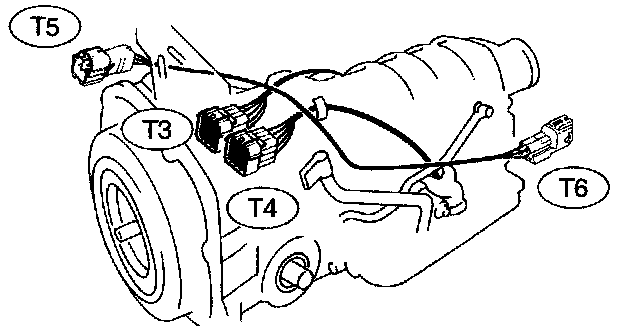

Engine Wiring and Harness, Trans Harness and Ground Points
Engine Wiring and Harness, Trans Harness and Ground Points

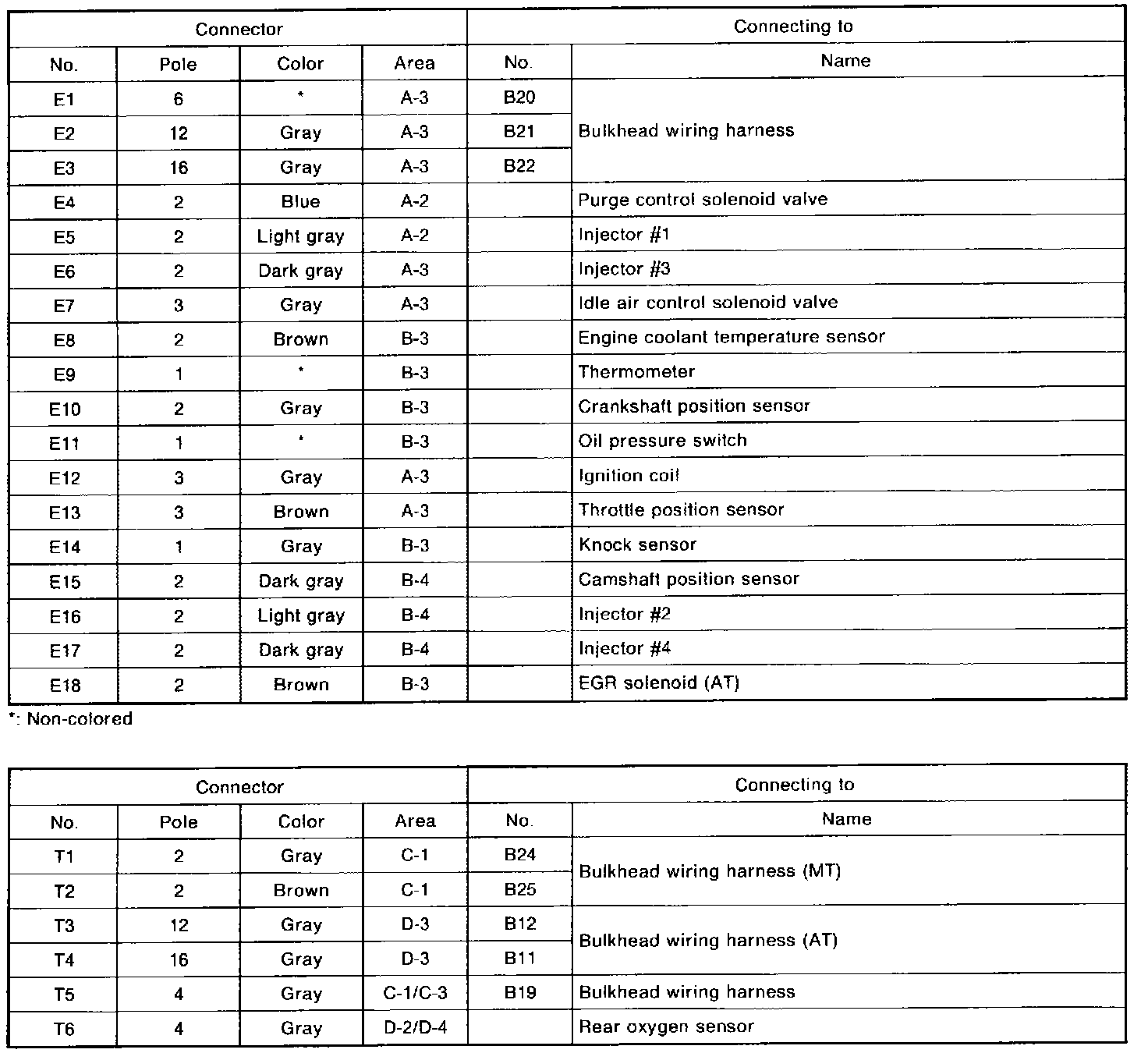

Engine Wiring Harness, Transmission Cord And Ground Point-Connector Location Table:
