Basic Troubleshooting Chart

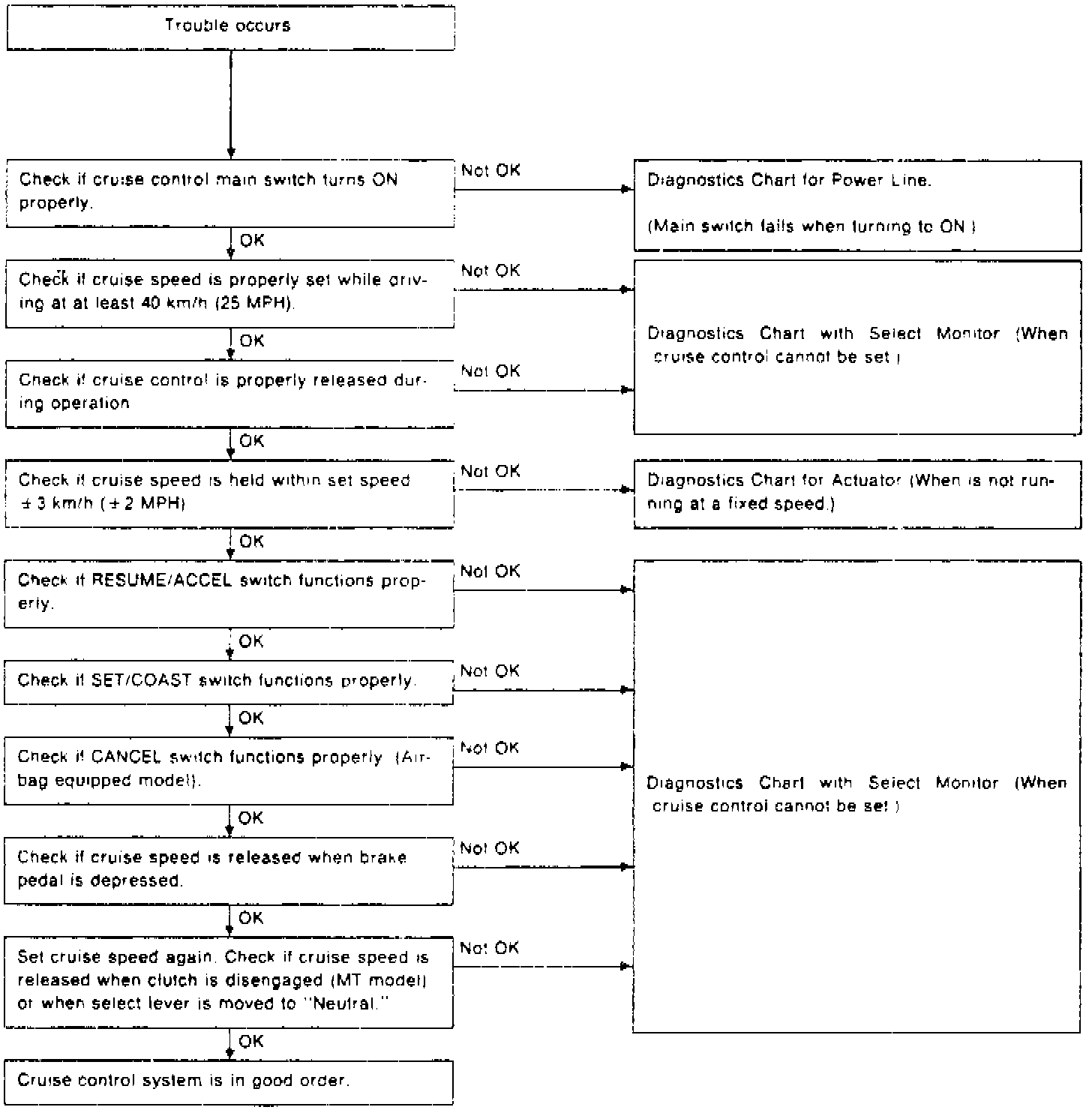

Fig. 5 Speed Control Basic Troubleshooting Chart:




Refer to Fig. 5, for troubleshooting procedures.
