Installation

INSTALLATION

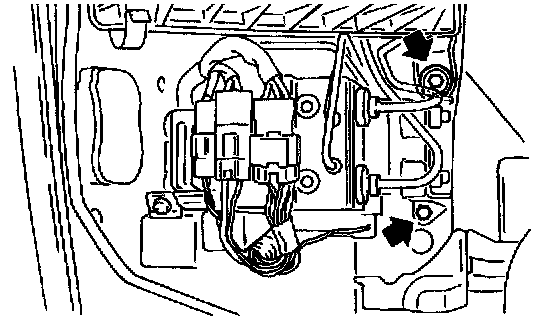

1) Install hydraulic unit and bracket.

Tightening torque:
32 ± 7 Nm (3.3 ± 0.7 kg-m, 23.9 ± 5.1 ft-lb)

2) Connect brake pipes to their correct hydraulic unit connections.
3) Connect connector to hydraulic unit.
4) Install canister.
5) Install air cleaner case.
6) Install air intake duct.
7) Connect ground cable to battery.

CAUTION: Cover relay securely with rubber boot.
