Inspection





INSPECTION

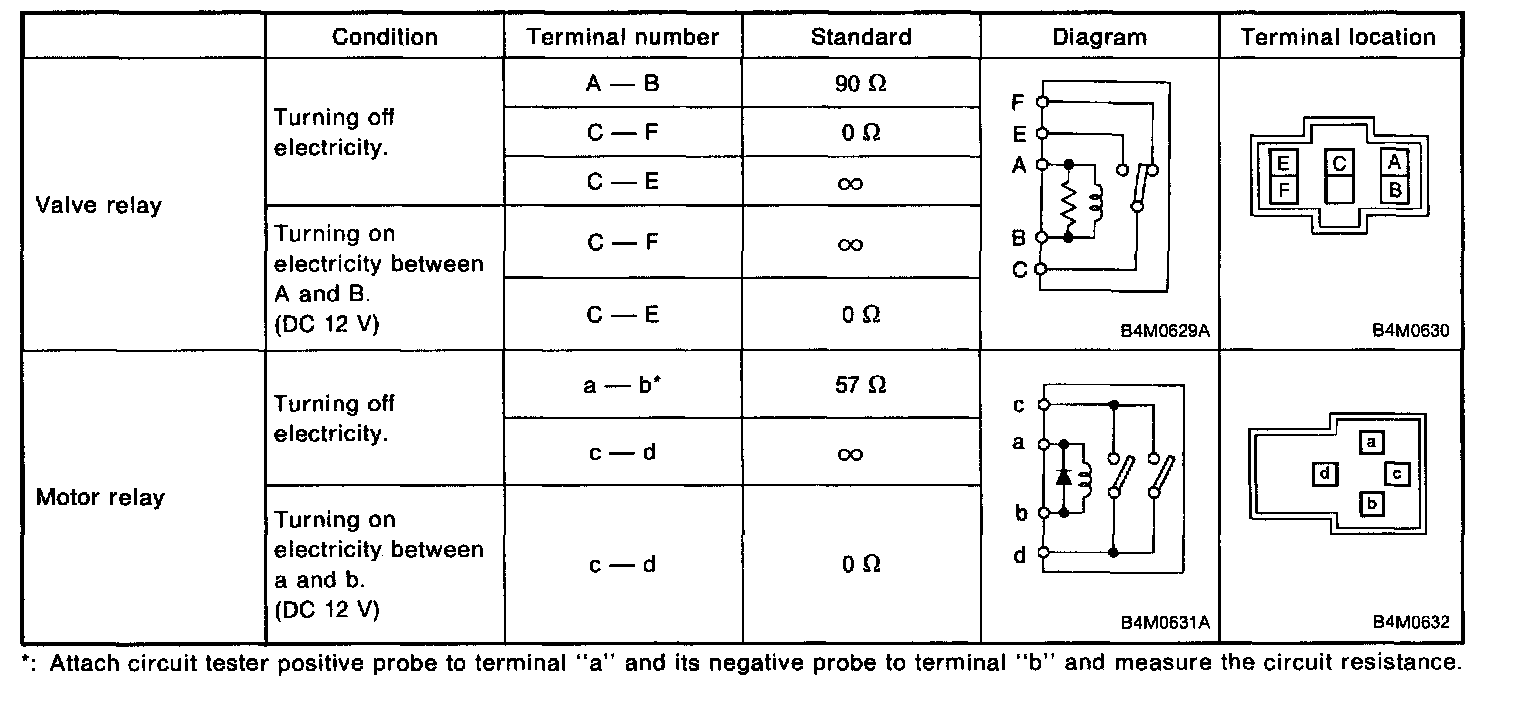

1) Check connected and fixed condition of connector
2) Check for discontinuity or short circuits.
