Brake Shoe: Adjustments

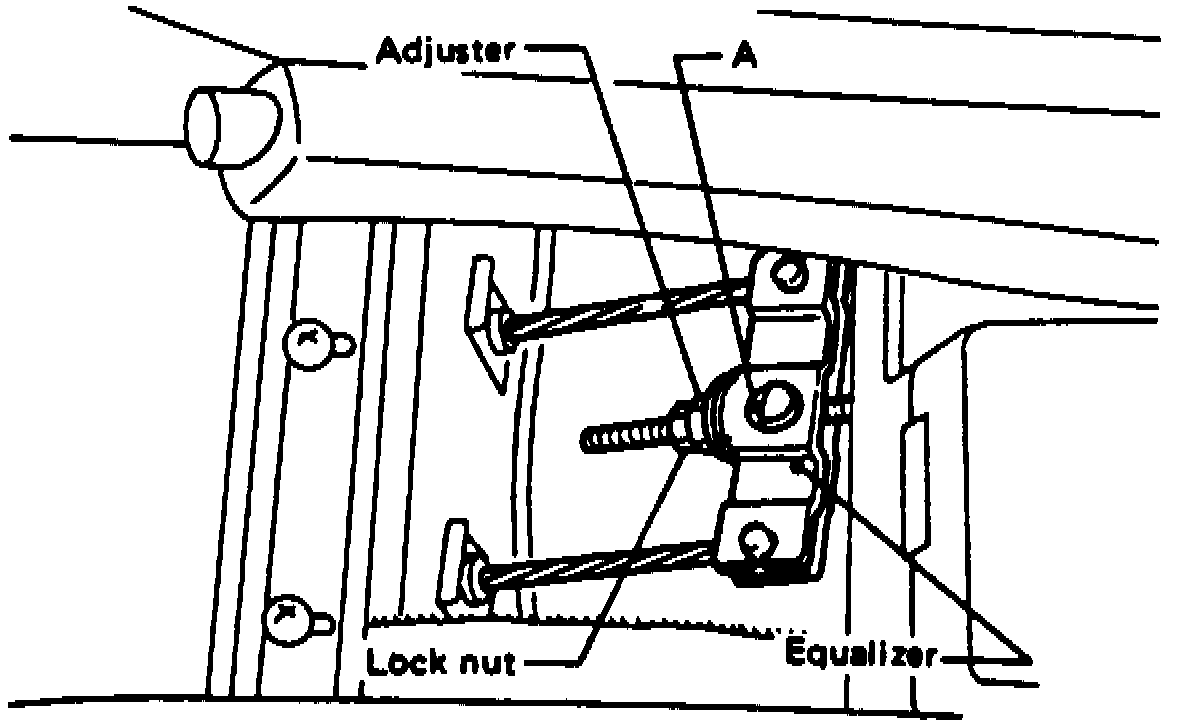

Fig. 7 Brake Adjustment:

Loosen locknut of wedge adjuster and tighten wedge adjuster until wheel can no longer be rotated, then back off adjuster 180° to provide a clearance of 0.004-0.006 inch between brake shoe and drum and retighten adjuster locknut, Fig. 7.
