Rear

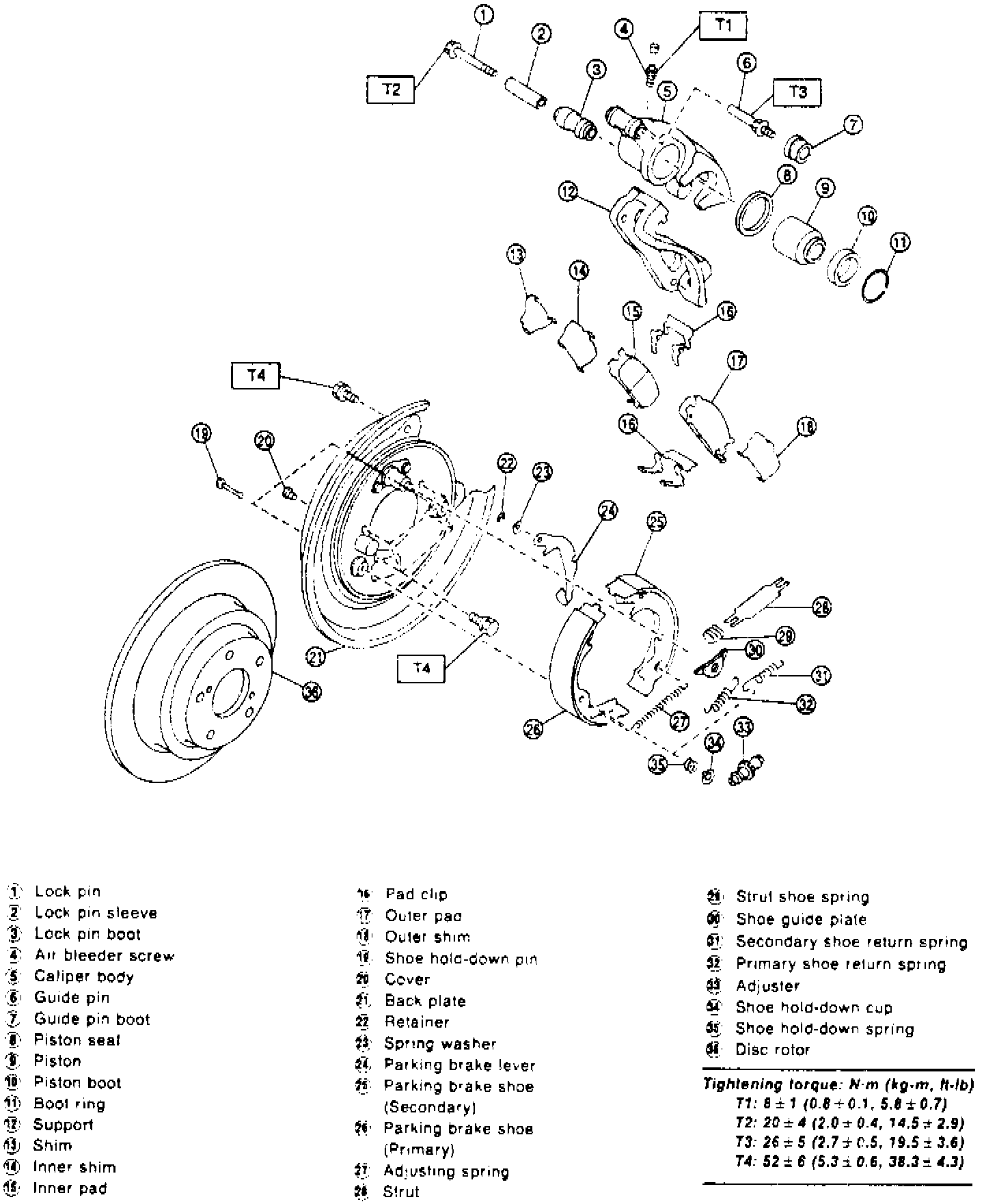

Fig. 10 Rear Disc Brake Assembly:

Refer to Fig. 10, when performing the following procedure.

1. Raise and support vehicle.
2. Remove rear wheels.
3. Remove lower caliper retaining bolt, then pivot caliper upward.
4. Remove brake pads and springs from support. Note position of springs for proper installation.
5. Reverse procedure to install noting the following:
a. Press piston into caliper body using a suitable clamp.
b. Refer to Fig. 10, for tightening values.
c. After completing installation, depress brake pedal several times to seat brake pads against rotor. If pedal stroke is excessive, bleed hydraulic system as needed.
