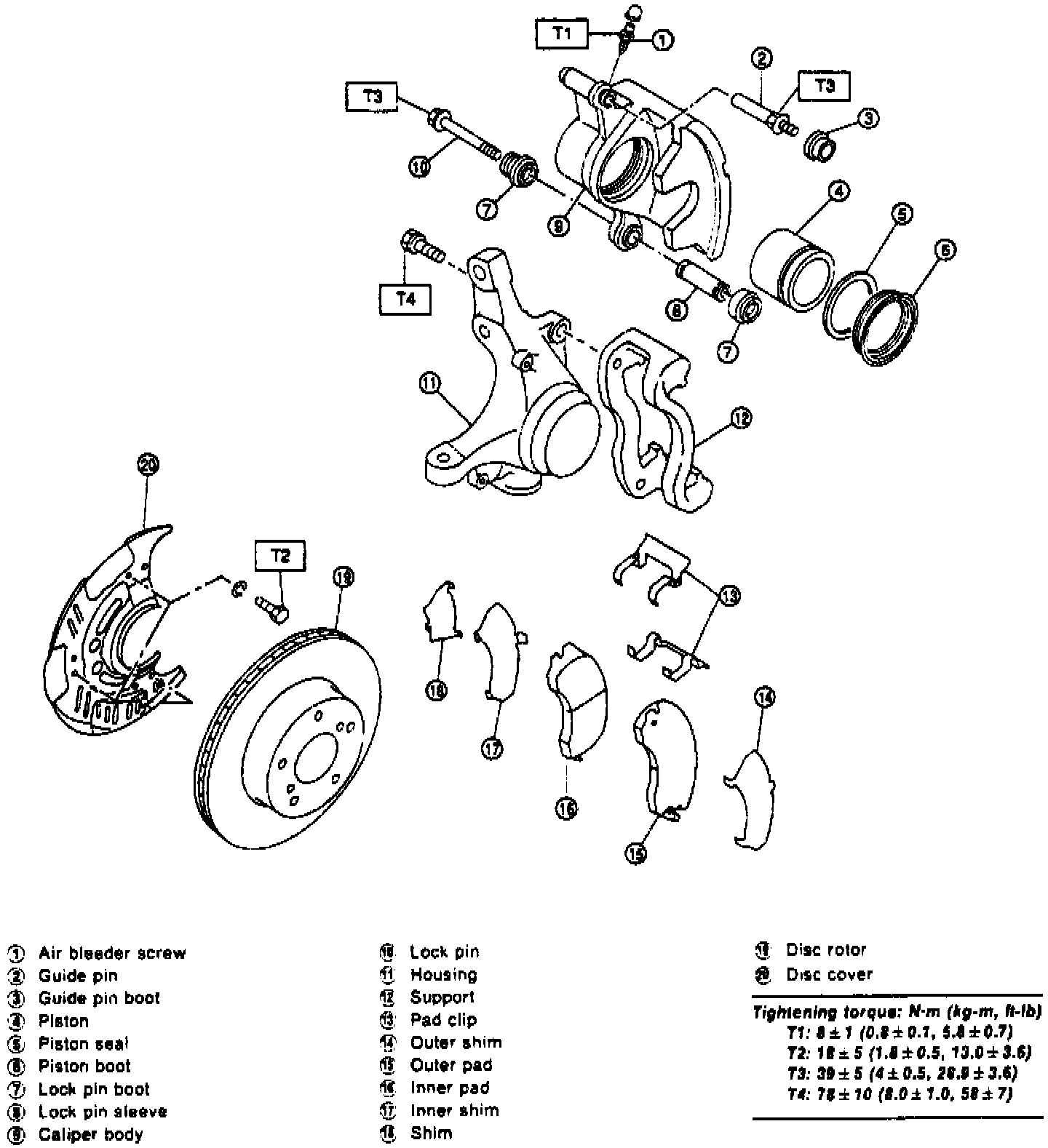

Fig. 3 Exploded View Of Front Disc Brake Assembly:

Refer to Fig. 3 when performing the following procedure.

1. Raise and support vehicle.
2. Remove front wheels.
3. Remove caliper lockpin, then rotate caliper on guide pin.
4. Remove brake pads from support.
5. Reverse procedure to install noting the following:
a. Push piston into caliper body. When piston is difficult to insert, loosen the air bleeder, then push into place.
b. Refer to Fig. 3, for tightening values.
c. After completing installation, depress brake pedal several times to seat brake pads against rotor. If pedal stroke is excessive, bleed hydraulic system as needed.
