ABS With TCS

INSPECTION MODE

The on-board diagnosis system is designed to detect problems while the vehicle is being driven. If a problem is found, the ABS and TCS warning light will illuminate to inform the driver of the occurrence of a problem. When the warning light is on, the ABS/TCS system will be inactive and the normal braking function will work. It is possible for the most recent trouble code and history of problem to be stored in memory until cleared.


TROUBLE CODES

When on-board diagnosis of the ABS/TCS control module detects a problem, the information will be stored in the EEP ROM as a trouble code. (Stored codes will stay in memory until they are cleared.)

CALLING UP A TROUBLE CODE

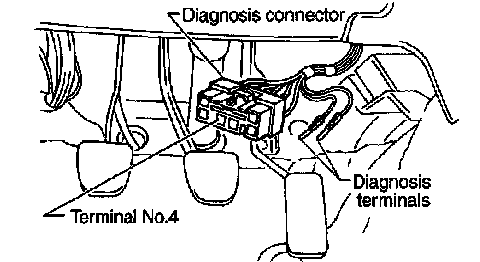

1) Take out diagnosis connector from side of driver's seat heater unit.
2) Turn ignition switch OFF.
3) Connect diagnosis connector terminal No.4 to diagnosis terminal.
4) Turn ignition switch ON.

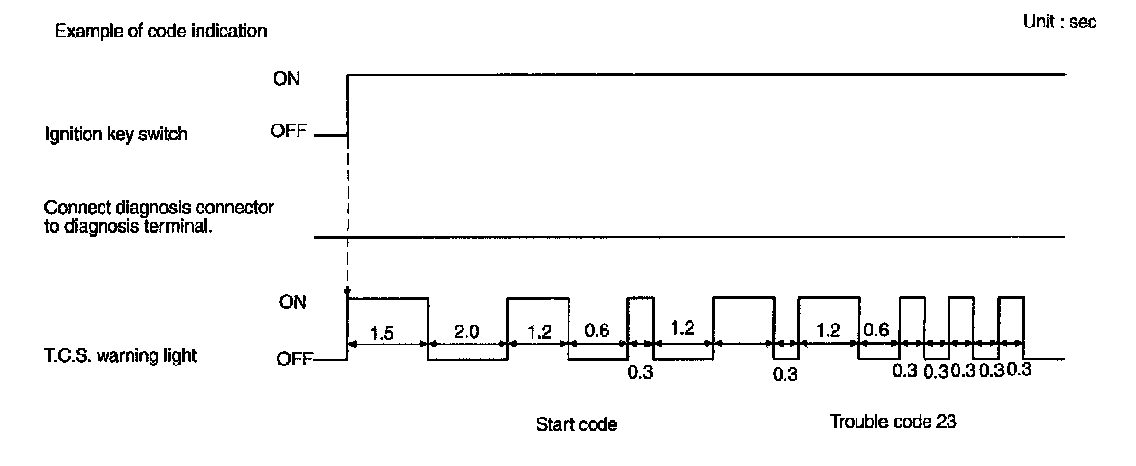

5) TCS warning light is set in the diagnostic mode and blinks to identify trouble code.
6) After the start code (11) is shown, the trouble codes will be shown in order of the last information first.






NOTE:When there are no trouble codes in memory, only the start code (11) is shown.
