P1701

DTC P1701: CRUISE CONTROL SET SIGNAL CIRCUIT MALFUNCTION FOR AUTOMATIC TRANSMISSION (ATCRS)

DTC DETECTING CONDITION:





- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

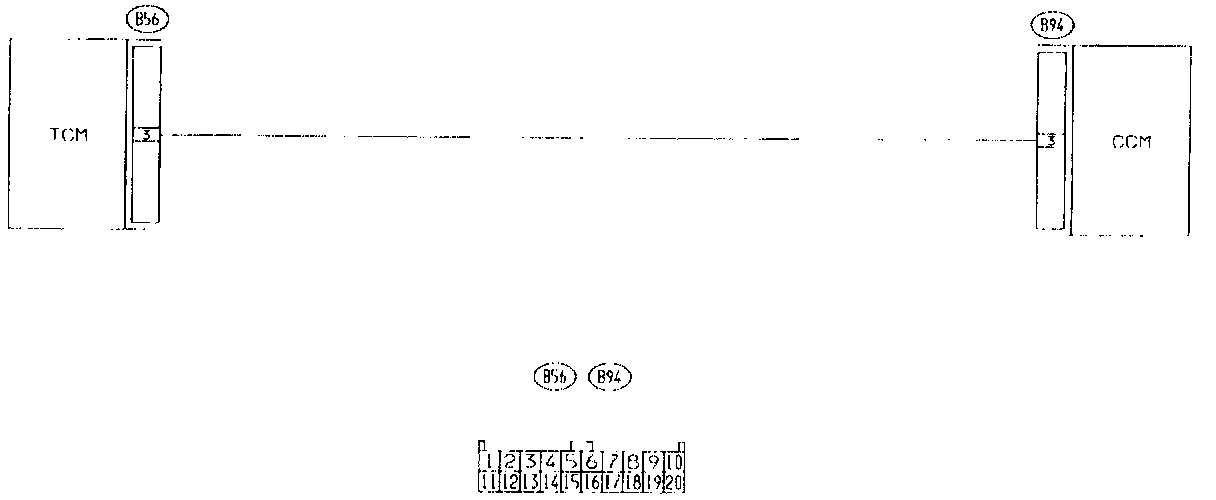

WIRING DIAGRAM:

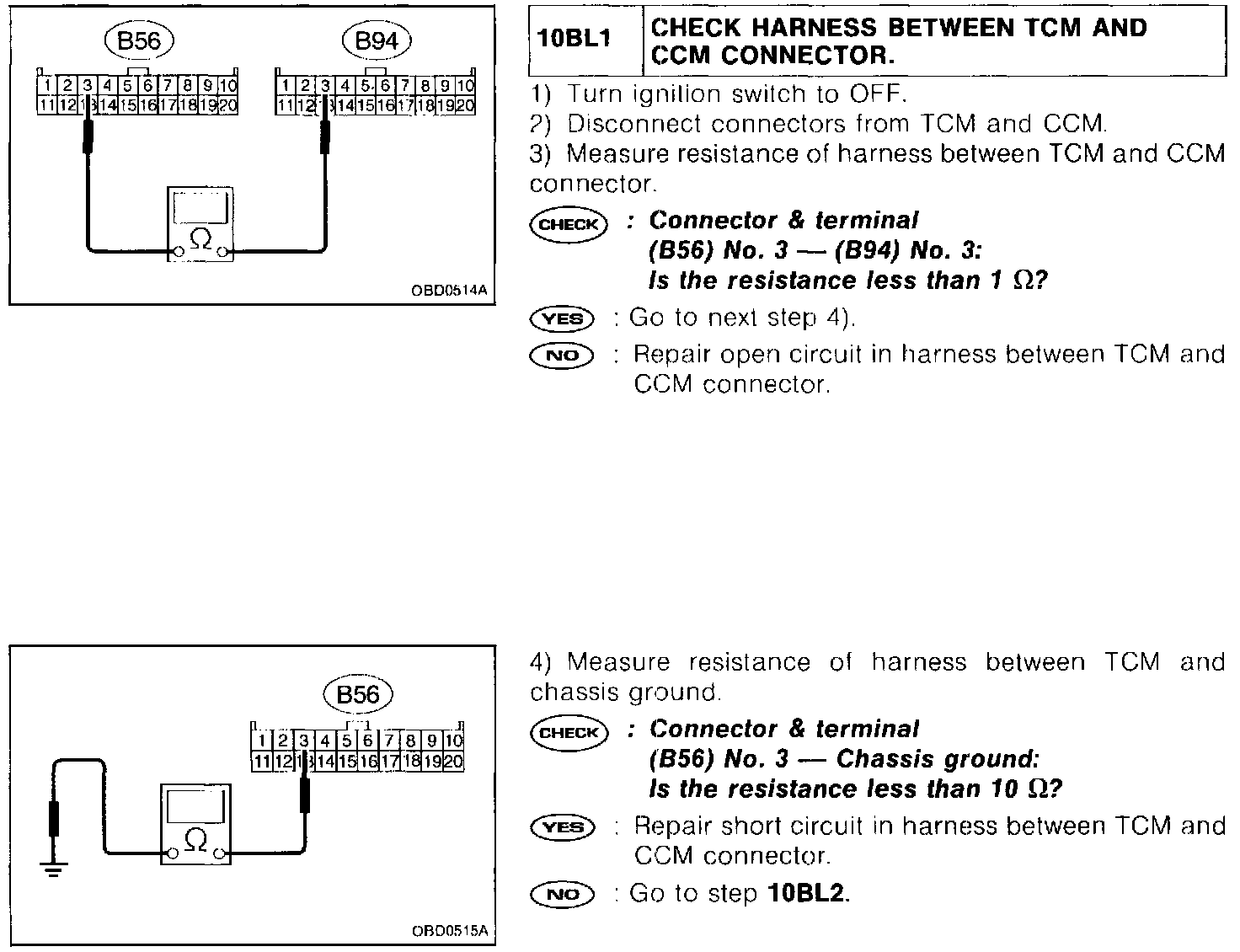

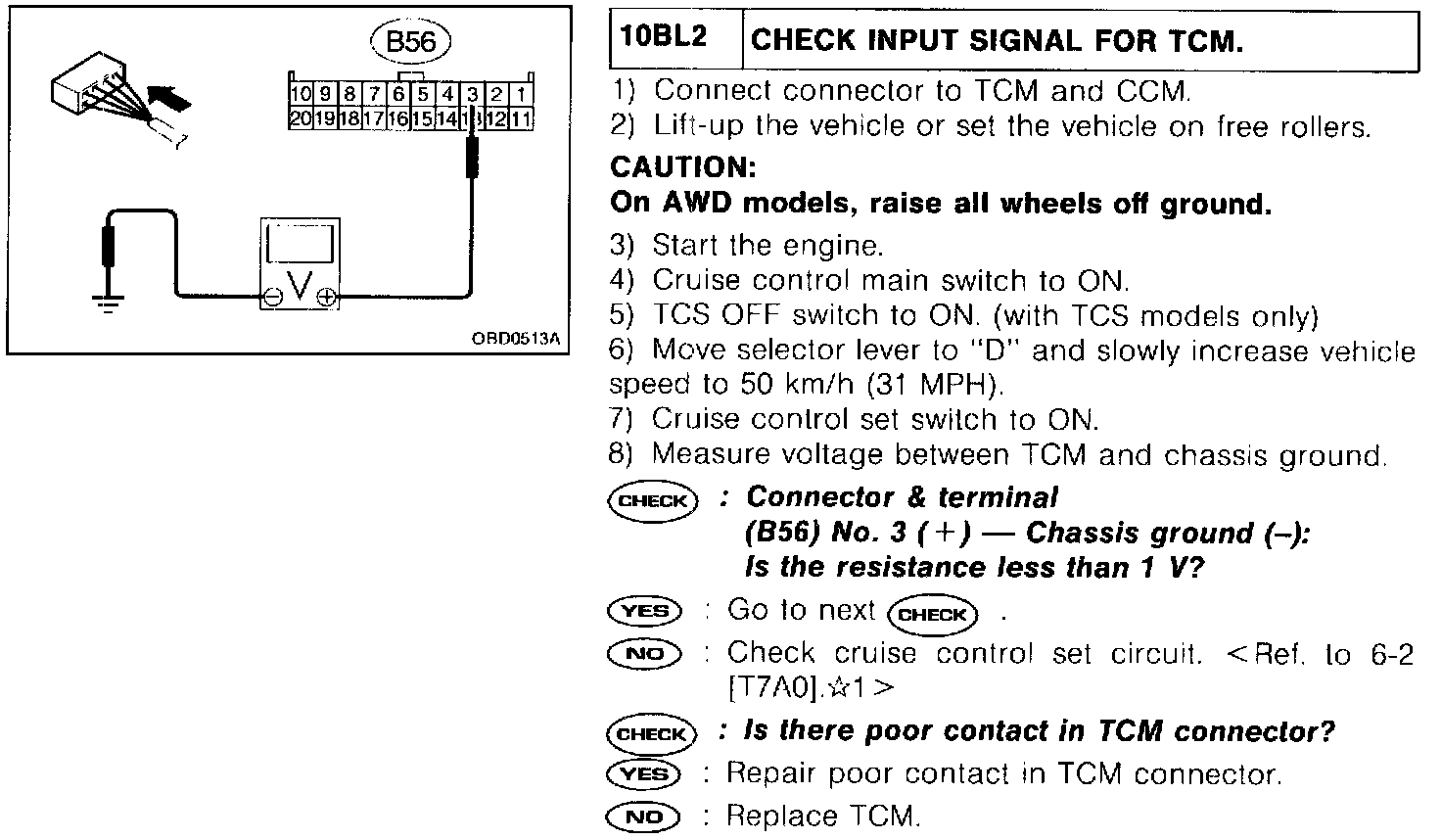

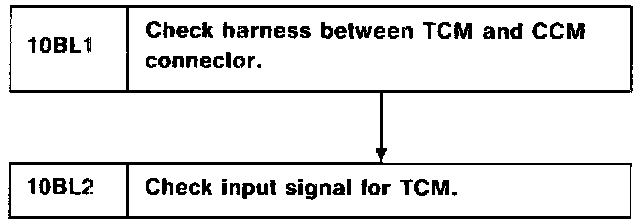

PROCEDURES
