P1700

DTC P1700: THROTTLE POSITION SENSOR CIRCUIT MALFUNCTION FOR AUTOMATIC TRANSMISSION (ATTH)

DTC DETECTING CONDITION:





- Two consecutive trips with fault

TROUBLE SYMPTOM:
- Shift point too high or too low; engine brake not effected in "3" range; excessive shift shock; excessive tight corner "braking"

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

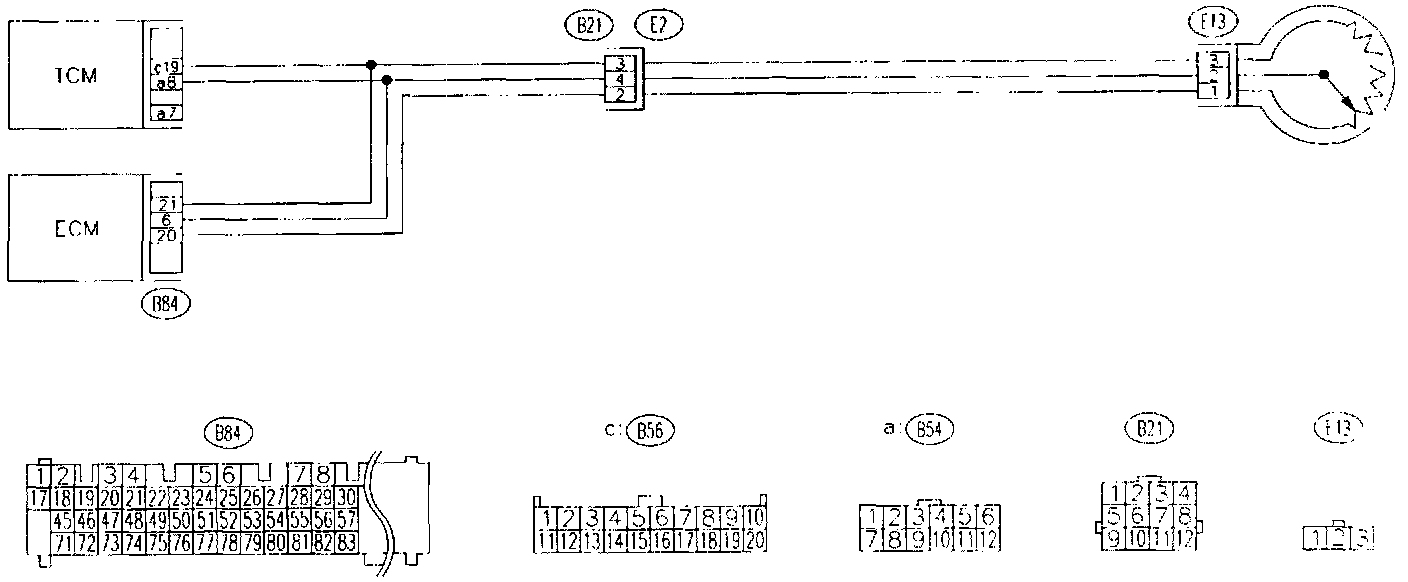

WIRING DIAGRAM

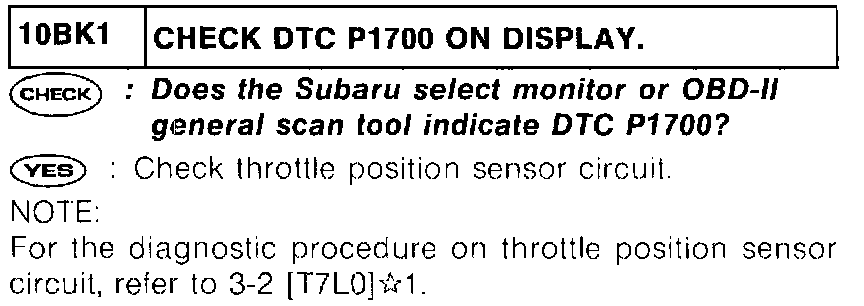

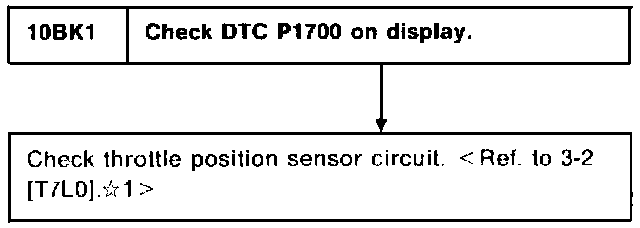

PROCEDURE
